GA5080R
Angle Grinder

Angle Grinder 5" 1,400 W Slide Switch

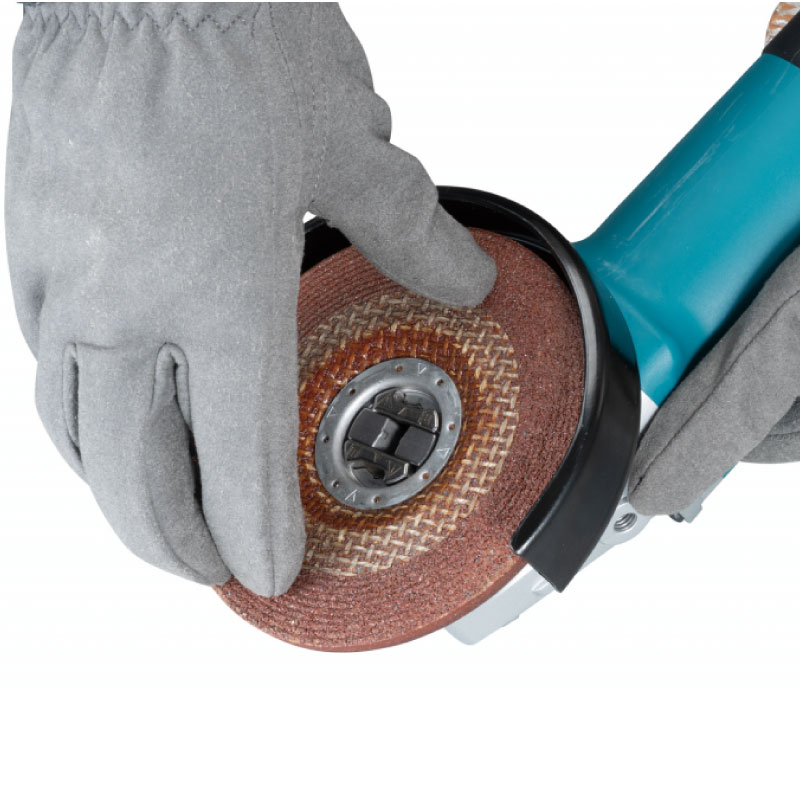

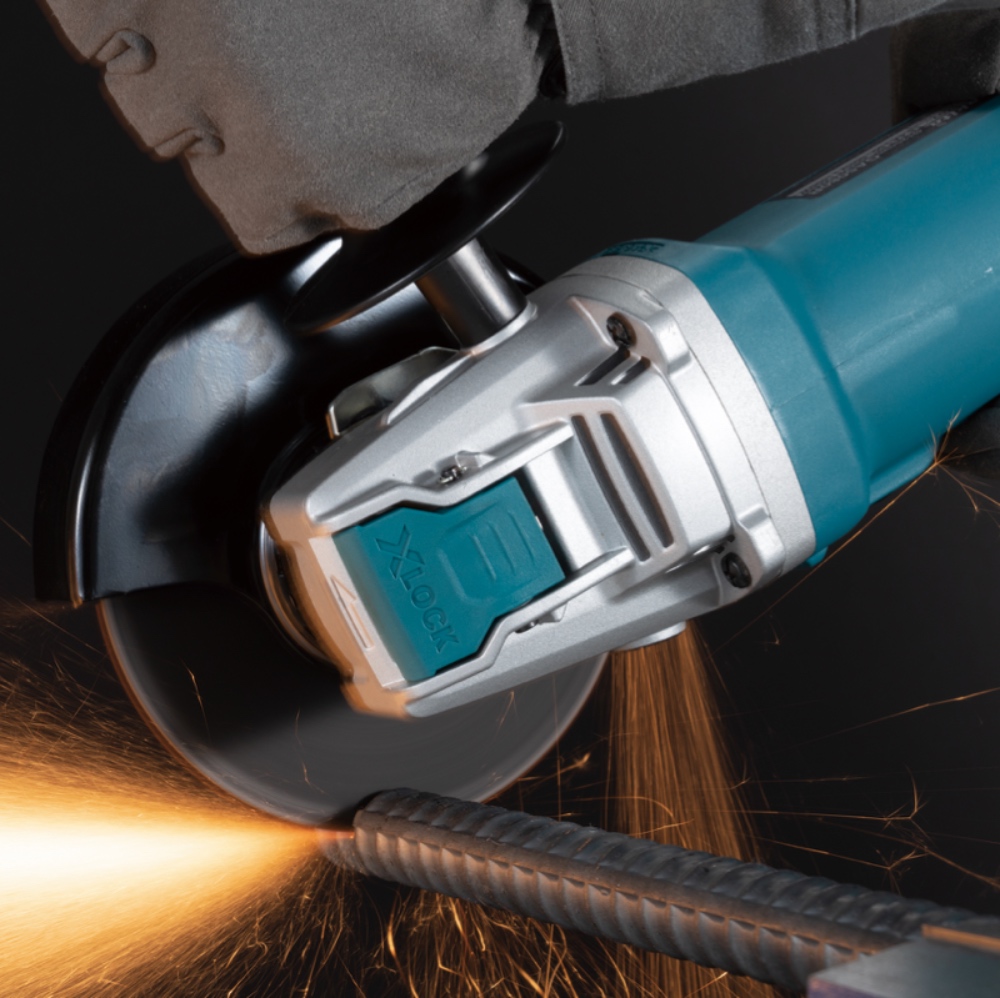

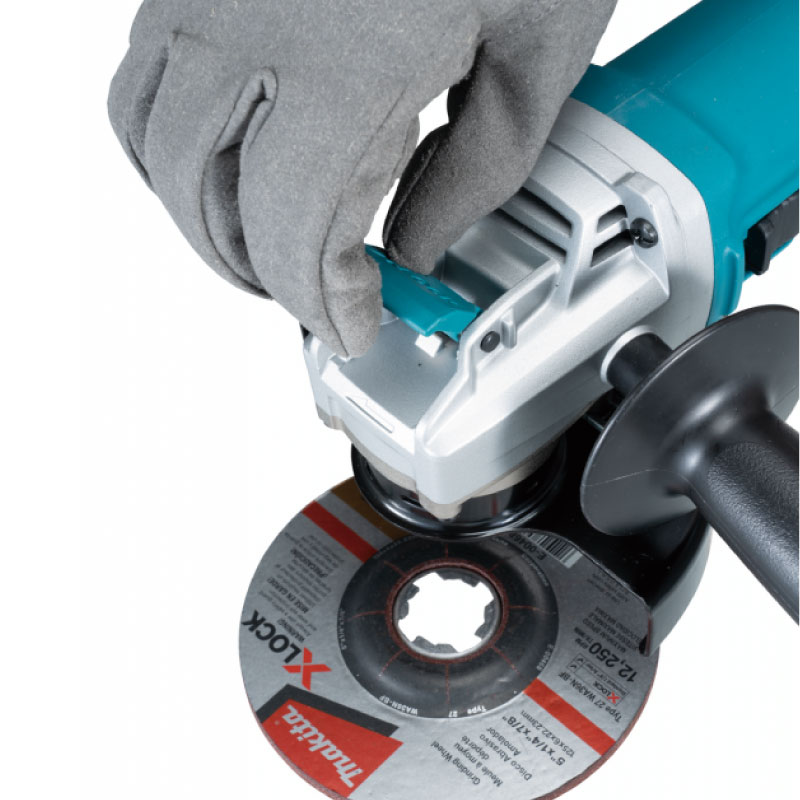

๐ X-LOCK for toolless accessory changes ๐ X-LOCK mechanism enables to install/remove X-LOCK wheels with just a single action without tool; minimizes down-time between wheel changes; minimizes over-tightening and loosening of wheels ๐ X-LOCK wheel can be easily removed simply by pulling up the lever ๐ New toolless wheel cover enables fast and easy angle adjustment and installation/removal of wheel cover ๐ Super Joint System (SJS) mechanical clutch system helps minimize motor and gear damage ๐ Anti-restart function minimizes accidental start-up ๐ High power anti-dust motor in small circumference barrel grip body ๐ Labyrinth construction seals motor and bearings from contamination ๐ Constant speed control maintains constant speed under load ๐ Soft start for smooth start-ups ๐ Connectable to Makita vacuum cleaner with optional dust collecting wheel guard ๐ Push button spindle lock for operator convenience ๐ Wheel cover protects operator from accidental scattering of broken wheel or workpiece with minimal wheel cover movement ๐ Double insulated

Standard Equipments : Depressed center wheel, Side grip, Wheel cover

Technical specifications

Continuous Rating Input	1,400 W
Wheel Diameter	125 mm
No Load Speed	12,000 minˉ¹
Switch Type	Slide Switch
Dimensions (L x W x H)	309 x 141 x 113 mm
Net weight	2.5 - 3.6 kg
Power Supple Cord	2.5 m
Carbon Brush	318

GA5080R Angle Grinder

GA5080R Angle Grinder

Angle Grinder 5" 1,400 W Slide Switch

Technical specifications
