9553B
Angle Grinder

9553B
Angle Grinder

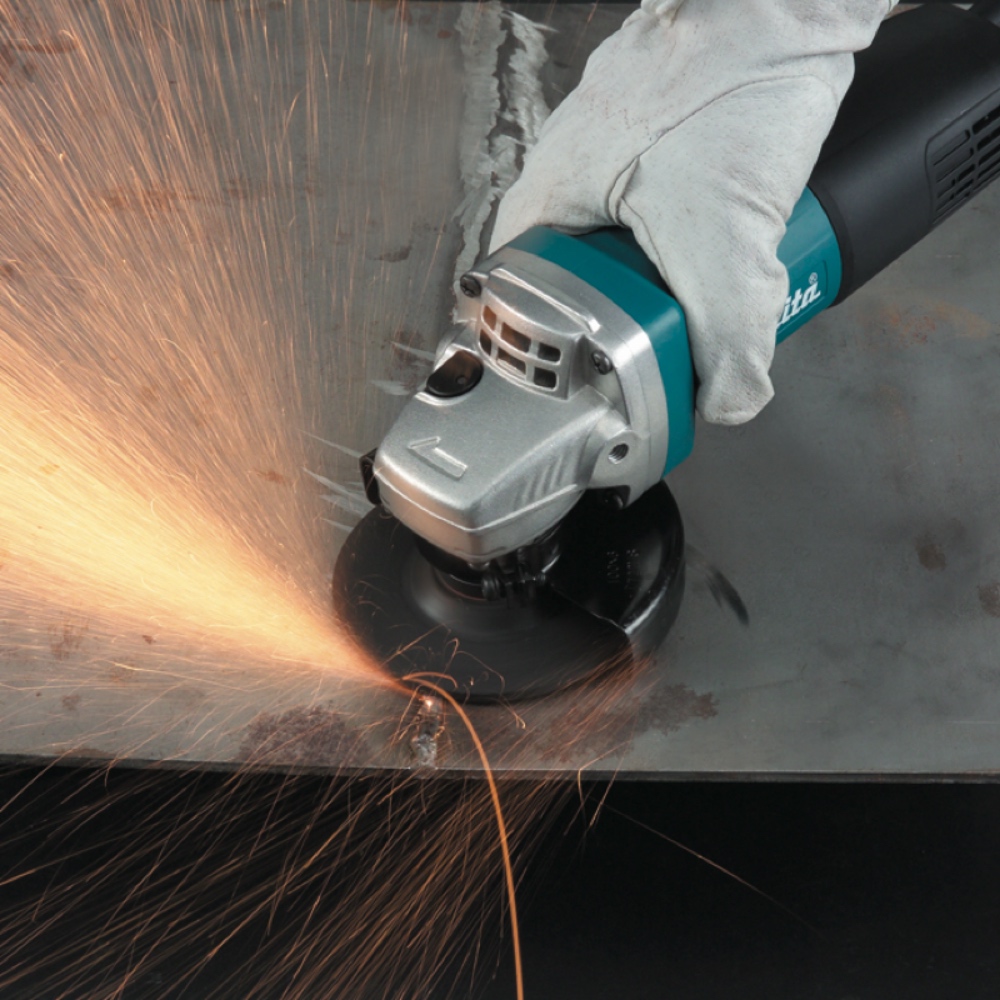

Angle Grinder 4" 710 W Toggle Switch

  

๐ Powerful 710 W motor delivers 11,000 RPM for high output power ๐ Compact design with small diameter barrel and lightweight for added comfort ๐ Protective zig-zag varnish seals the armature from dust and debris for longer tool life ๐ Labyrinth construction seals and protects the drive gear and bearings from contamination for longer tool life ๐ Dust-proof ball bearing on spindle for durability ๐ O rings for protection from grease-leakage ๐ Spiral bevel gears for smoother rotations and a more efficient transfer of energy ๐ Toggle switch for easy operation ๐ Wheel cover protects operator from accidental scattering of broken wheel or workpiece with minimal wheel cover movement ๐ Push button spindle lock for operator convenience ๐ Gear housing can be rotated to suit most cutting and grinding applications ๐ Double insulated

Standard Equipments : Depressed center wheel, Wheel cover, Lock nut wrench


Technical specifications

Continuous Rating Input 710 W
Wheel Diameter 100 mm
No Load Speed 11,000 minˉ¹
Switch Type Toggle Switch
Dimensions (L x W x H) 258 x 118 x 97 mm
Net weight 1.5 - 1.9 kg
Power Supple Cord 2.5 m
Carbon Brush 325
Double Insulation
Dust Collection
