GA9060
Angle Grinder
GA9060
Angle Grinder
Angle Grinder 9" 2,200 W Large Trigger Switch
Features
๐ Developed for heavy duty applications such as foundry grinding
๐ Motor more durable for heavy duty applications
๐ Design of anti layer short of armature
๐ Compact design at only 450mm (17-3/4") long
๐ Switch cover and sponge minimize entering of metal particles to switch terminals to improve the protection against electric leakage
๐ Newly designed side handle provides more comfort and control

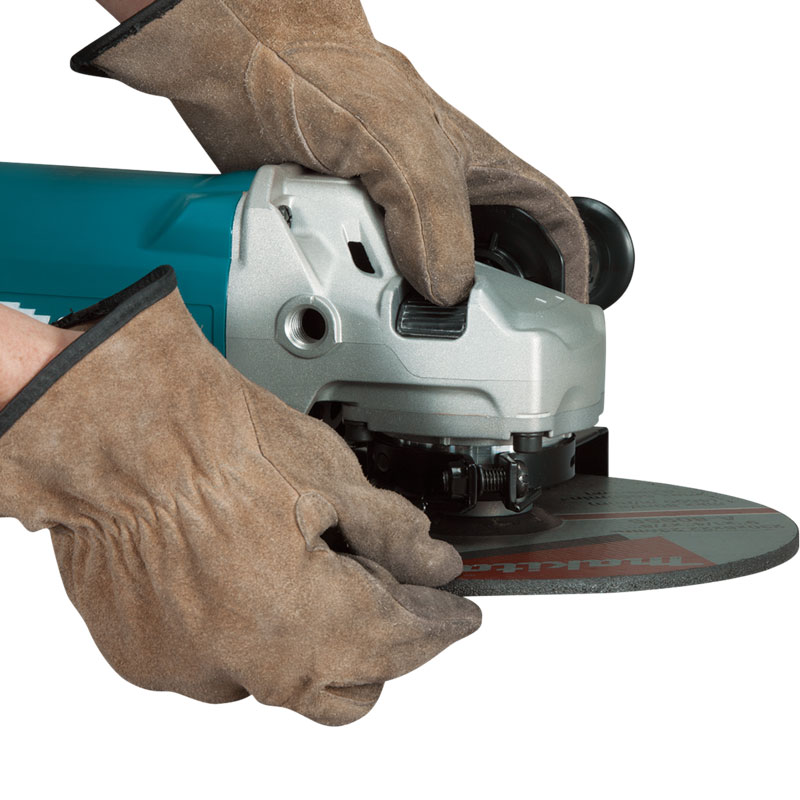

๐ Newly designed shaft lock enables to press the button from a slant angle
๐ Protection of serial No. label with a transparent portion of brush holder cover
๐ Powerful 2,200 W motor delivers 6,600 RPM for the most demanding applications

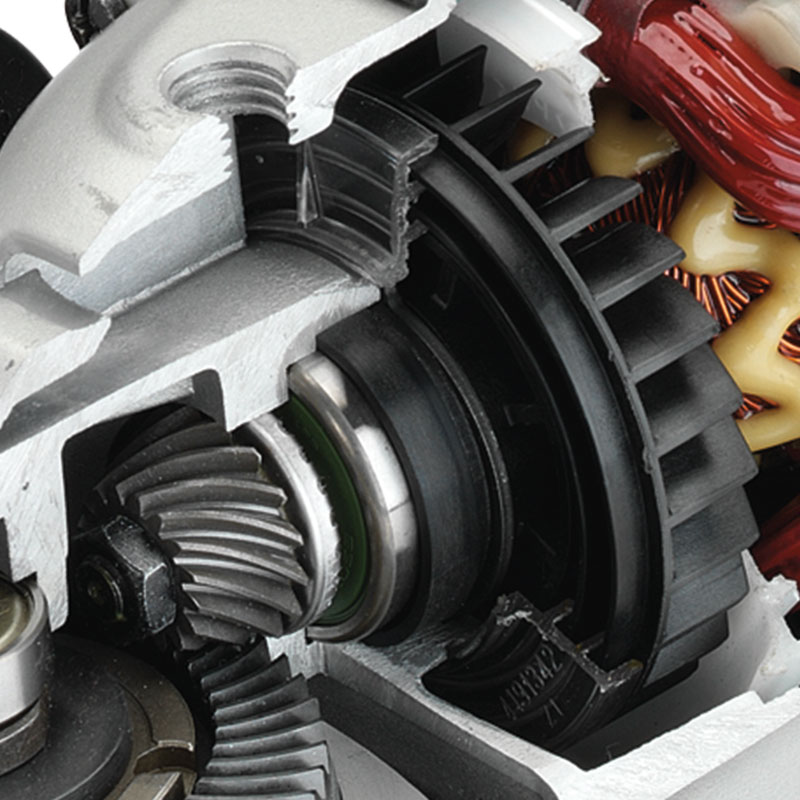

๐ Spiral bevel gears for smoother rotations, quieter gear noise and a more efficient transfer of energy
๐ Three position adjustable side handle for operator covenience
๐ Large trigger switch for easy operation
๐ Wheel cover protects operator from accidental scattering of broken wheel or workpiece with minimal wheel cover movement.
๐ Externally accessible brushes for greater serviceability.
๐ Double insulated for operator safety.
๐ Can be connected to dust extraction system with optional dust-collecting wheel cover.
Standard Equipments : Side grip, Wheel cover, Lock nut wrench
Technical specifications
| Continuous Rating Input | 2,200 W |
|---|---|
| Wheel Diameter | 230 mm |
| No Load Speed | 6,600 minˉ¹ |
| Switch Type | Trigger Switch |
| Dimensions (L x W x H) | 450 x 250 x 144 mm |
| Net weight | 5.5 - 7.86 kg |
| Power Supple Cord | 2.5 m |
| Carbon Brush | 218 |
