(EN / TH)

9500NB Parts List (0.74 MB)

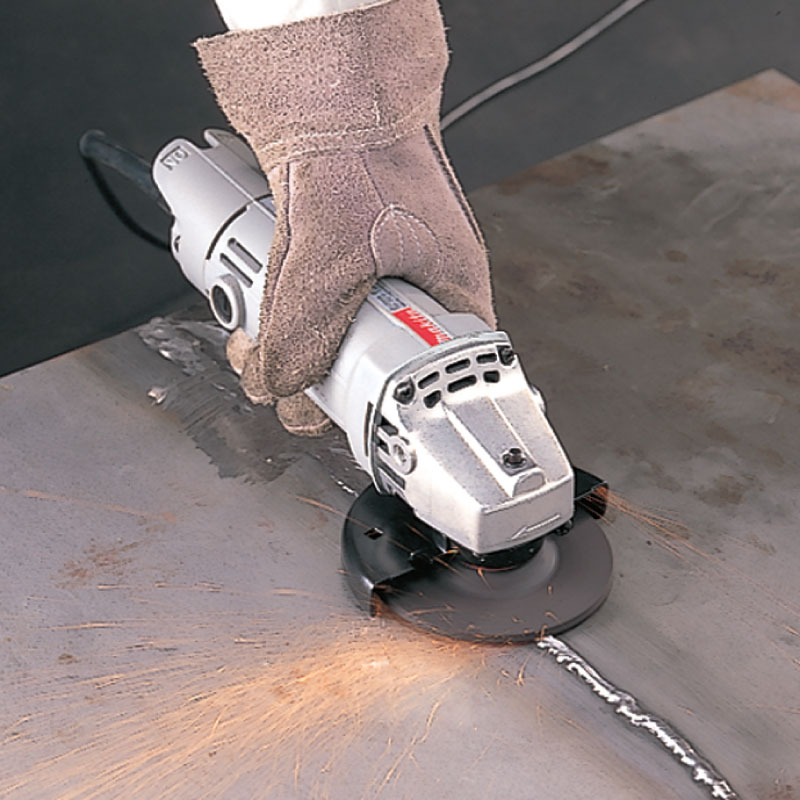

9500NB
Angle Grinder

Angle Grinder 4" 570W Toggle Switch

Double Insulation

Dust Collection

Features

๐ Compact and lightweight body works well in close quarters ๐ 12,000 RPM for fast and efficient work ๐ Toggle switch for easy operation ๐ Can be used with grinding wheel or optional diamond wheel ๐ Connectable to Makita vacuum cleaner with optional dust collecting wheel guard ๐ Optional side handle can be installed on either side of the tool ๐ Wheel cover protects operator from accidental scattering of broken wheel or workpiece with minimal wheel cover movement ๐ Push button spindle lock for operator convenience ๐ Externally accessible carbon brushes for fast and easy replacement ๐ Double insulated

Standard Equipments : Depressed center wheel, Wheel cover, Lock nut wrench

Technical specifications

Continuous Rating Input	570 W
Wheel Diameter	100 mm
No Load Speed	12,000 minˉ¹
Switch Type	toggle Switch
Net weight	1.9 kg
Power Supple Cord	2.5 m
Carbon Brush	411
