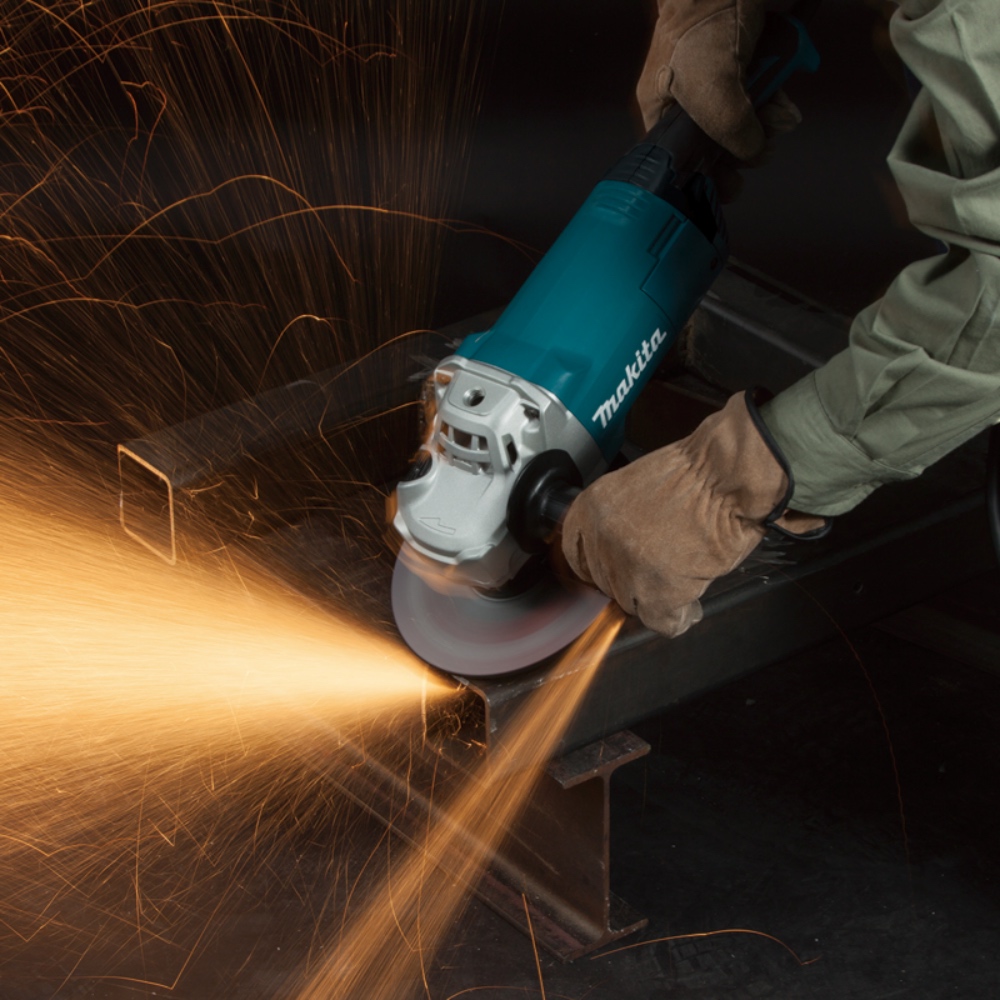

GA7061R
Angle Grinder
GA7061R
Angle Grinder
Angle Grinder 7" 2,200W Large Trigger Switch
Features
๐ Developed for heavy duty applications such as foundry grinding
๐ SJS 2 (Super Joint System 2) provides increased machine durability by absorbing vibration
๐ Motor more durable for heavy duty applications
๐ Design of anti layer short of armature
๐ Rigid, low-absorbent motor housing to reduce water absorption
๐ Adoption of spiral spring type brush holders yet with a compact body
๐ Compact design at only 450mm (17-3/4") long
๐ Lightweight for high production work with less fatigue
๐ Switch cover and sponge minimize entering of metal particles to switch terminals to improve the protection against electric leakage
๐ Newly designed side handle provides more comfort and control
๐ Newly designed shaft lock enables to press the button from a slant angle
๐ Protection of serial No. label with a transparent portion of brush holder cover
๐ Powerful 2,200 W motor delivers 8,500 RPM for the most demanding applications
๐ Anti-restart function minimizes accidental start-up even if the tool is plugged to power source with the switch ON
๐ Soft start minimizes start-up shock and makes the tool start smoothly
๐ Spiral bevel gears for smoother rotations, quieter gear noise and a more efficient transfer of energy
๐ Three position adjustable side handle for operator covenience
๐ Soft grip provides increased comfort on the job
Standard Equipments : Side grip, Wheel cover, Lock nut wrench
Technical specifications
| Continuous Rating Input | 2,200 W |
|---|---|
| Wheel Diameter | 180 mm |
| No Load Speed | 8,500 minˉ¹ |
| Switch Type | Large Trigger Switch |
| Dimensions (L x W x H) | 450 x 200 x 145 mm |
| Net weight | 5.57 - 6.08 kg |
| Power Supple Cord | 2.5 m |
| Carbon Brush | 218 |
