9556HN

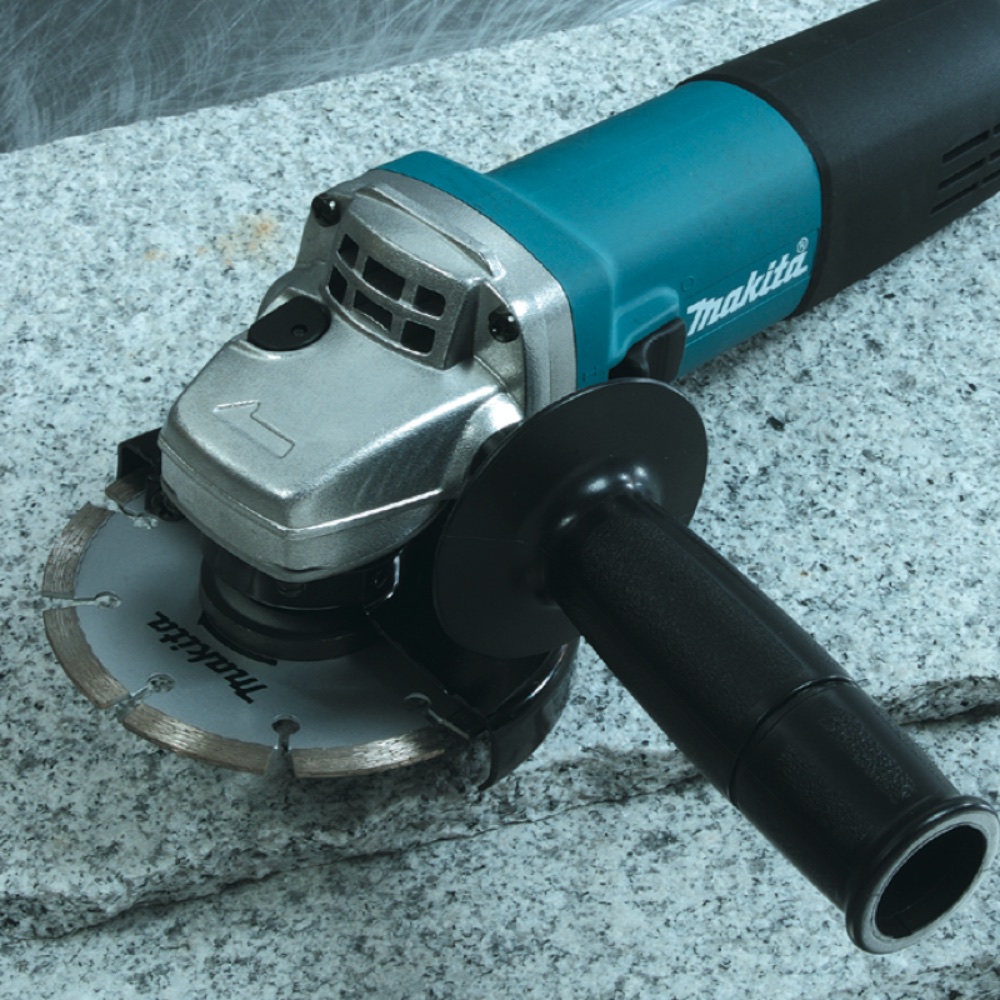

Angle Grinder
9556HN
Angle Grinder
Angle Grinder 4" 840W Slide Switch
Features
๐ Powerful 840 W motor delivers 11,000 RPM for high output power
๐ Compact design with small diameter barrel and lightweight for added comfort
๐ Thicker coil wires are wound more closely to reduce heat and energy loss
๐ Labyrinth construction seals and protects the drive gear and bearings from contamination for longer tool life
๐ Dust-proof ball bearing on spindle for durability
๐ O rings for protection from grease-leakage
๐ Spiral bevel gears for smoother rotations and a more efficient transfer of energy
๐ Slide switch with lock-on for continuous use
๐ Switch lever conveniently located for one hand operation
๐ Side grip can be positioned on both sides for operator convenience
๐ Wheel cover protects operator from accidental scattering of broken wheel or workpiece with minimal wheel cover movement
๐ Push button spindle lock for operator convenience
๐ Gear housing can be rotated to suit most cutting and grinding applications
๐ Can be connected to dust extraction system with optional dust collecting wheel guard
๐ Double insulated
Standard Equipments: Grip complete, Lock nut wrench, GRINDING WHEEL
Technical specifications
| Continuous Rating Input | 840 W |
|---|---|
| Wheel Diameter | 100 mm |
| No Load Speed | 11,000 minˉ¹ |
| Switch Type | Slide Switch |
| Dimensions (L x W x H) | 271 x 118 x 97 mm |
| Net weight | 1.6 - 2 kg |
| Power Supple Cord | 2.5 m |
| Carbon Brush | 325 |
