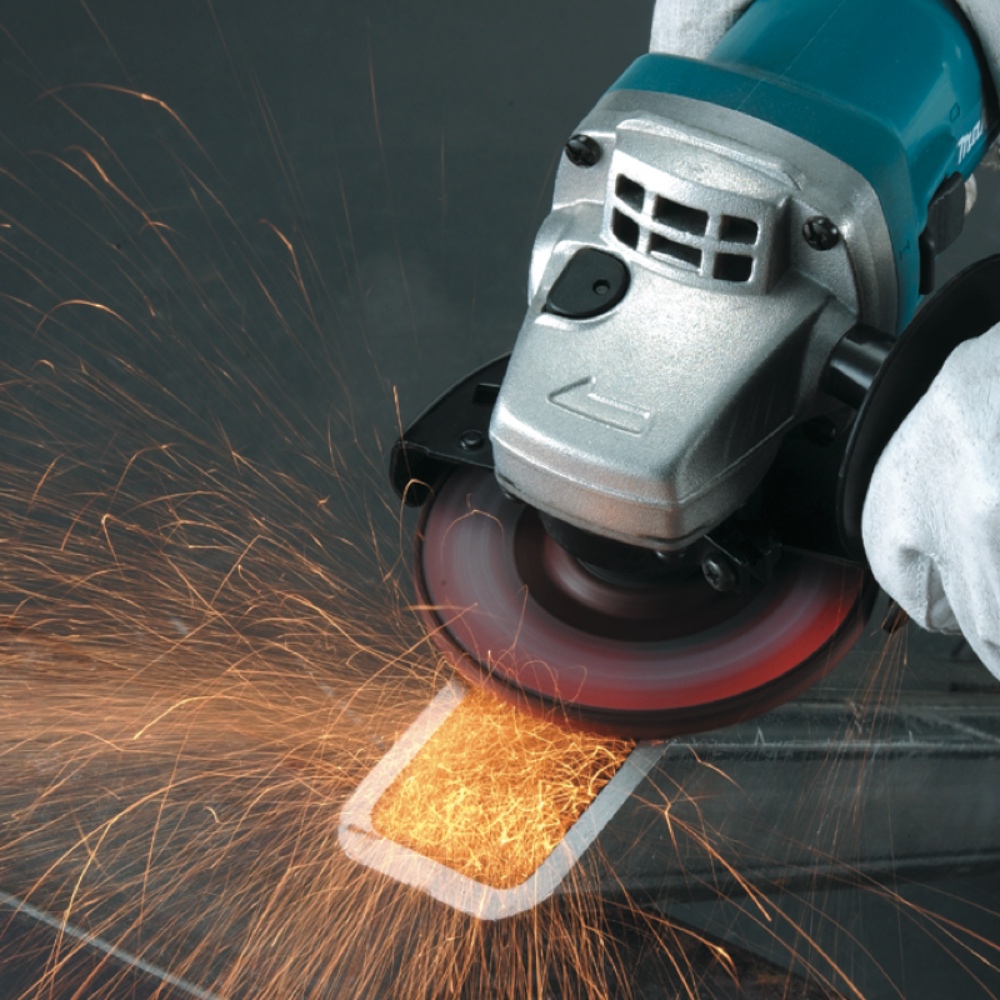

9558HN
Angle Grinder
9558HN
Angle Grinder
Angle Grinder 5" 840W Slide Switch
Features
๐ Reliable machined gears provide twice or more longer service life
๐ Powerful 840 W motor delivers 11,000 RPM for high output power
๐ Compact design with small diameter barrel and lightweight for added comfort
๐ Protective zig-zag varnish seals the armature from dust and debris for longer tool life
๐ Labyrinth construction seals and protects the drive gear and bearings from contamination for longer tool life
๐ Thicker coil wires are wound more closely to reduce heat and energy loss
๐ All-ball bearing design and metal gear housing for durability
๐ Slide switch with lock-on for continuous use
๐ Side grip can be positioned on both sides for operator convenience
๐ Push button spindle lock for operator convenience
๐ Gear housing can be rotated to suit most cutting and grinding applications
๐ O rings for protection from grease-leakage
๐ Switch lever conveniently located for one hand operation
๐ Can be connected to dust extraction system with optional dust collecting wheel guard
๐ Wheel cover protects operator from accidental scattering of broken wheel or workpiece with minimal wheel cover movement
๐ Double insulated
Standard Equipments : Side grip, Wheel cover, Lock nut wrench
Technical specifications
| Continuous Rating Input | 840 W |
|---|---|
| Wheel Diameter | 125 mm |
| No Load Speed | 11,000 minˉ¹ |
| Switch Type | Slide Switch |
| Dimensions (L x W x H) | 271 x 139 x 106 mm |
| Net weight | 1.7 - 3 kg |
| Power Supple Cord | 2.5 m |
| Carbon Brush | 325 |
