GA7060R
Angle Grinder
GA7060R
Angle Grinder

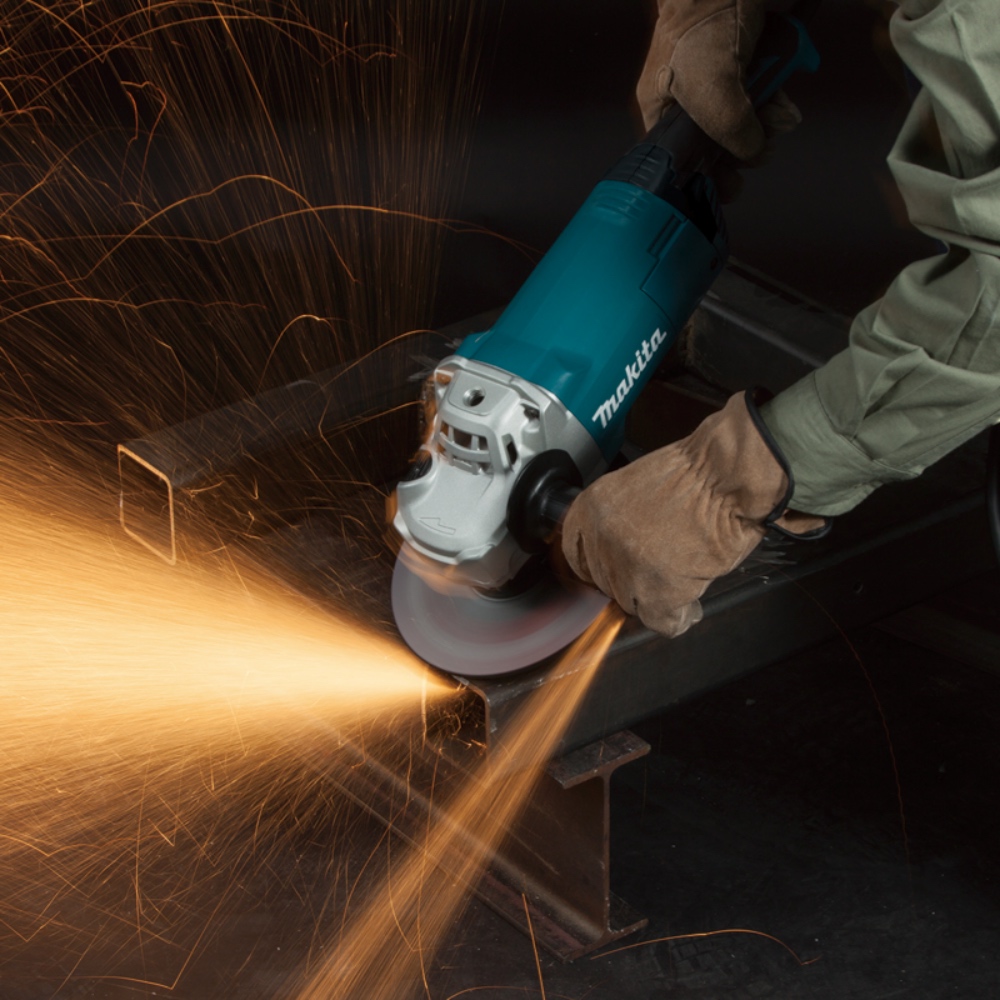

Angle Grinder 7" 2,200 W Large Trigger Switch
๐ Developed for heavy duty applications such as foundry grinding ๐ Motor more durable for heavy duty applications ๐ Design of anti layer short of armature ๐ Rigid, low-absorbent motor housing to reduce water absorption ๐ Adoption of spiral spring type brush holders yet with a compact body ๐ Compact design at only 450mm (17-3/4") long ๐ Lightweight for high production work with less fatigue ๐ Switch cover and sponge minimize entering of metal particles to switch terminals to improve the protection against electric leakage ๐ Newly designed side handle provides more comfort and control ๐ Newly designed shaft lock enables to press the button from a slant angle ๐ Protection of serial No. label with a transparent portion of brush holder cover ๐ Powerful 2,200 W motor delivers 8,500 RPM for the most demanding applications ๐ Anti-restart function minimizes accidental start-up even if the tool is plugged to power source with the switch ON ๐ Soft start minimizes start-up shock and makes the tool start smoothly ๐ Spiral bevel gears for smoother rotations, quieter gear noise and a more efficient transfer of energy ๐ Three position adjustable side handle for operator covenience ๐ Soft grip provides increased comfort on the job ๐ Large trigger switch for easy operation
Standard Equipments : Side grip, Wheel cover, Lock nut wrench
Technical specifications
| Continuous Rating Input | 2,200 W |
|---|---|
| Wheel Diameter | 180 mm |
| No Load Speed | 8,500 minˉ¹ |
| Switch Type | Large Trigger Switch |
| Dimensions (L x W x H) | 450 x 200 x 144 mm |
| Net weight | 5.42 - 5.93 kg |
| Abrasive Paper Size | 2.5 mm |
| Abrasive Paper Size | 218 mm |
