GA5091
Angle Grinder

Angle Grinder 5" 1,900 W Slide Switch

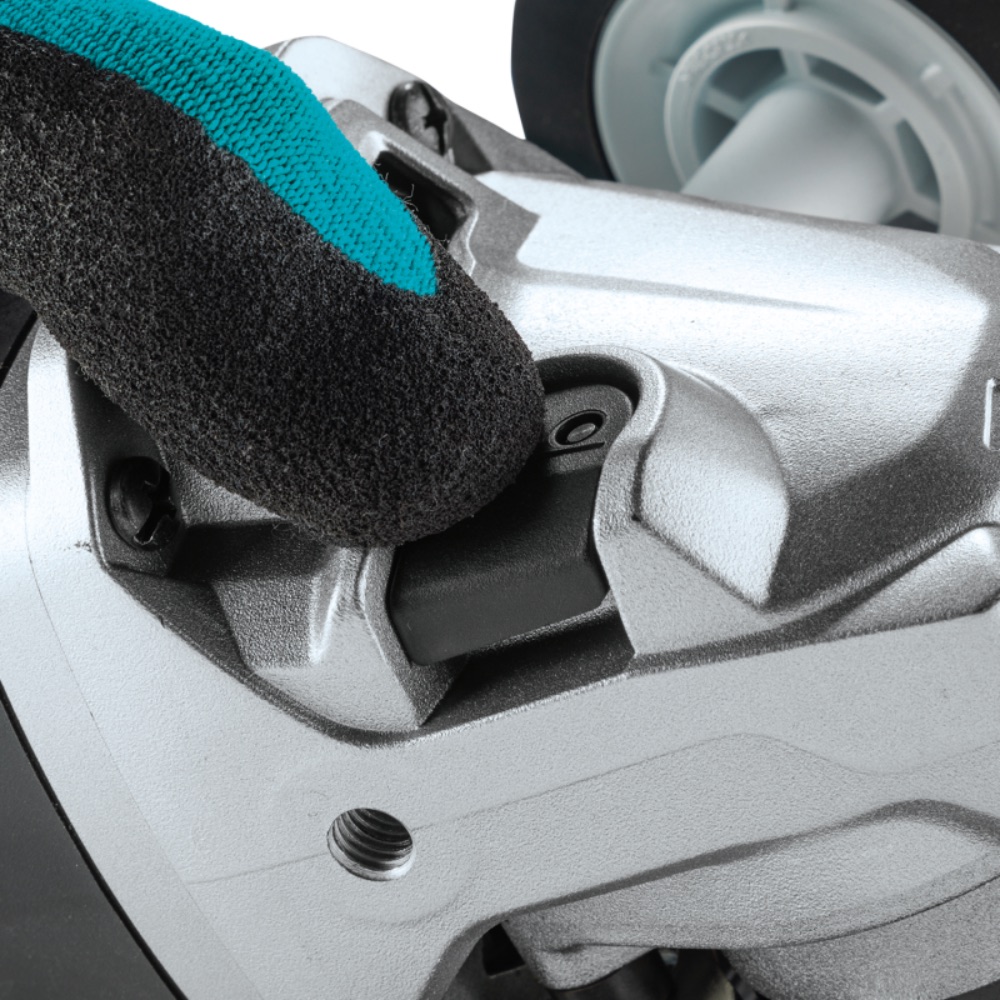

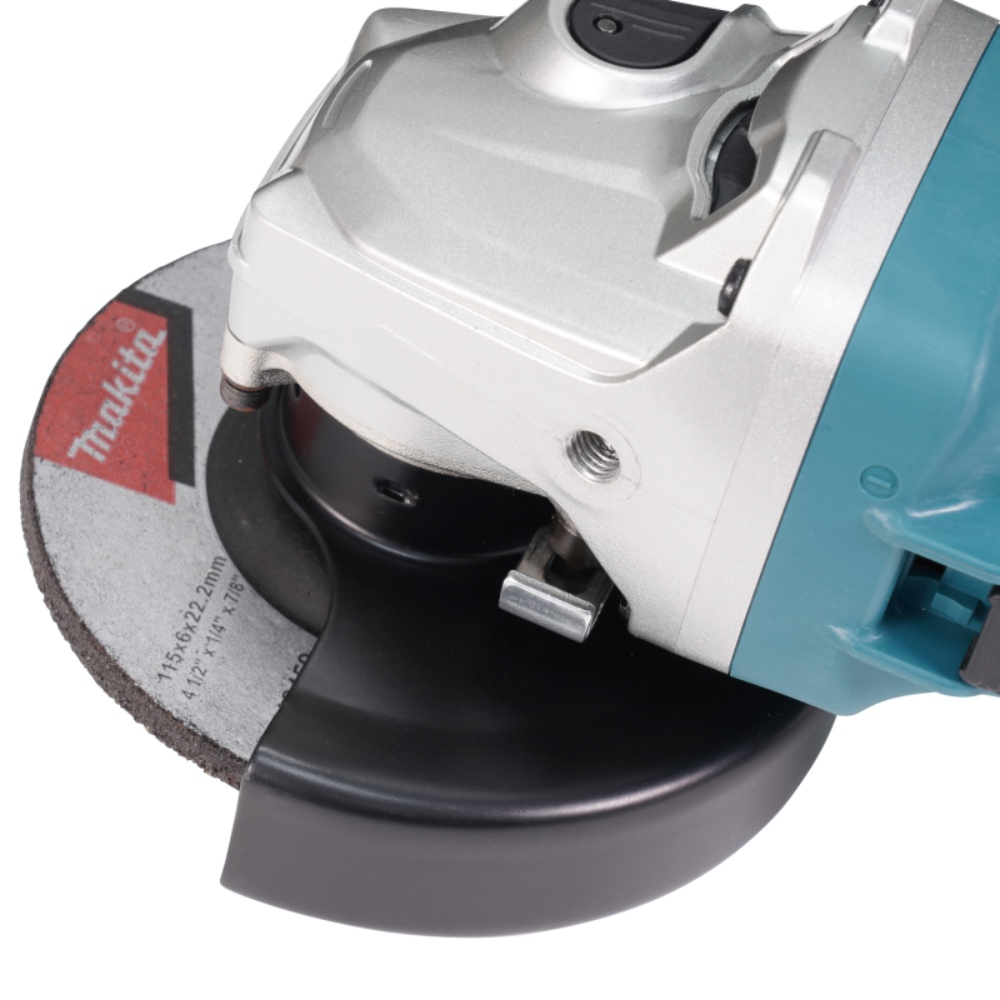

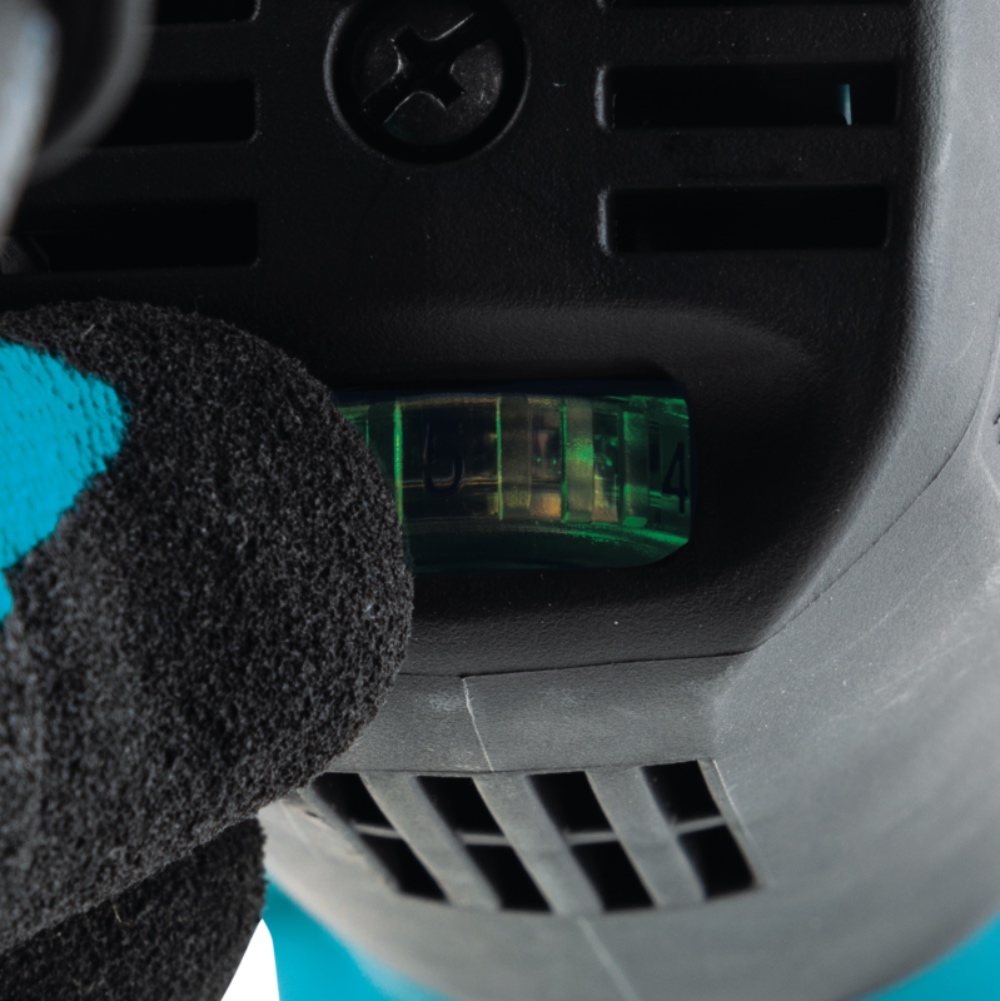

๐ Improved power consumption and durability, and are equipped with AFT (Active Feedback sensing Technology) for kickback reduction ๐ Easy-to-hold barrel grip housing ๐ Improved cooling performance provides both easy-to-hold small diameter housing and less heat generation of the housing ๐ Continuous rating input: 1900 W ๐ Compared with the current models, continuous rating input has been drastically increased due to the following two measures: • Heat generation in armature reduced by using high grade steel sheet, ∙ the material composition of which has been changed, ∙ the thickness of which has been reduced from 0.5 mm to 0.35 mm • Cooling performance improved by: ∙ Repositioned electrical parts ∙ Redesigned vent shapes ∙ Added diffuser ๐ AFT (Active Feedback sensing Technology) for kickback reduction automatically shuts off the power supply to motor in the case of a sudden drastic decrease in wheel speed ๐ Toolless wheel cover with Slide style lever ๐ Bevel can be adjusted and removed by sliding the lever ๐ Variable speed control dial enables user to match the speed to the application ๐ SJS II (Super Joint System II) for effective vibration absorption ๐ Soft start suppresses start-up reaction for smooth start-ups and longer gear life ๐ Constant speed control automatically applies additional power to the motor to maintain speed under load ๐ Electronic current limiter helps protect the motor from overload ๐ Anti-restart function minimizes accidental start-up ๐ Slide switch with lock-on setting for continuous use ๐ Double insulated

Standard Equipments : Depressed center wheel, Side grip, Wheel cover, Lock nut wrench, Lock nut, Inner flange, Cutting wheel cover attachment or Wheel cover for cut-off wheel (country-specific)

Technical specifications

Continuous Rating Input	1,900 W
Wheel Diameter	125 mm
No Load Speed	2,800-11,500 minˉ¹
Switch Type	Slide Switch
Dimensions (L x W x H)	349 x 140 x 129 mm
Net weight	2.8 - 4.0 kg
Power Supple Cord	2.5 m
Carbon Brush	264
