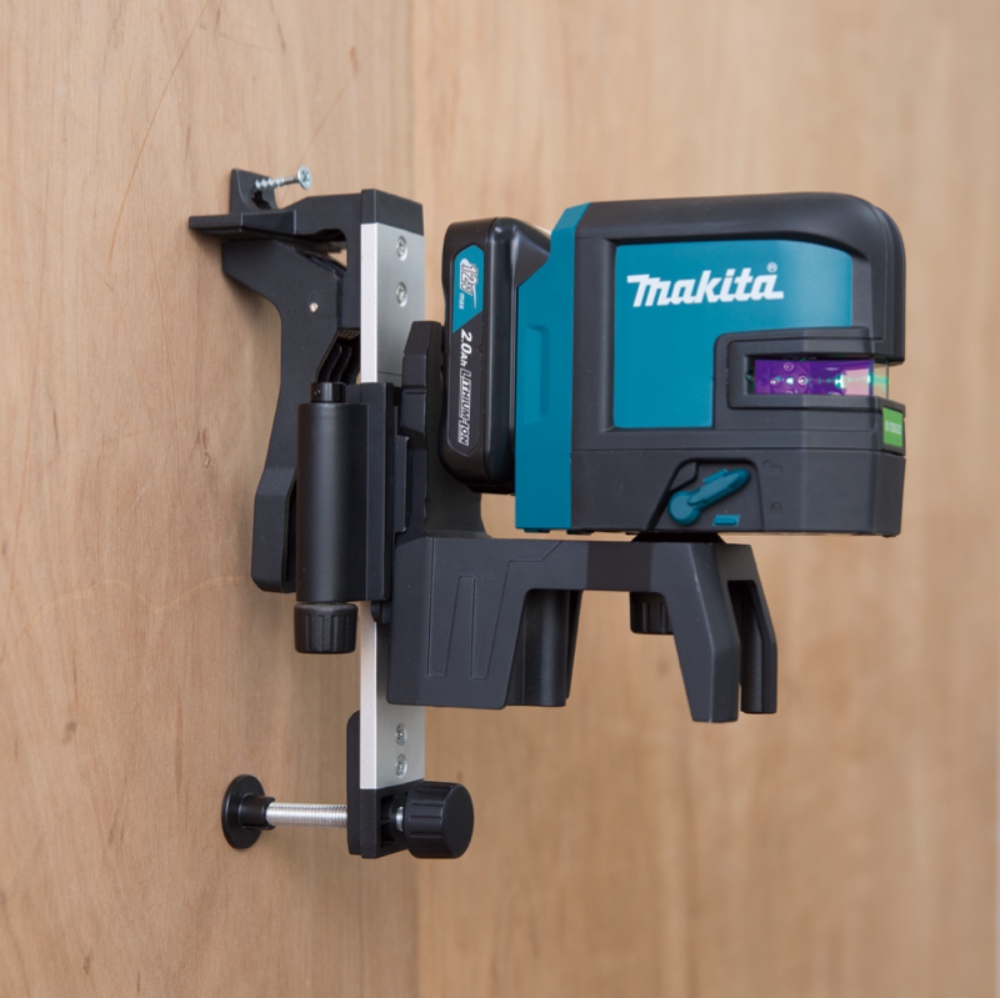

SK106GD
Rechargeable Cross Line Laser
12V Max Rechargeable Green Cross Line Laser
Other Products

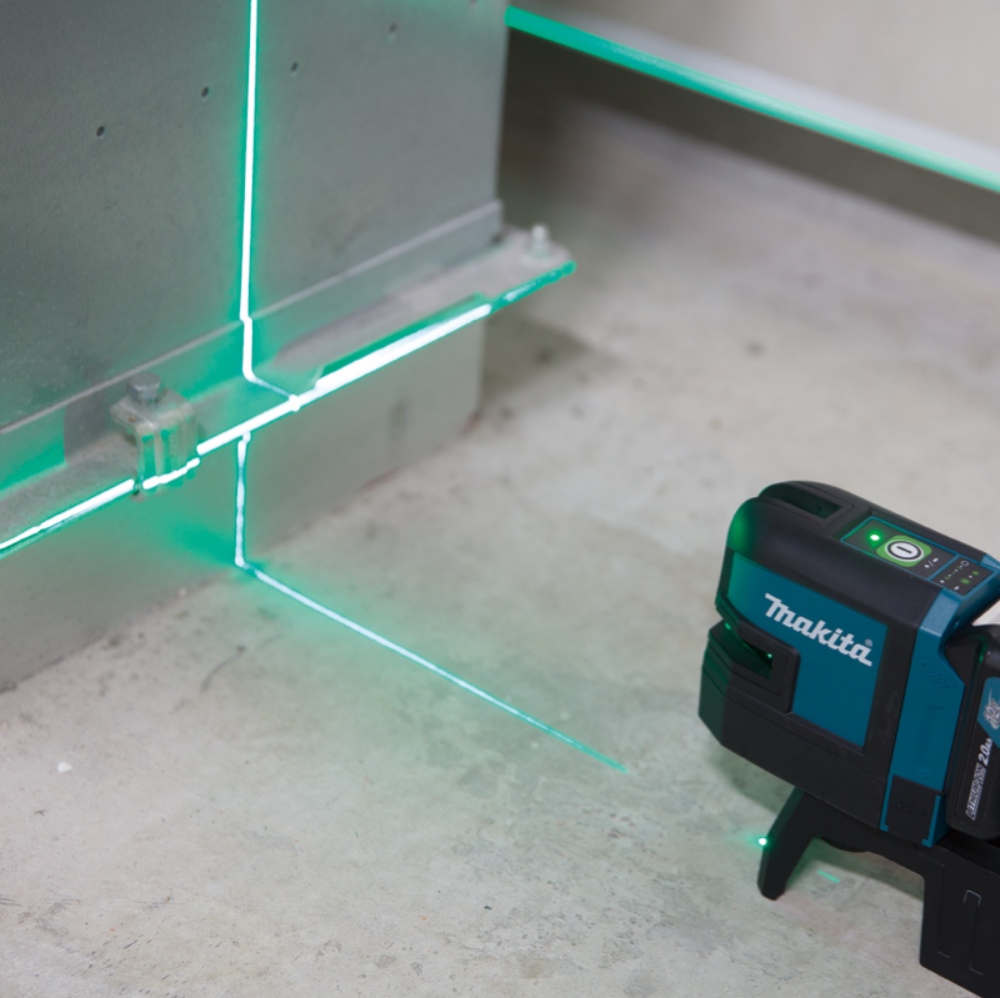

๐ External Power Supply Jack for LXT Battery Use ๐ High brightness green laser for increased visibility at bright site ๐ Up to 20 hours of continuous illumination in high visibility mode with BL1041B ๐ Line visibility range up to 35 m / 80 m (with Receiver) ๐ Pendulum lock enables slope incline applications for increased versatility; Offers added protection of laser diode during transport and storage ๐ Handy and accurate self-leveling 4-point crossline laser ๐Brightness selection: 2 Modes (Bright mode / Eco mode)
Standard Equipments: Target Plate, Adapter, Soft Bag Any accessories shown are not necessarily supplied as standard equipment.
Information & Technologies
Technical specifications
| Measuring range | 35 m |
|---|---|
| Measuring range with detector (Up to:) | 80 m |
| Leveling accuracy | 3 mm / 10 m |
| Self-leveling range | 4 ° |
| Laser fan angle | Horizontal : 180° |
| Vertical : 170° | |
| Number of laser points | 4 Point |
| Number of laser lines | 2 |
| Laser type: Laser class 2 | 525 nm |
| Operating temperature | -10 - 50° °C |
| Dimensions (L x W x H) | w/ BL1016/BL1021B : 138 x 64 x 102 mm |
| Net weight | 0.69 - 0.85 kg (1.5 - 1.9 lbs.) |
| CXT (Compact Extreme Technology) | ✓ |
| XPT | ✓ |
