SK312GD
Rechargeable Green Multi Line Laser
12V Max Rechargeable Green Multi Line Laser
Other Products

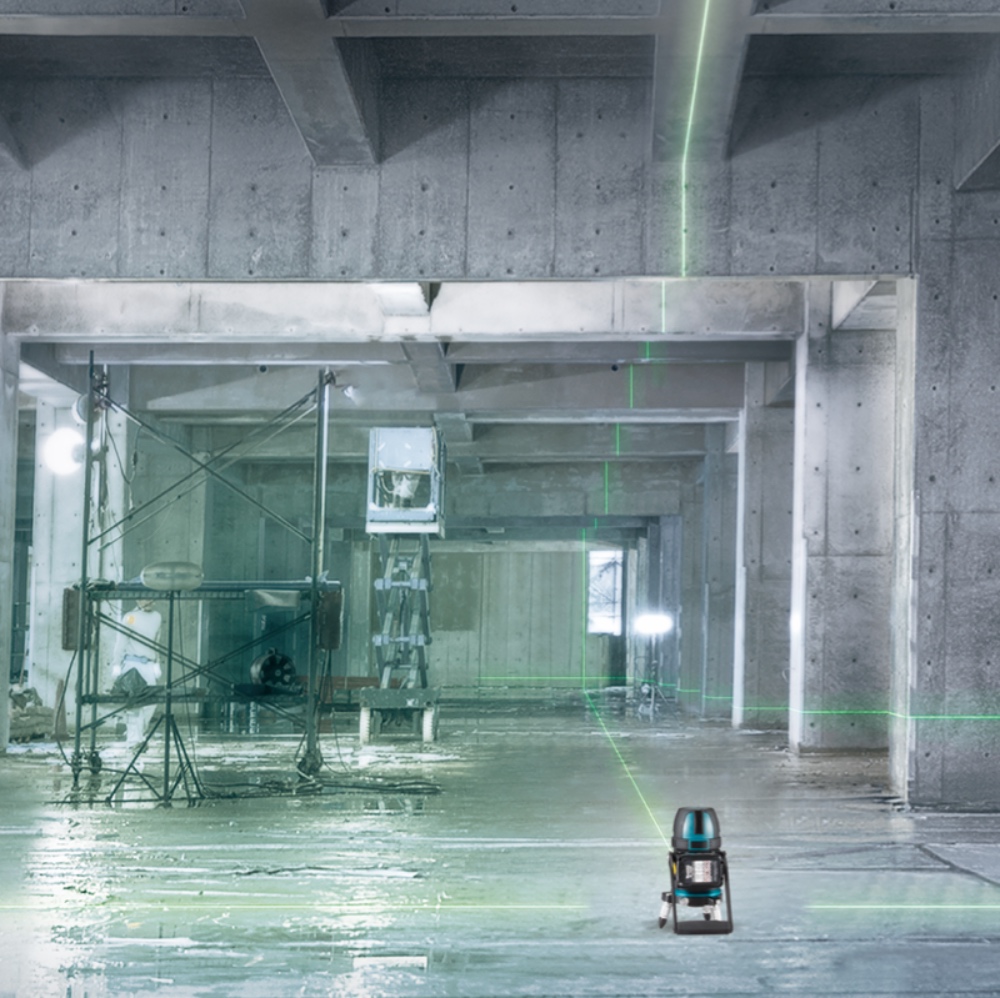

๐ High Brightness Green Laser for Increased Visibility at Bright Site ๐ Horizontal line > Horizontal/vertical line > 3-Vertical line/horizontal line (Loopback switch system) ๐ High accuracy +/-1 mm @ 10 m ๐ Up to 28 hours of continuous illumination in high visibility mode with BL1041B ๐ Laser wavelength 515 nm / Lower dot beam wavelength 650 nm Indication method: Automatic vertical line indication by gimbal mechanism*¹ ๐ Control method: Magnet damper method control ๐ Brightness selection: 3 Modes Eco mode > Normal mode > Bright mode ๐ Mode memory function: When the power is turned ON, the laser beam mode will be the same mode as the last time turned OFF ๐ DC jack allows power to be supplied from LXT batteries by using USB adapter ADP05 and power supply cable
Standard Equipments: Laser Viewing Glass, Shoulder Strap, Storage Case Any accessories shown are not necessarily supplied as standard equipment.
Information & Technologies
Technical specifications
| Leveling accuracy | 1 mm / 10 m |
|---|---|
| Self-leveling range | 2 ° |
| Laser fan angle | Horizontal : 110° |
| Vertical : 130° | |
| Number of laser lines | 3 |
| Laser type: Laser class 2 | 515 nm |
| Operating temperature | -10 - 40°C °C |
| Tripod thread | 5/8" |
| Protection class | IP54 |
| Operating Time (Approx. Hours) | 10 - 28 |
| Dimensions (L x W x H) | w/ BL1016/BL1021B : 122 x 110 x 225 mm |
| Net weight | 1.5 - 1.6 kg (3.3 - 3.5 lbs.) |
| CXT (Compact Extreme Technology) | ✓ |
| XPT | ✓ |
