SK40GD
Rechargeable Green Multi Line Laser

12V Max Rechargeable Green Multi Line Laser

  

Compare

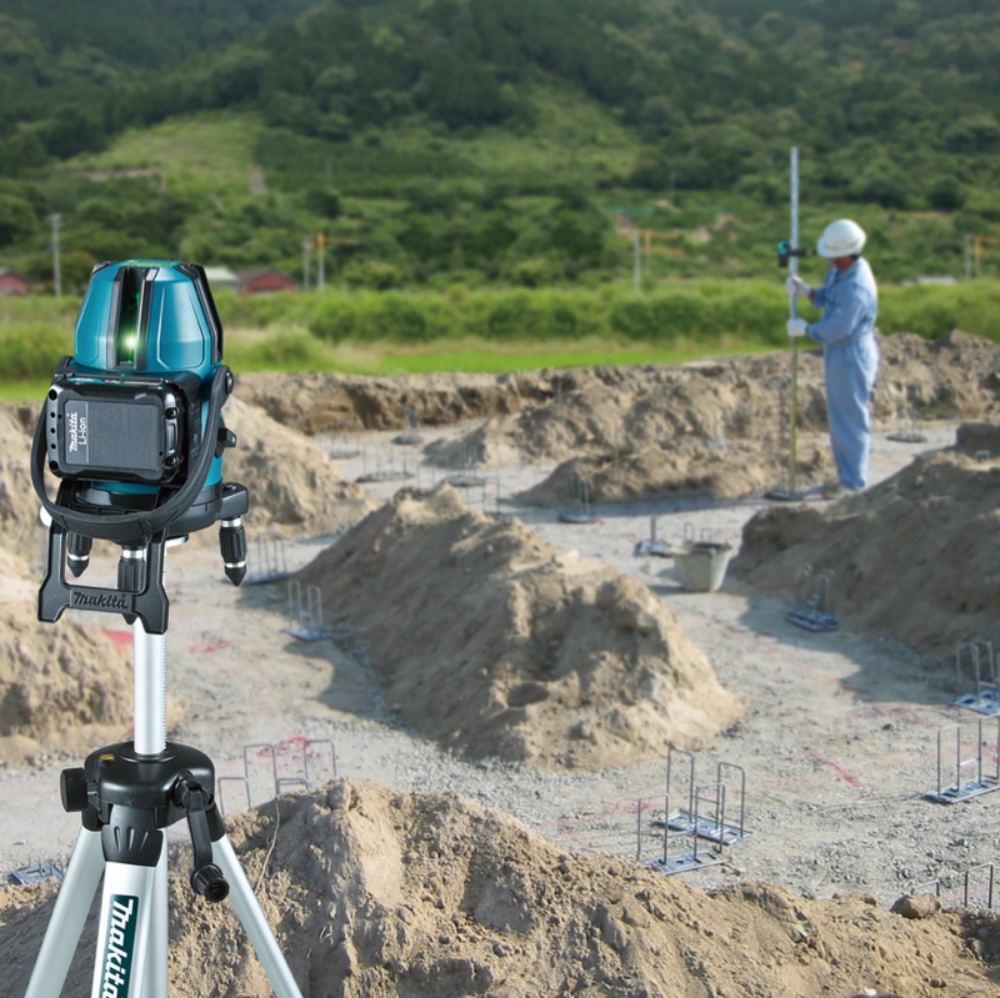

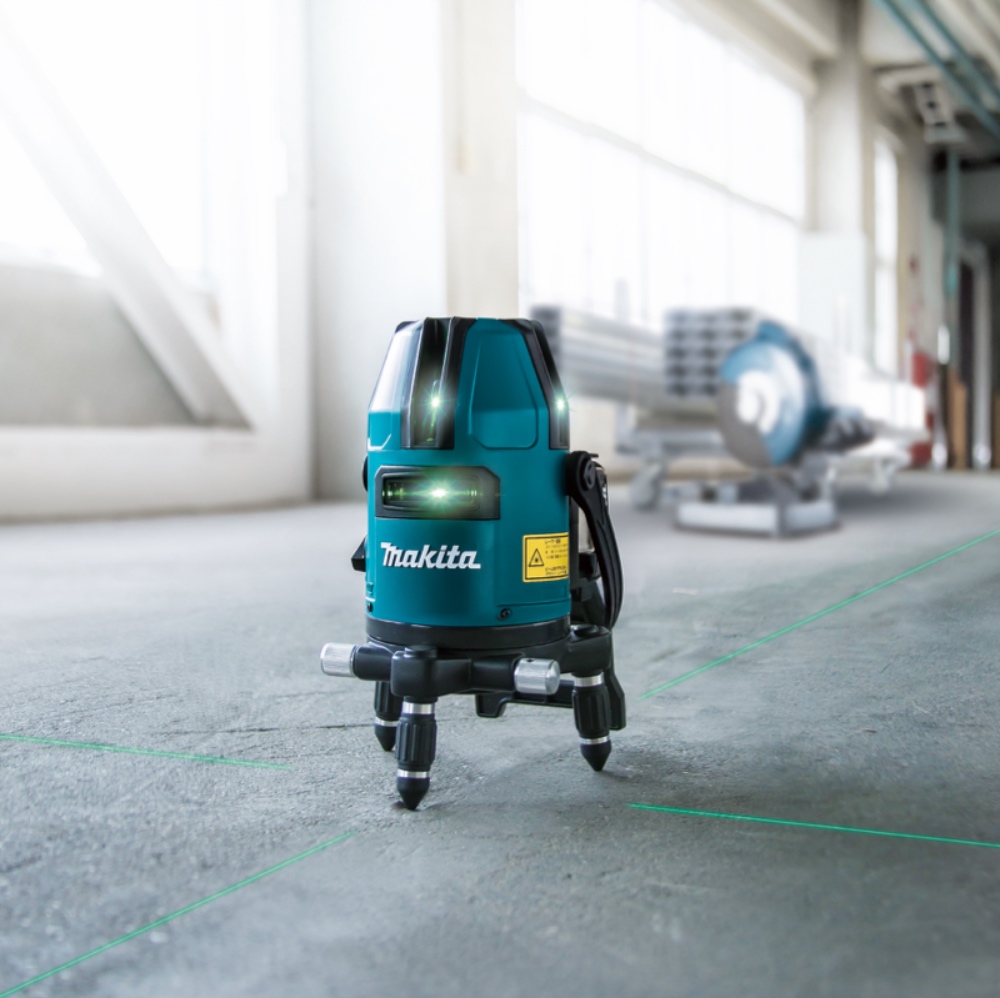

๐ High Brightness Green Laser for Increased Visibility at Bright Site ๐ Horizontal line & 4 Vertical lines ๐ High accuracy +/-1 mm @ 10 m ๐ Laser wavelength 515 nm / Lower dot beam wavelength 650 nm ๐ Indication method: Automatic vertical line indication by gimbal mechanism*¹ ๐ Control method: Magnet damper method control Mode memory function: When the power is turned ON, the laser beam mode will be the same mode as the last time turned OFF

Standard Equipments: Laser detector, Laser Receiver Vise, Laser Viewing Glass, Shoulder Strap, Storage Case Any accessories shown are not necessarily supplied as standard equipment.


Information & Technologies

Technical specifications

Leveling accuracy 1 mm / 10 m
Self-leveling range 4 °
Laser fan angle Horizontal : 110°
Vertical : 130°
Number of laser lines 5
Laser type: Laser class 2 515 nm
Operating temperature -10 - 40 °C
Protection class IP54
Net weight 1.4 - 1.6 kg (3.1 - 3.5 lbs.)
