DLS211

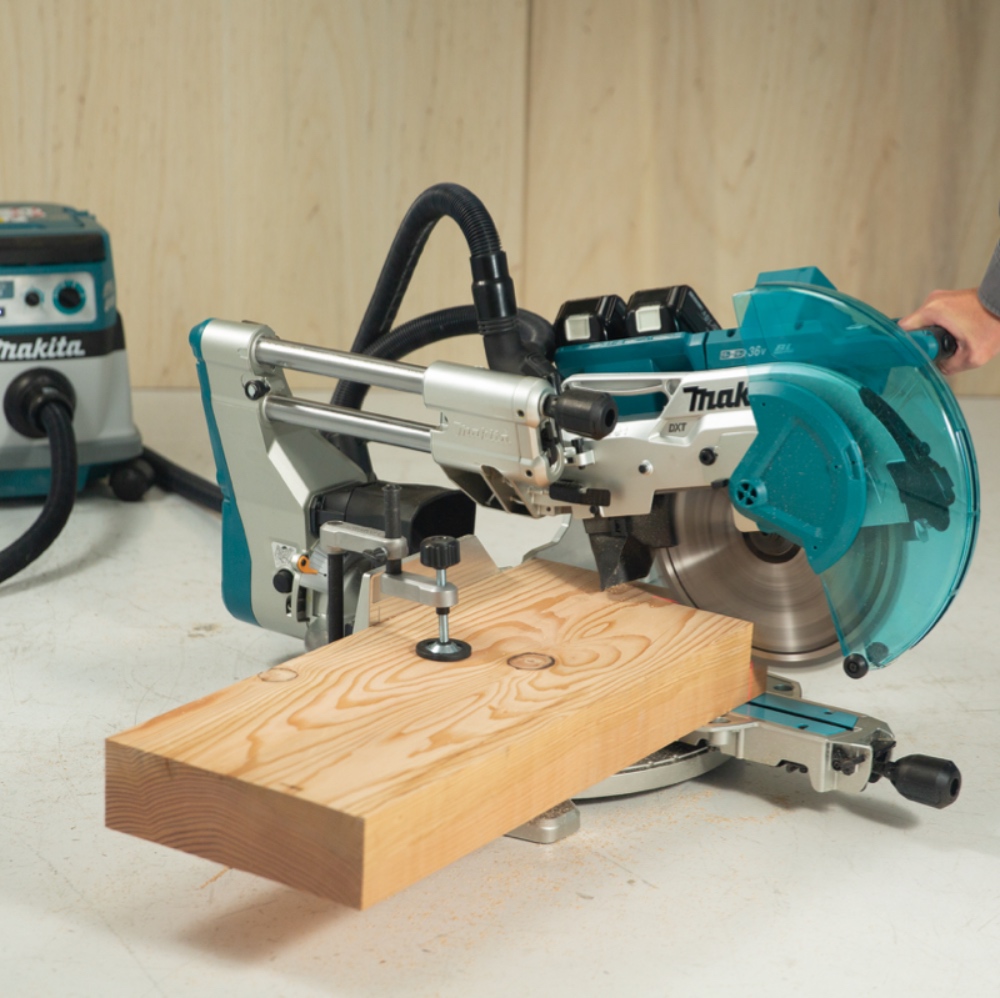

350 mm(12")Slide Compound Miter Saw, Laser, AWS

18V X2 (36V) Slide Compound Miter Saw (12") AWS

  

Compare

Other Products

๐ Rail-forward design enables to be placed against a wall for maximizing work space ๐ High power delivered by 36V (18Vx2) DC Brushless motor enables to cut as fast as if you were using a corded slide compound miter saw ๐ Automatic torque Drive Technology (ADT) adjusts speed and torque during operation for optimum performance ๐ Auto-Start Wireless System (AWS) Connects to Compatible Vacuum Cleaners    with Bluetooth ๐ Large turn base supports workpiece securely for increased stability Integrated guide fences for increased rigidity and high cutting accuracy ๐ Single sliding system enables smooth operation to produce superior cuts ๐ Exclusive linear ball bearings engineered to deliver "dead-on" accurate cuts ๐ Electric brake for maximum productivity and increased operator safety. ๐ Incorporates Deep eXact cutting Technology (DXT) achieved by our consistent pursuit of cutting larger size workpiece but with higher accuracy.

Any accessories shown are not necessarily supplied as standard equipment.


Material

Almi-num

Wood

MDF

Technical specifications

Blade diameter 305(12) mm (")
Miter Angle 60°L /60°R
Bevel Angle 48°L /48°R
Max cutting capacity 90° Miter : 107 x 363 (4-1/4 x 14-1/4) mm (")
90° Miter : 92 x 382 mm(3-5/8 x 15")
45°Miter, L/R: 107 x 255 mm (4-1/4 x 10")
45°Miter, L/R: 92 x 268 mm (3-5/8 x 10-1/2)
No Load Speed (RPM) 4,400
Sound Pressure Level 95 dB (A)
Sound Power Level 103 dB (A)
Vibration Level (m/s²) 2.5 m/s²
Dimensions (L x W x H) 898 x 690 x 725 mm
Net weight 30.7-31.3(67.6-69.1) kg(lbs)
LXT (Lithium-ion Xtreme Technology)
BL Motor
AWS (Auto-Start Wireless System)
ADT
DXT - Deep and Exact Cutting Technology
Brake
Soft Start
Bevel Cutting 45 LR
Laser Marker
Dust Collecting
