JS3201
3.2mm (10 Ga)
Metal Shear
Other Products

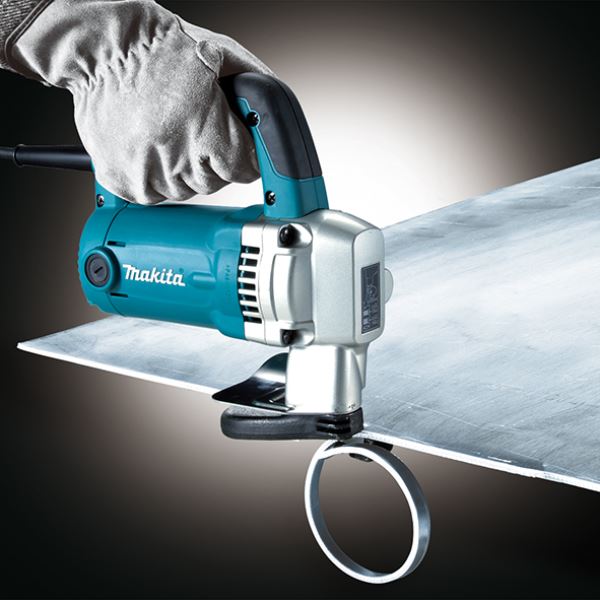

Model JS3201 Metal shear is the aesthetic change model of current model JS3200 by using Motor housing of Angle grinder GA5010 series and Rubberized soft grip.Its Blade section is the same as Metal shear JS3200.
Any accessories shown are not necessarily supplied as standard equipment.
Technical specifications
| Continuous rating input | 710 W |
|---|---|
| Capacity: Steel up to 400 N/mm² | 3.2 mm |
| Capacity: Steel up to 600 N/mm² | 2.5 mm |
| Capacity: Steel up to 800 N/mm² | 1.5 mm |
| Capacity: Aluminum up to 200 N/mm² | 4.0 mm |
| Min. cutting radius | 50(2) mm(") |
| Strokes per minute (SPM) | 1,600 |
| Dimensions (L x W x H) | 213x90x239(8-3/8x3-1/2x9-3/8) mm(") |
| Net weight | 3.4(7.5) kg(lbs) |
| Double Insulation | ✓ |
| Carbon brush No. | 303 |
