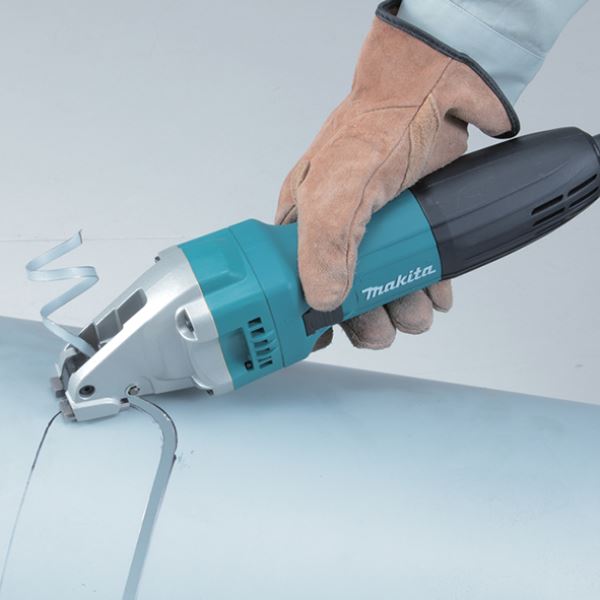

JS1000
1.0mm (20 Ga)

Metal Shear

  

Compare

Other Products


Technical specifications

Continuous rating input 380 W
Capacity: Steel up to 400 N/mm² 1.0 mm
Capacity: Steel up to 600 N/mm² 0.7 mm
Capacity: Steel up to 800 N/mm² 0.5 mm
Capacity: Aluminum up to 200 N/mm² 2.5 mm
Min. cutting radius 30(1-3/16) mm(")
Strokes per minute (SPM) 4,500
Dimensions (L x W x H) 322x70x78(12-5/8x2-3/4x3-1/16) mm(")
Net weight 1.4(3.2) kg(lbs)
Double Insulation
Carbon brush No. 459
