EK6100
305mm (12")
Power Cutter
Other Products

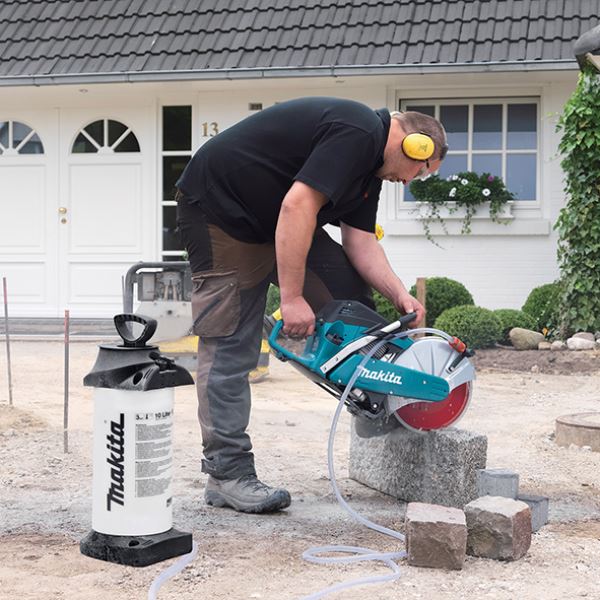

Model EK6100 is a Power cutter 305mm (12") equipped with 61cm³ 2-stroke engine with stratified scavenging system to comply with all known exhaust emission regulations. Compared with the predecessor model DPC6430, this new model has the following advantages: ・Lightweight; 1.2kg (2.6lbs) lighter than DPC6430 ・Enhanced air filtration; cyclone pre-separation system effectively removes dust particles away from intake air and reduces dust stuck on the filter.
Any accessories shown are not necessarily supplied as standard equipment. Lighter than model 12" Net weight : without blade and fuel. Trolley and foot with wheels are available as option.
Material
Stone
Concrete
Technical specifications
| Wheel Diameter | 305 (12) mm(") |
|---|---|
| Engine | 61 mL |
| Max cutting depth | 110 (4-13/16) mm (") |
| No Load Speed (RPM) | 5,100 |
| Cutting speed (sec) | 80 |
| Engine power | 3.2 / 4.4 kW/PS |
| Fuel mixture | 50 : 01 : 00 |
| Fuel Tank Capacity | 0.7 L |
| Sound Pressure Level | 97 dB (A) |
| Sound Power Level | 113 dB (A) |
| Vibration Level Front | 2.8 m/s² or less |
| Vibration Level Rear | 3.8 m/s² or less |
| Overall length | 675 (26-1/2) mm (") |
| Net weight | 8.5 (18.7) kg(lbs) |
| Anti Vibration | ✓ |
| Primer Pump | ✓ |
| Capacitor Discharge Ignition | ✓ |
| Rapid Start | ✓ |
