EK7651H
355mm (14”)
Power Cutter
Other Products

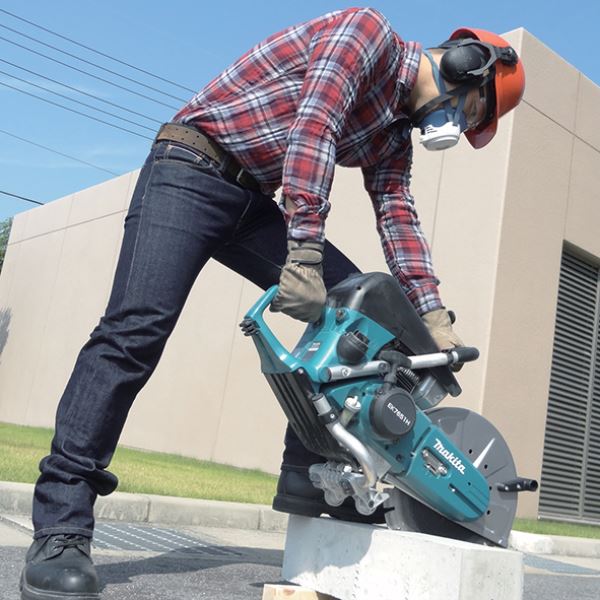

Model EK7651H is the world’s first portable power cutter 355mm (14") equipped with 76cc 4-stroke engine. Its main features are: ・Low fuel consumption, low noise and clean exhaust emission achieved by 4-stroke engine ・Easy start-up with Automatic decompression, primer pump and On/off choke combination switch with automatic half-throttle lock ・Low-vibration system with damper springs to absorb vibration from engine to integrated front and rear handles.
Any accessories shown are not necessarily supplied as standard equipment. Net weight : without blade and fuel. Trolley and foot with wheels are available as option. Engine tool set, Oil Bottle (country-specific), Water supply set
Material
Stone
Concrete
Technical specifications
| Wheel Diameter | 355 (14) mm(") |
|---|---|
| Engine | 75.6 mL |
| Max cutting depth | 122 (4-13/16) mm (") |
| No Load Speed (RPM) | 4,300 |
| Cutting speed (sec) | 80 |
| Engine power | 3.0 / 4.1 kW/PS |
| Sound Pressure Level | 92.7 dB (A) |
| Sound Power Level | 104.6 dB (A) |
| Vibration Level Front | 2.7 m/s² or less |
| Fuel Tank Capacity | 1.1 L |
| Dimensions (L x W x H) | 780x310x455 (30-3/4x12-1/4x17-7/8) mm(") |
| Net weight | 14.2 (31.3) kg(lbs) |
| Anti Vibration | ✓ |
| Primer Pump | ✓ |
| Capacitor Discharge Ignition | ✓ |
| Auto Decompression | ✓ |
| MM4 | ✓ |
