DTD172
Cordless Impact Driver
18V 180 N·m Impact Driver
Other Products

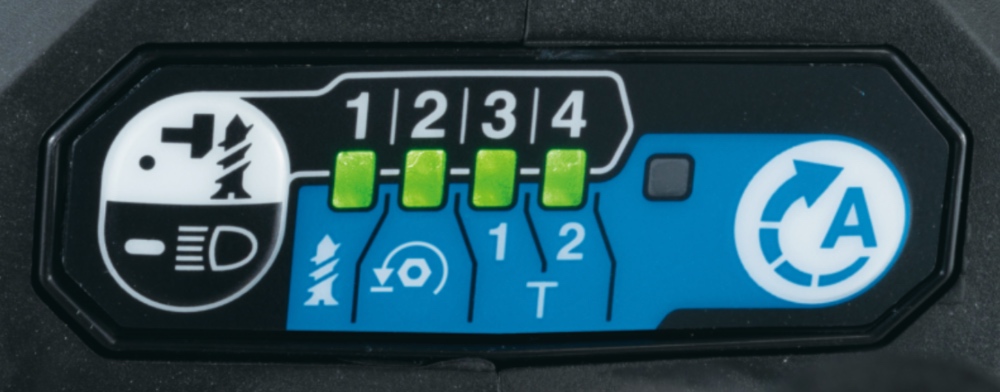

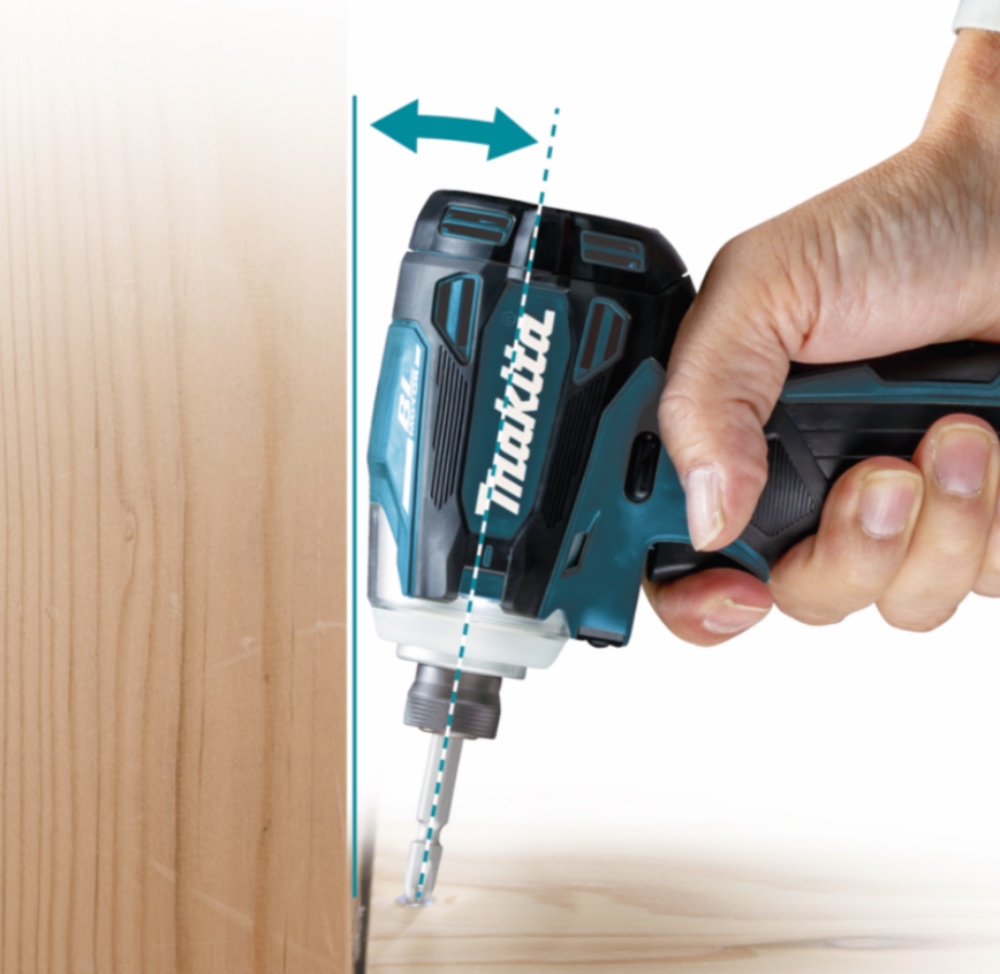

๐ Tool head slimmer than DTD171 enables easy screwdriving in tight corners or confined spaces ๐ Slimmer tool body due to smaller controller circuit ๐ Anti-bit wobbling structure; Two ball bearings are used to securely hold the anvil for reduced bit wobbling ๐ One-touch bit installation; Reduced resistance allows for easier bit installation; Designed to hold the bit more securely ๐ Twin LED lights on both sides illuminate the work area for increased visibility ๐Wood/Bolt/T-Mode (1, 2)/Max/Hard/Medium/Soft Mode for Multiple Applications
Standard Equipments: Phillips Bit, Belt clip Any accessories shown are not necessarily supplied as standard equipment.
Information & Technologies
Technical specifications
| Capacity Machine screw | M4 - M8 (5/32 - 5/16") |
|---|---|
| Capacity Standard Bolt | M5 - M16 (3/16 - 5/8") |
| Capacity High strength bolt | M5 - M14 (3/16 - 9/16") |
| Capacity Coarse thread (in length) | 22 - 125 mm (7/8 - 4-7/8") |
| Hex Shank | 6.35 mm (1/4") |
| No Load Speed (RPM) | Max / Hard / Mid / Soft / Wood / Bolt / T (1) / T (2) mode:: 0 - 3,600 / 3,200 / 2,100 / 1,100 / 1,800 / 3,600 / 2,900 / 3,600 |
| Impacts per minute (IPM) | Max / Hard / Mid / Soft / Wood / Bolt / T (1) / T (2) mode:: 0 - 3,800 / 3,600 / 2,600 / 1,100 / 3,800 / 3,800 / N/A / 2,600 |
| Max Fastening Torque | 180 N·m (1,590 in.lbs.) |
| Fastening Torque | Hard / Mid / Soft: 170 / 50 / 20 N·m (1,510 / 440 / 180 in.lbs.) |
| Dimensions (L x W x H) | w/ BL1860B : 114 x 81 x 236 mm |
| Net weight | 1.2 - 1.5 kg (2.6 - 3.3 lbs.) |
| LXT (Lithium-ion Xtreme Technology) | ✓ |
| BL Motor | ✓ |
| XPT | ✓ |
| Variable Speed | ✓ |
| Brake | ✓ |
| Reversing | ✓ |
| Electronic 4-Speed | ✓ |
| Built-in Job Light | ✓ |
