(EN / TH)

SC103D

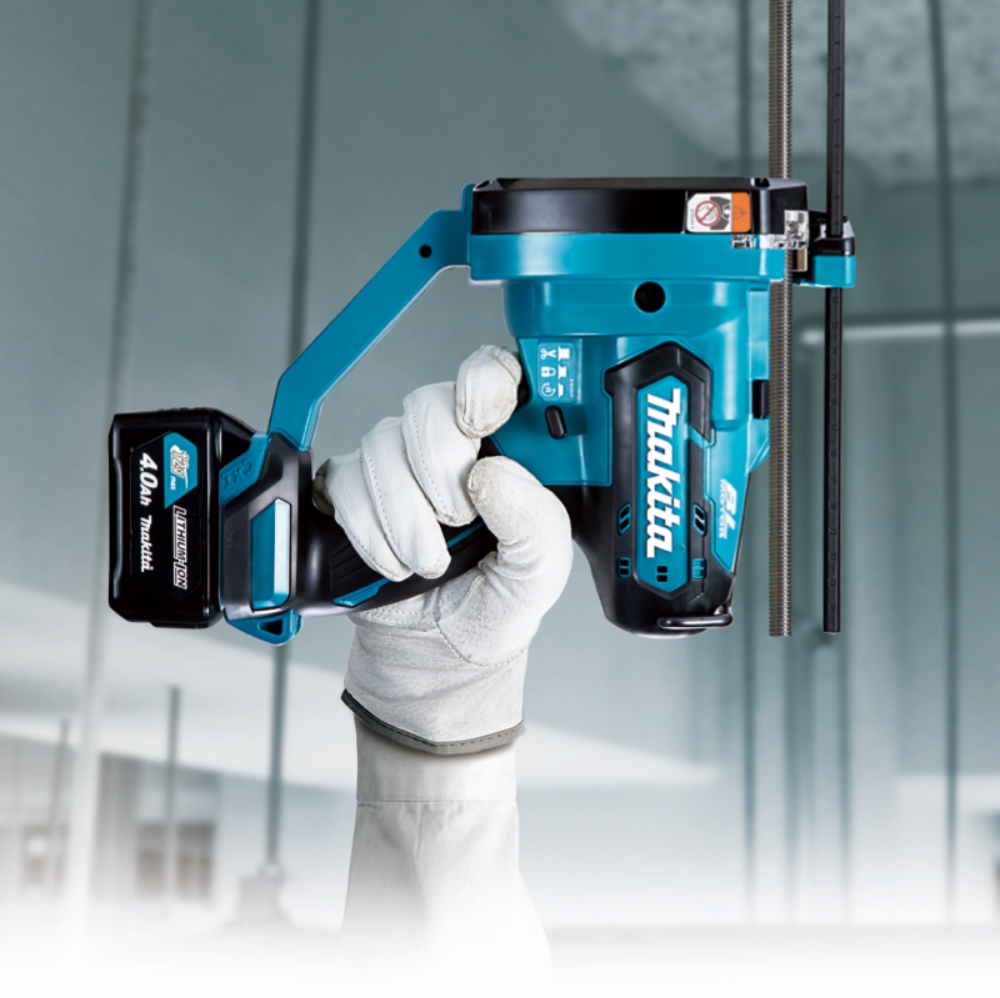

Cordless Threaded Rod Cutter

12V Max Threaded Rod Cutter

  

๐ More Compact & High Productivity ๐ Cuts up to M10 ๐ Lightweight design for increased maneuverability ๐ Excellent tool balance allows for operation with less wrist fatigue ๐ Superior handling in overhead applications ๐ Performs stable cutting even on the floor ๐ Compatible with the same blades for model DSC102 ๐ Burr-free cuts allow for easy nut tightening ๐ Automatic blade stop mechanism allows operator to quickly resume operation by letting the movable blades stop at its full open position

Standard Equipments: Cutter Blade, Hex socket head bolt, Blade Cover, Depth Gauge, Thumb screw, Hex Wrench Any accessories shown are not necessarily supplied as standard equipment.


Technical specifications

Max cutting capacity Mild Steel : M10
Stainless Steel : W3/8
Min. cutting Lenght 20 mm (13/16")
Work Amount (pcs) W3/8 (Mild Steel) w/ BL1041B : 700
W3/8 (Stainless) w/BL1041B : 550
M10 (Mild Steel) w/BL1041B : 550
Dimensions (L x W x H) w/ BL1041B : 180 x 107 x 289 mm
Net weight 2.7 - 2.8 kg (6.0 - 6.2 lbs.)
CXT (Compact Extreme Technology)
BL Motor
Brake
Reversing
Built-in Job Light
