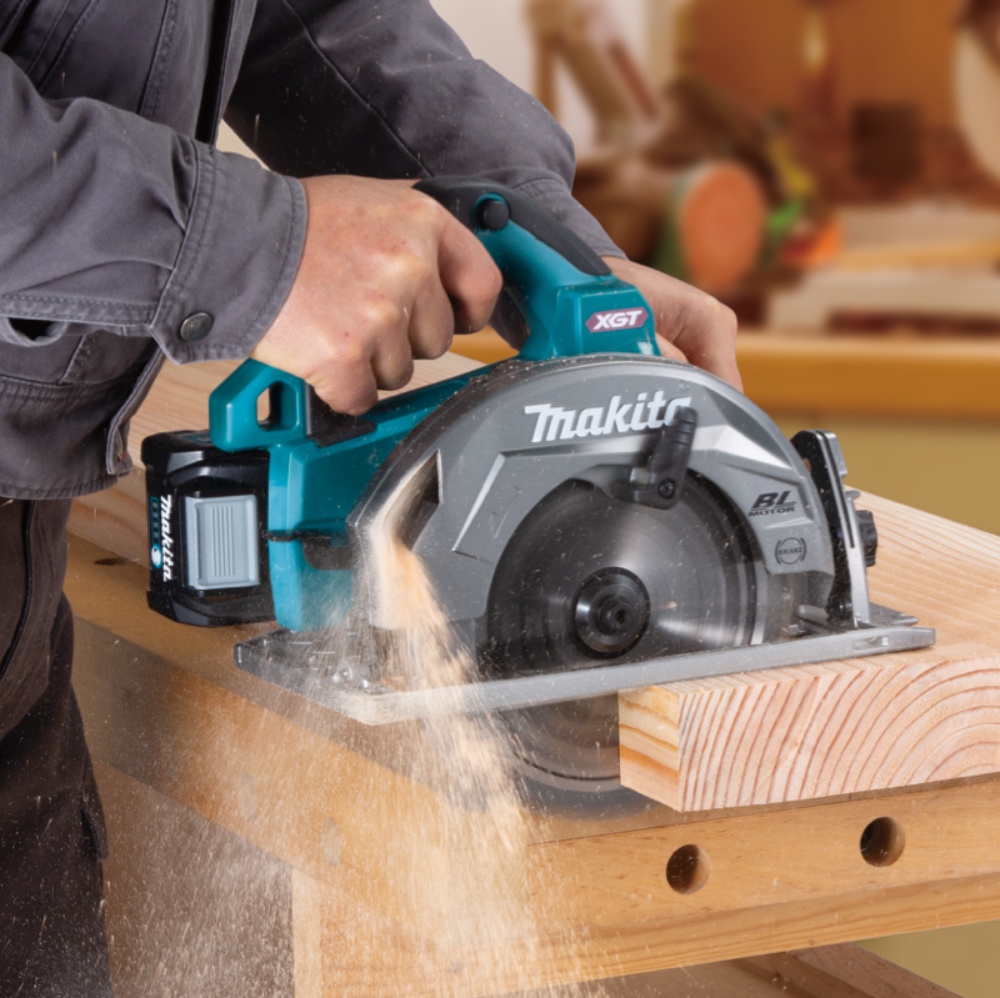

HS003G
Cordless Circular Saw
40V Max 190 mm (7-1/2") Magnesium Circular Saw
Other Products
๐ Lightweight & high power ๐ 40Vmax XGT Li-Ion battery and BL motor allow for excellent balance of high power and lightweight maneuverability similar to corded tools ๐ BL motor delivers 6,000 RPM for fast cutting ๐ BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life ๐ Large cutting capacity (68.5 mm at 90°) and bevel capacity (0° - 56°) with a positive stop at 22.5° and 45° ๐ Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth ๐ Automatic torque Drive Technology (ADT) adjusts cutting speed and torque during cut for optimum performance
Standard Equipments: TCT Saw Blade, Dust Nozzle, Hex Wrench Any accessories shown are not necessarily supplied as standard equipment.
Information & Technologies
Material
Wood
MDF
Technical specifications
| Blade Diameter | 190 mm (7-1/2") |
|---|---|
| Max cutting capacity | 0° : 68.5, 66 mm (2-11/16, 2-5/8") |
| 45° : 47.5, 45.5 mm (1-7/8, 1-13/16") | |
| 56° : 35.5 / 34 mm (1-3/8 / 1-5/16") | |
| No Load Speed (RPM) | 6,000 |
| Vibration Level (m/s²) | 2.5 m/s² |
| Sound Pressure Level | 93 dB (A) |
| Sound Power Level | 104 dB (A) |
| Dimensions (L x W x H) | w/BL4025 : 316 x 200 x 290 mm |
| Net weight | 4.1 - 4.4 kg (9.0 - 9.7 lbs.) |
| XGT : Next Generation Technology | ✓ |
| BL Motor | ✓ |
| AWS (Auto-Start Wireless System) | ✓ |
| ADT | ✓ |
| Electric brake | ✓ |
| XPT | ✓ |
| Brake | ✓ |
| Soft Start | ✓ |
| Built-in Job Light | ✓ |
| Carrying Case | ✓ |
