TD001G

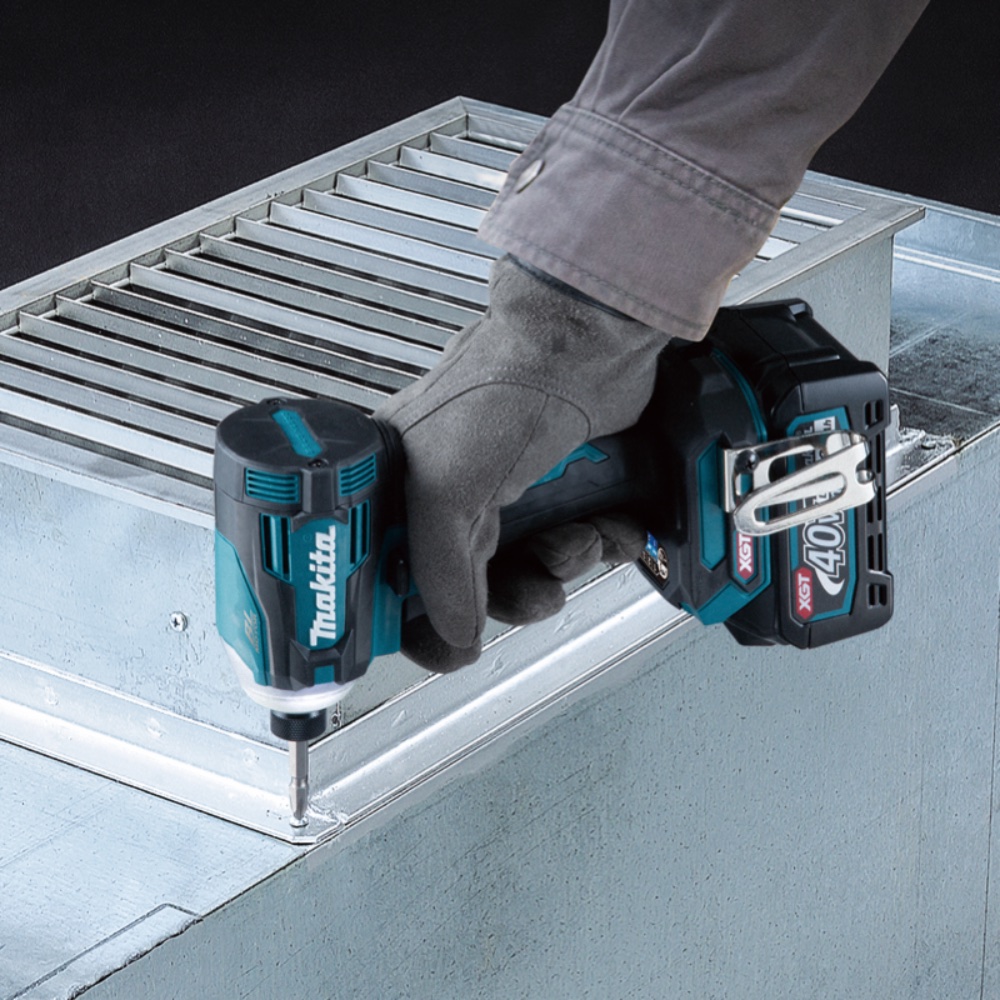

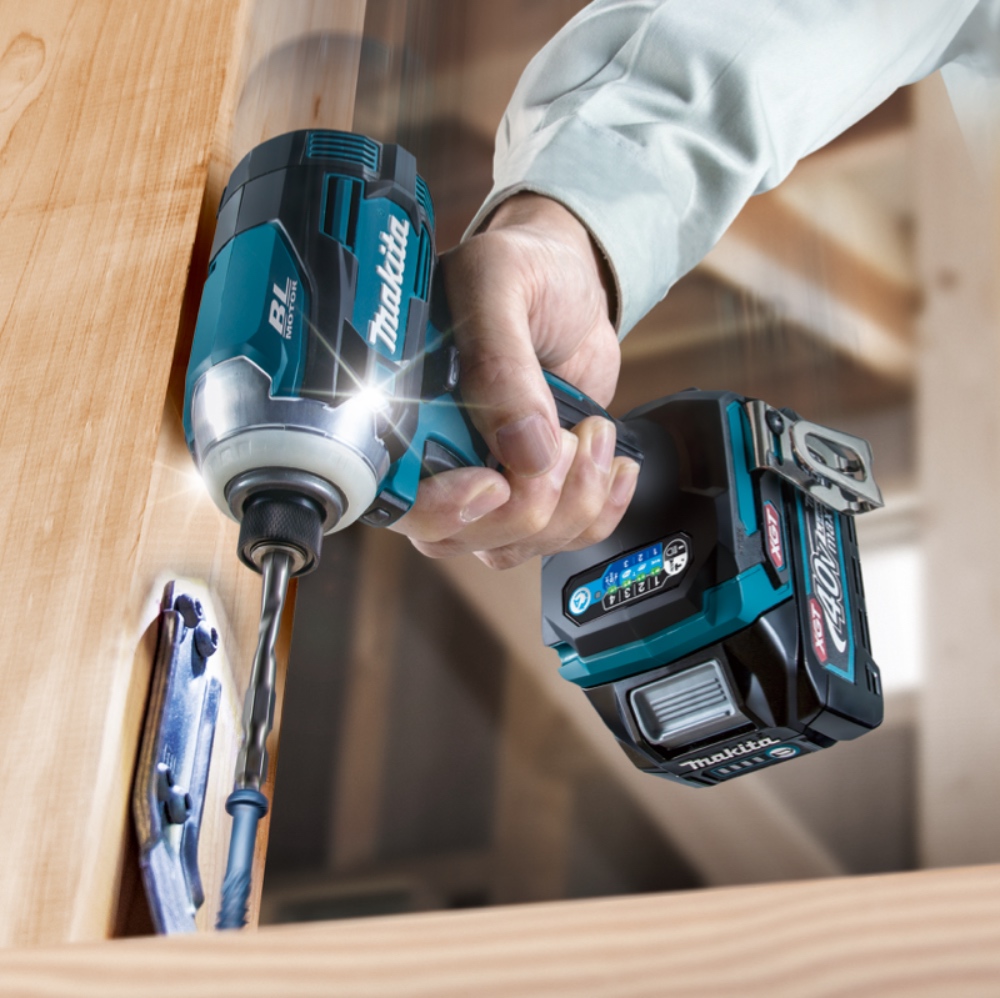

Cordless Impact Driver
40V Max 220 N·m Impact Driver
๐ High Power 220 N·m ๐ Genuine solution for high demand industrial users ๐ Having excellent ability to perform heavy-duty continuous tightening; Able to continuously tighten heavy duty screws such as metal fastening screws or lag screws ๐ Delivers up to 50% higher work speed than DTD171 ๐ Multiple operation modes for a wide range of applications; 4-speed power selection plus 6 Assist modes (2 T-modes, 1 Wood mode, 3 Bolt modes)
Standard Equipments: Phillips Bit, Belt Clip, Hand Strap Any accessories shown are not necessarily supplied as standard equipment.
Information & Technologies
Material
Metal
Almi-num
Wood
MDF
Technical specifications
| Capacity | Machine Screw : M4 - M8 (5/32 - 5/16") |
|---|---|
| Standard Bolt : M5 - M16 (3/16 - 5/8") | |
| High Strength Bolt : M5 - M14 (3/16 - 9/16") | |
| Coarse thread (in length) : 22 - 125 mm (7/8 - 4-7/8") | |
| Hex Shank | 6.35 mm (1/4") |
| No Load Speed (RPM) | Max / Hard / Mid / Soft / Wood / Bolt (1) / Bolt (2) / Bolt (3) / T (1) / T (2) mode: 0 - 3,700 / 3,200 / 2,100 / 1,100 / 1,800 / 2,500 / 3,700 / 3,700 / 2,400 / 3,700 |
| Impacts per minute (IPM) | Max / Hard / Mid / Soft / Wood / Bolt (1) / Bolt (2) / Bolt (3) / T (1) / T (2) mode: 0 - 4,400 / 3,600 / 2,600 / 1,100 / 4,400 / N/A / 4,400 / 4,400 / N/A / 2,600 |
| Max Fastening Torque | 220 N·m (1,950 in.lbs.) |
| Fastening Torque | Hard / Mid / Soft: 170 / 50 / 20 N·m (1,510 / 440 / 180 in.lbs.) |
| Dimensions (L x W x H) | w/ BL4020 / BL4025: 120 x 86 x 245 mm |
| Net weight | 1.7 - 2.0 kg (3.7 - 4.4 lbs.) |
| XGT : Next Generation Technology | ✓ |
| BL Motor | ✓ |
| XPT | ✓ |
| Variable Speed | ✓ |
| Brake | ✓ |
| Reversing | ✓ |
| Electronic 4-Speed | ✓ |
| Constant Speed | ✓ |
| Built-in Job Light | ✓ |
| Carrying Case | ✓ |
