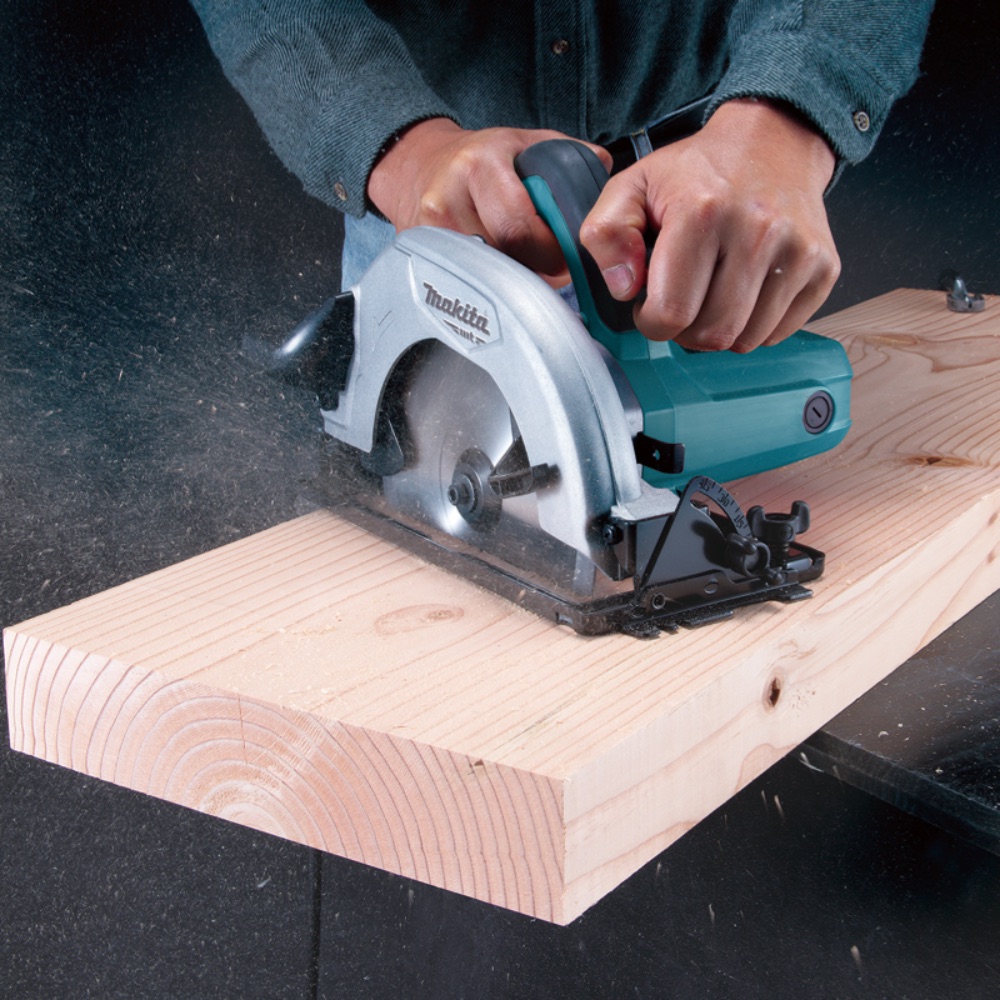

M5802B
Circular Saw
185 mm (7-1/4") 1,050 W Circular Saw
Other Products
๐ High performance and durability at less expense ๐ Well-balanced and Lightweight for superior handling and performance ๐ Ergonomically designed handle with soft grip covered with non-slip elastomer fits your hand perfectly to provide maximum comfort and control ๐ Bevel cuts 0°- 45° for the most common cutting applications ๐ Large cutting capacity (66 mm (2-5/8") at 90°, 44 mm (1-3/4") at 45°) ๐ Single action lever for quick adjustment of cutting depth ๐ Double insulated
TCT Saw Blade, Guide Rule, Hex Wrench, Dust Nozzle (country-specific) Any accessories shown are not necessarily supplied as standard equipment.
Material
Wood
MDF
Technical specifications
| Continuous rating input | 1,050 W |
|---|---|
| Max cutting capacity | 0°: 68, 66 mm (2-11/16, 2-5/8") |
| 45°: 46, 44 mm (1-13/16, 1-3/4") | |
| Blade Diameter | 190 / 185 mm (7-1/2 / 7-1/4") |
| No Load Speed (RPM) | 4,900 |
| Dimensions (L x W x H) | 297 x 232 x 255 mm |
| Net weight | 3.8 kg (8.4 lbs.) |
| Power supply cord | 2.0 m (6.6 ft) |
| Double Insulation | ✓ |
| Dust Collecting | ✓ |
| Carbon brush No. | 303A |
