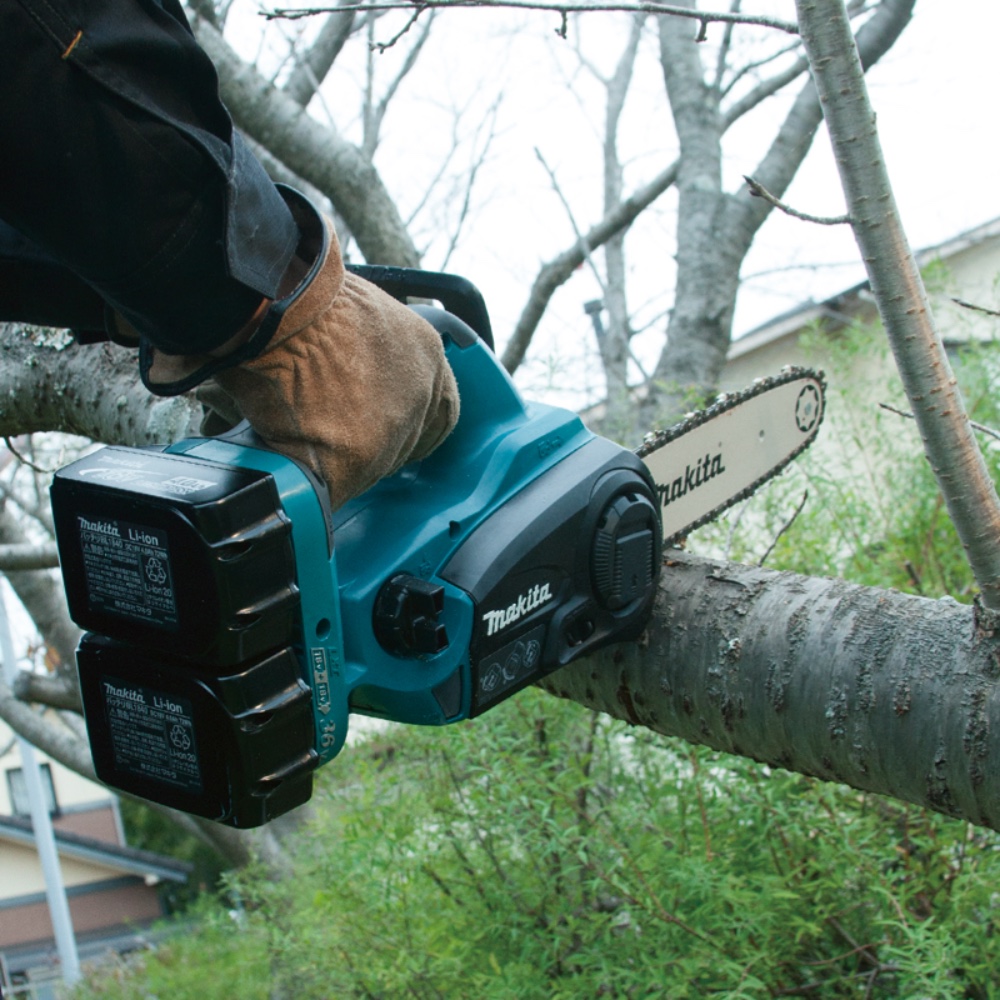

DUC252
Cordless Chain Saw

18V X2 (36V) 25 cm (10") Chain Saw

  

๐ Powered by two 18V LXT Li-Ion batteries ๐ Low noise level and zero emissions for operator comfort ๐ "Tool-less" chain adjustment for convenient operation and maintenance ๐ Kickback brake & electric brake for maximum productivity and maximum operator safety ๐ Cordless for reduced maintenance; no need to change engine oil or spark plug, clean air filter or drain fuel for storage ๐ Lightweight for reduced operator fatigue

Any accessories shown are not necessarily supplied as standard equipment.


Information & Technologies

Technical specifications

Guide bar (Bar length) 250 mm (10")
Cutting Length 238 mm (9-3/8")
Chain Pitch 9.5 mm (3/8")
Chain Gauge 1.3 mm (0.05")
Chain speed 8.3 m/s (500 m/min) (1,650 FPM)
Chain Oil Tank Volume 85 mL (2.9 US oz)
Dimensions (L x W x H) 316 x 234 x 198 mm mm
Net weight 4.1 - 4.7 kg (9 - 10.3 lbs.)
Carbon brush No. 442
LXT (Lithium-ion Xtreme Technology)
XPT
Brake
Soft Start
Automatic Oiling
Chain Brake
