DTS141

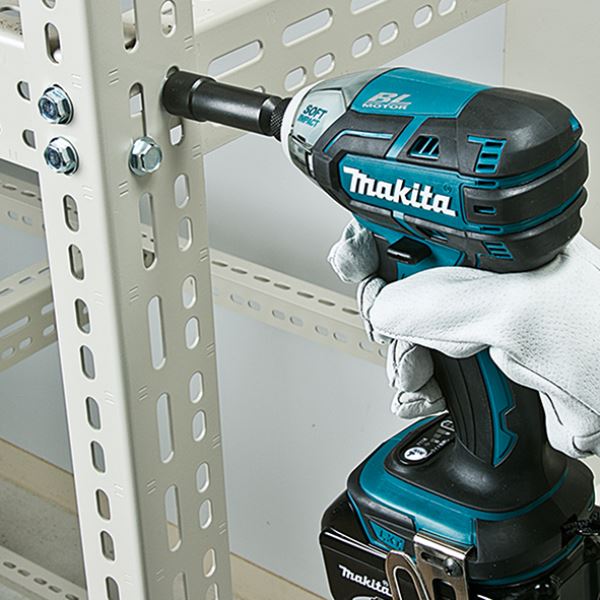

Cordless Oil-Pulse Driver

  

Model DTS141 is a cordless oil-pulse driver powered by 18V Li-ion battery, featuring a compact and lightweight design thanks to the newly-developed oil unit and brushless motor. W/- Charger, Battery

Any accessories shown are not necessarily supplied as standard equipment.


Information & Technologies

Li-ion Ah



Material

Metal

Stainless

Almi-num

Wood

Stone

Concrete

Soft Tile

MDF

PVC

Plastics

Glass

Technical specifications

Li-ion (Ah) 6.0 5.0 4.0 3.0 2.0 1.5
Capacity Machine screw M4-M8(5/32"- 5/16) (")
Capacity Standard bolt M5-M8(3/16"-5/16) (")
Capacity High strength bolt M5-M6(3/16"-1/4) (")
Capacity Coarse thread (in length) 22-125(7/8-4"-7/8) mm(")
Impacts Per Minute (IPM) Hard 0-2700
Impacts Per Minute (IPM) Medium 0-2200
Impacts Per Minute (IPM) Soft 0-1400
No Load Speed (RPM) Hard 0-3200
No Load Speed (RPM) Medium 0-2000
No Load Speed (RPM) Soft 0-1200
Max Fastening Torque 40(355) N·m(in.lbs.)
Noise level 77 db(A)
Dimensions (L x W x H) 136x79x240(5-3/8x3-1/8x9-1/2) mm(")
Net weight 1.2(2.7) kg(lbs)
BL Motor
XPT
Voltage 18 V
Variable Speed
Brake
Reversing
Built-in Job Light
Carrying Case
