JN3201
3.2mm (10 Ga)
Nibbler
Other Products

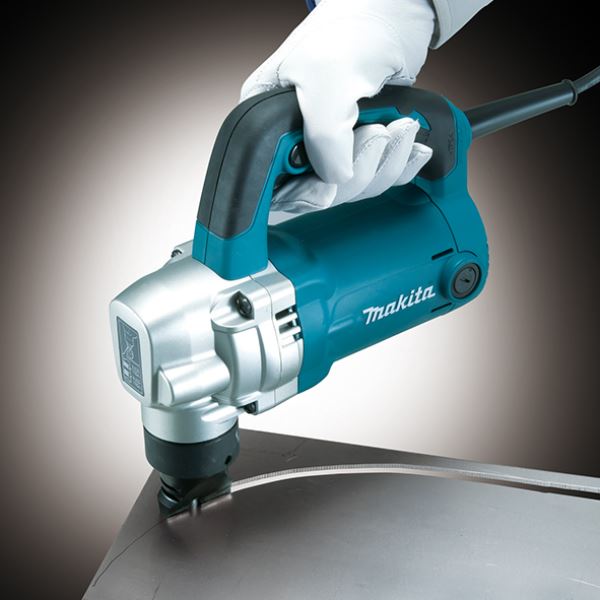

Model JN3201 Nibbler is the aesthetic change model of current model JN3200 by using Motor housing of Angle grinder GA5010 series and Rubberized soft grip. Its Blade section is the same as Nibbler JN3200. Addition to the above, it has the following advantages: ・710W continuous rating input. ・Low noise level at 81 dB(A).
Any accessories shown are not necessarily supplied as standard equipment.
Technical specifications
| Continuous rating input | 710 W |
|---|---|
| Capacity: Steel up to 400 N/mm² | 3.2 mm |
| Capacity: Steel up to 600 N/mm² | 2.5 mm |
| Capacity: Steel up to 800 N/mm² | 1.0 mm |
| Capacity: Aluminum up to 200 N/mm² | 3.5 mm |
| Min. cutting radius (Outside edge) | 128(5-1/16) mm(") |
| Min. cutting radius (Inside edge) | 120(4-3/4) mm(") |
| Strokes per minute (SPM) | 1,300 |
| Dimensions (L x W x H) | 225x90x254(8-7/8x-1/2x10) mm(") |
| Net weight | 3.4(7.4) kg(lbs) |
| Double Insulation | ✓ |
| Carbon brush No. | 303 |
