355mm (14")

Angle Cutter



Other Products

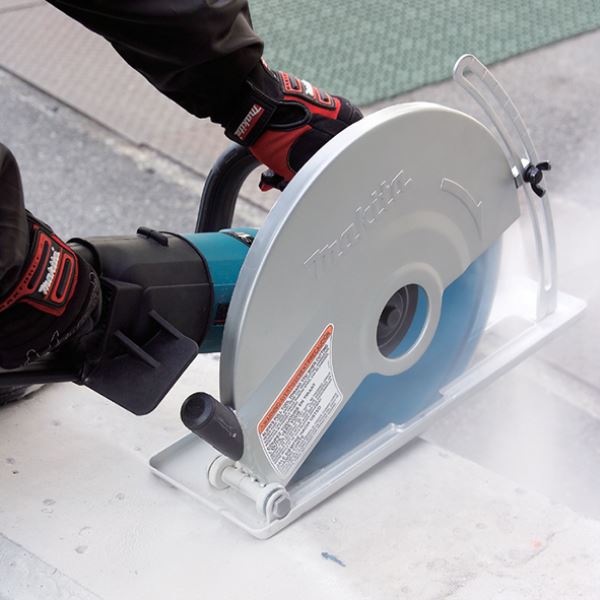

Model 4114S is the 355mm (14") version of the current 4112S 305mm (12") Angle cutter, having the following same benefits as 4112S; *High torque delivered at low motor speed of 3,500rpm. *Super Joint System (SJS) that provides smooth approach and long service life of gear section. *Soft start to minimize startup shock.

Any accessories shown are not necessarily supplied as standard equipment.

Technical specifications

Continuous rating input 2,400 W
Max cutting capacity 125(5) mm (")
Wheel Diameter 355(14) mm(")
Hole diameter 25.4(1) mm(")
No Load Speed (RPM) 3,500
Dimensions (L x W x H) 673x240x329(26-1/2x9-1/2x13) mm(")
Net weight 10.8(23.9) kg(lbs)
Double Insulation
Soft Start
Dust Collecting
Carbon brush No. 204
