HS011G
Cordless Circular Saw

HS011G Parts List (1.17 MB)

HS011G Leaflet (5.80 MB)

HS011G
Cordless Circular Saw

40Vmax Cordless Circular Saw 255 - 270 mm (10 - 10-5/8")

  
Brake
Anti-restart function
Constant Speed
Soft Start
Dust Collection
Built-in-Job Light

Features

  • Lightweight & high power
  • Large size BL motor delivers high power similar or superior to corded models

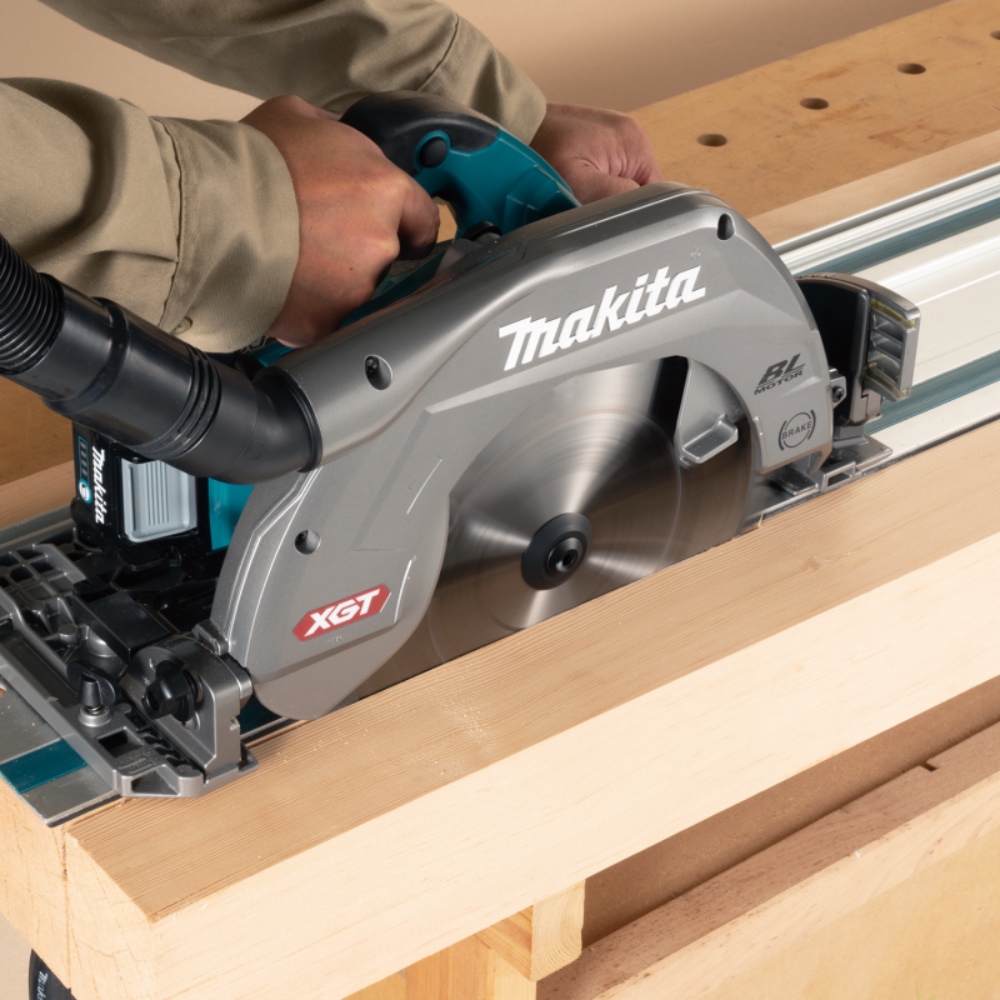

  • Compatible with guide rail without adapter, providing precision cutting
  • Designed mainly for precision rip cutting of 3-1/2" (89 mm) thick 4x lumber

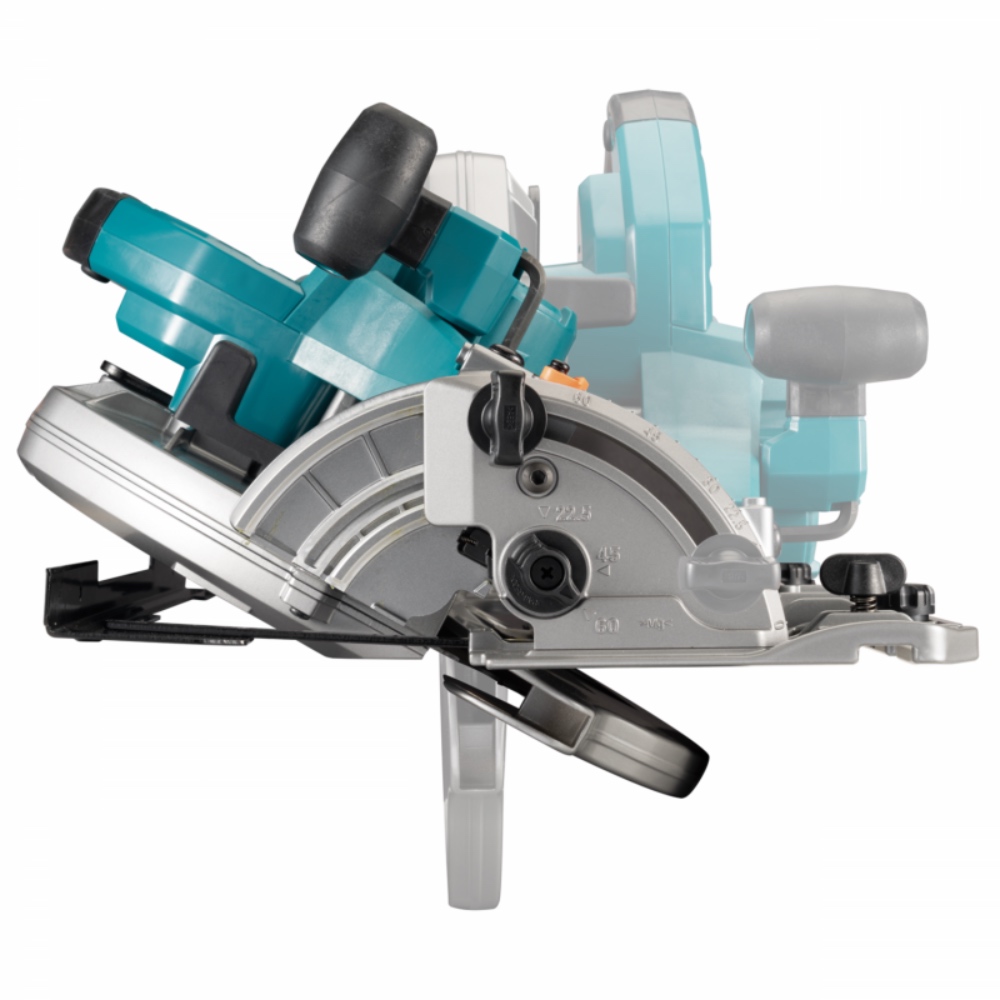

  • Large cutting capacity (97 mm (3-13/16") at 90° with 260 mm (10-1/4") blade, 101 mm (4") at 90° with 270 mm (10-5/8") blade) and bevel capacity (-1°-60°)
  • Use of large size BL motor makes the tool weight 0.8 kg lighter than HS0600 even when BL4050F is attached, providing improved maneuverability
  • Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
  • Electric brake for maximum productivity
  • Magnesium diecast base, Magnesium diecast safety cover, Magnesium diecast blade case
  • BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
  • Rotatable dust nozzle diminishes the loss of the convenience of cordless mobility caused by the hose when the saw is connected to vacuum cleaner

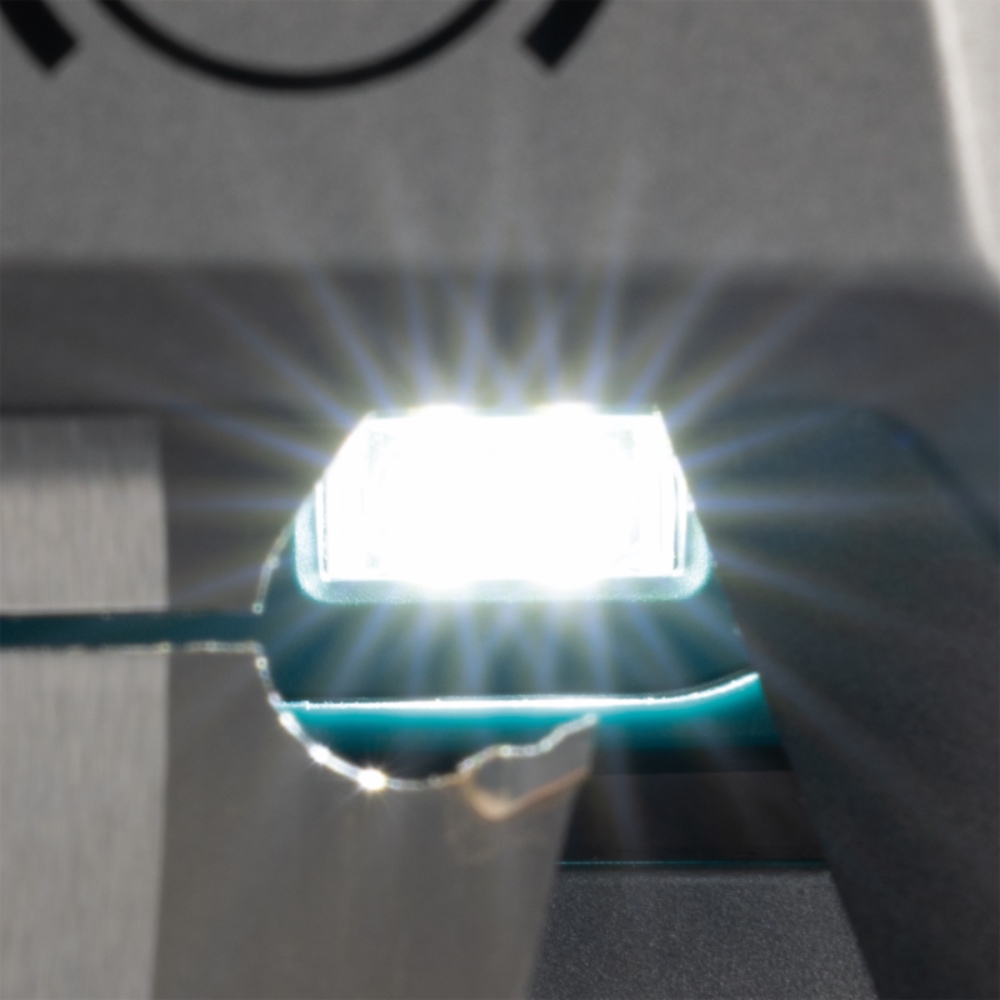

  • Twin LED lights with preglow and afterglow functions for better illumination and more accurate work
  • Soft start suppresses start-up reaction for more control and better accuracy
  • Constant speed control minimizes reduction in rotation speed under load
  • Anti-restart function engineered to minimize motor start up when battery is inserted with switch locked on
  • High water-resistance compatible with XPT
  • Soft grip provides increased comfort on the job

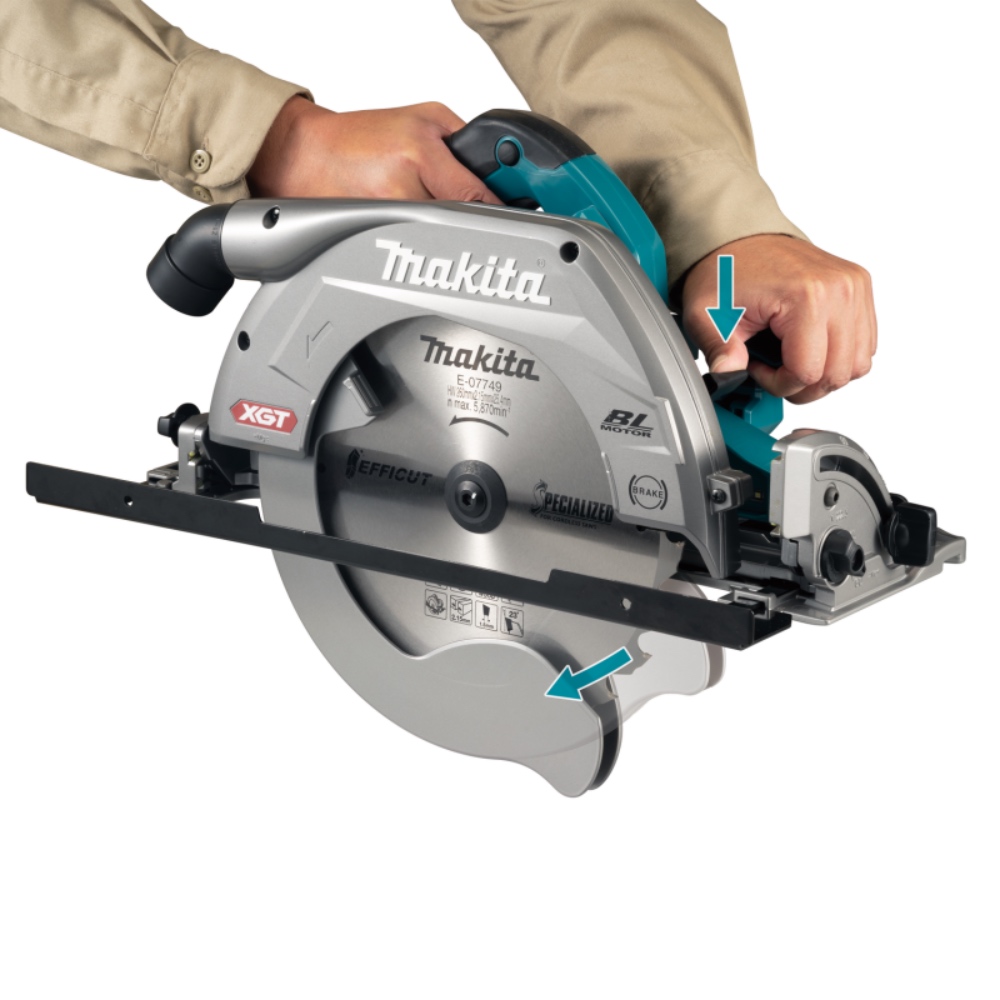

  • Two-stage safety trigger switch minimizes accidental start up
    Battery protection circuit protects against overloading, over-discharging and over-heating

Standard Equipments : TCT saw blade, Sub base, Hex wrench


Parts List
(1.17 MB)


Leaflet
(5.80 MB)

Available options

HS011GZ
Tool only


Technical specifications

No Load Speed 3,500 minˉ¹
Wheel Diameter 255 - 270 mm
Max Cutting Capacity 94 - 101 mm
Max Cutting Capacity 45° 65 - 71 mm
Dimensions (L x W x H) 453 x 196 x 336 mm
Net weight 5.5 - 6.7 kg
