HS012G
Cordless Circular Saw

HS012G
Cordless Circular Saw

40V max Cordless Magnesium Circular Saw 165 mm (6-1/2")

  

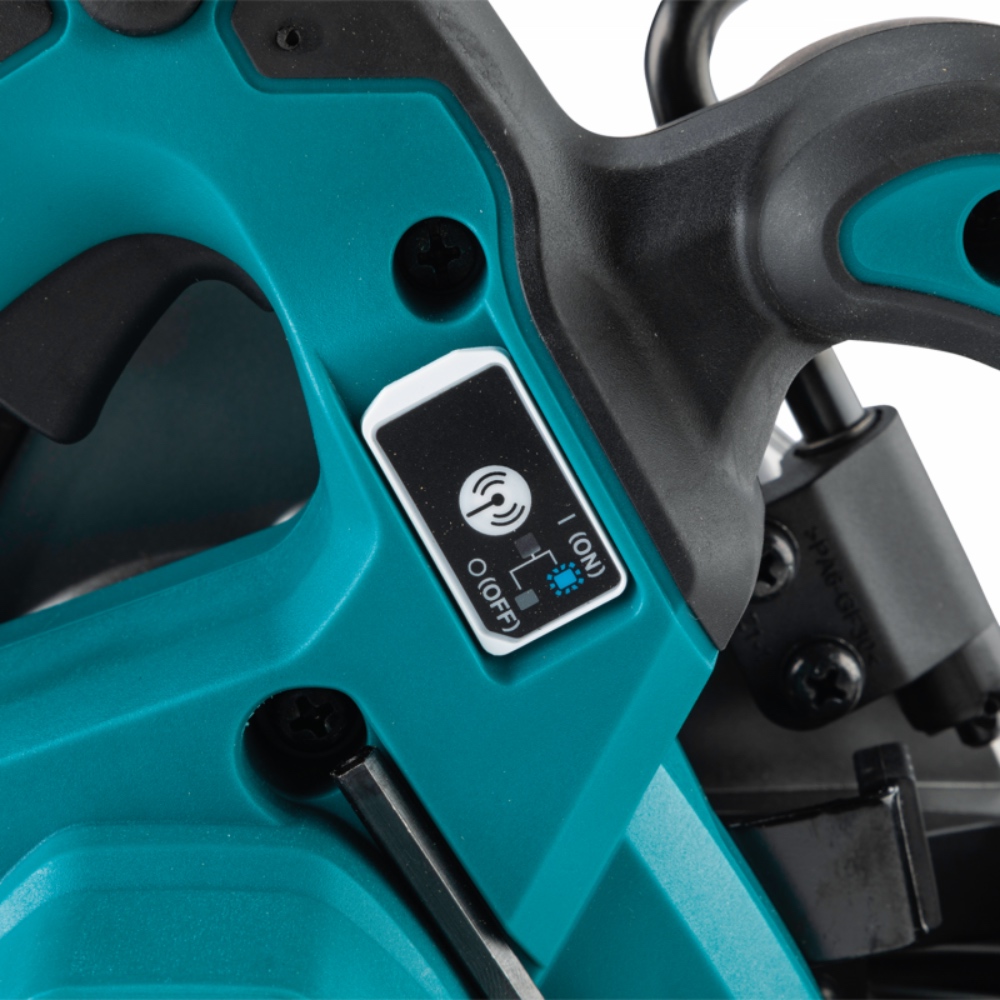

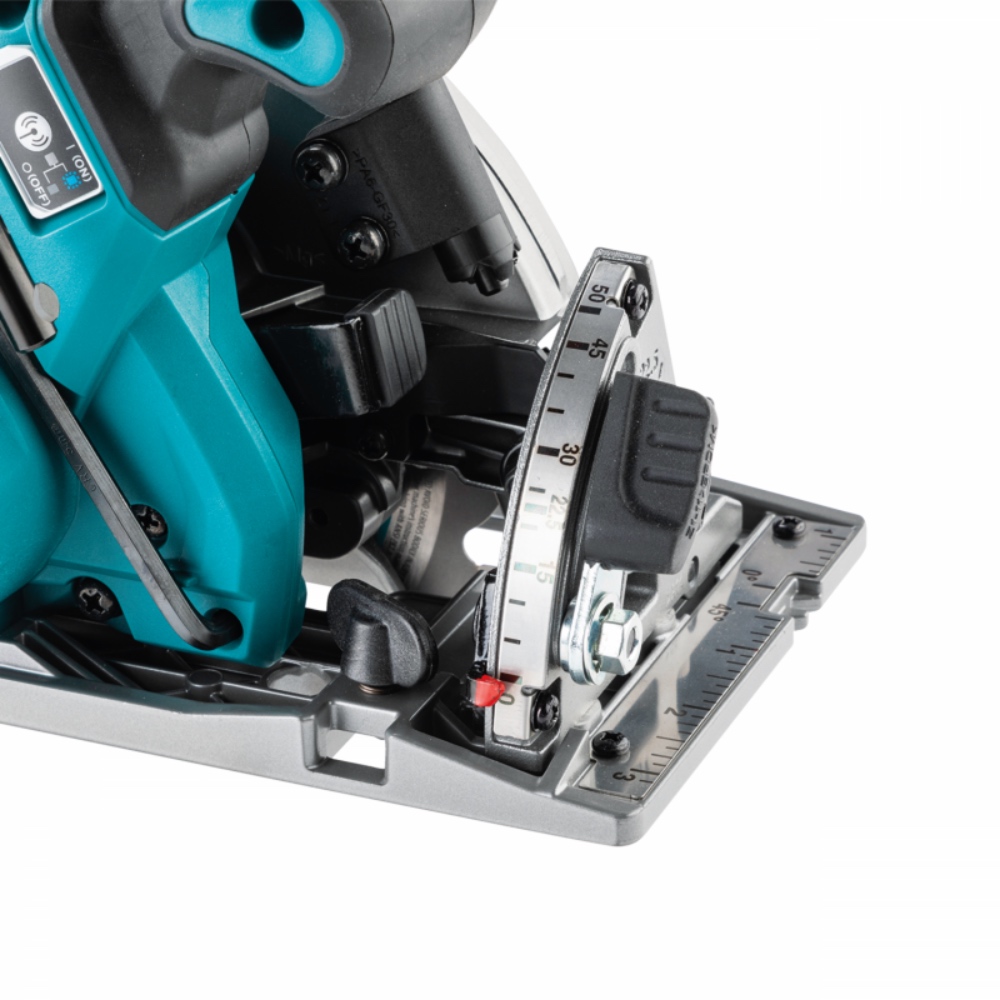

๐ Developed based on the compact design of DHS680, yet is powered by powerful 40Vmax XGT battery to provide excellent combination of high power and good maneuverability ๐ Compact design ๐ The machine's overall width has been decreased by reducing the number of motor core layers from 24 to 15, providing higher maneuverability in operation in tight places ๐ Auto-start Wireless System (AWS) connects to compatible vacuum cleaners via Bluetooth ๐ Magnesium diecast base, Magnesium diecast safety cover, Magnesium diecast blade case ๐ Metal guide for cutting line ๐ Easy-to-operate Lock-off button minimizes accidental start up ๐ Positive bevel stop (at 22.5°and 45°) ๐ BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life ๐ Electric brake for maximum productivity ๐ Twin LED lights with preglow and afterglow functions for better illumination and more accurate work ๐ Soft start suppresses start-up reaction for more control and better accuracy ๐ Constant speed control minimizes reduction in rotation speed under load ๐ Anti-restart function engineered to minimize motor start up when battery is inserted with switch locked on ๐ Soft grip provides increased comfort on the job ๐ Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions ๐ Tool hanger for hanging on a ladder or rafter ๐ Battery protection circuit protects against overloading, over-discharging and over-heating

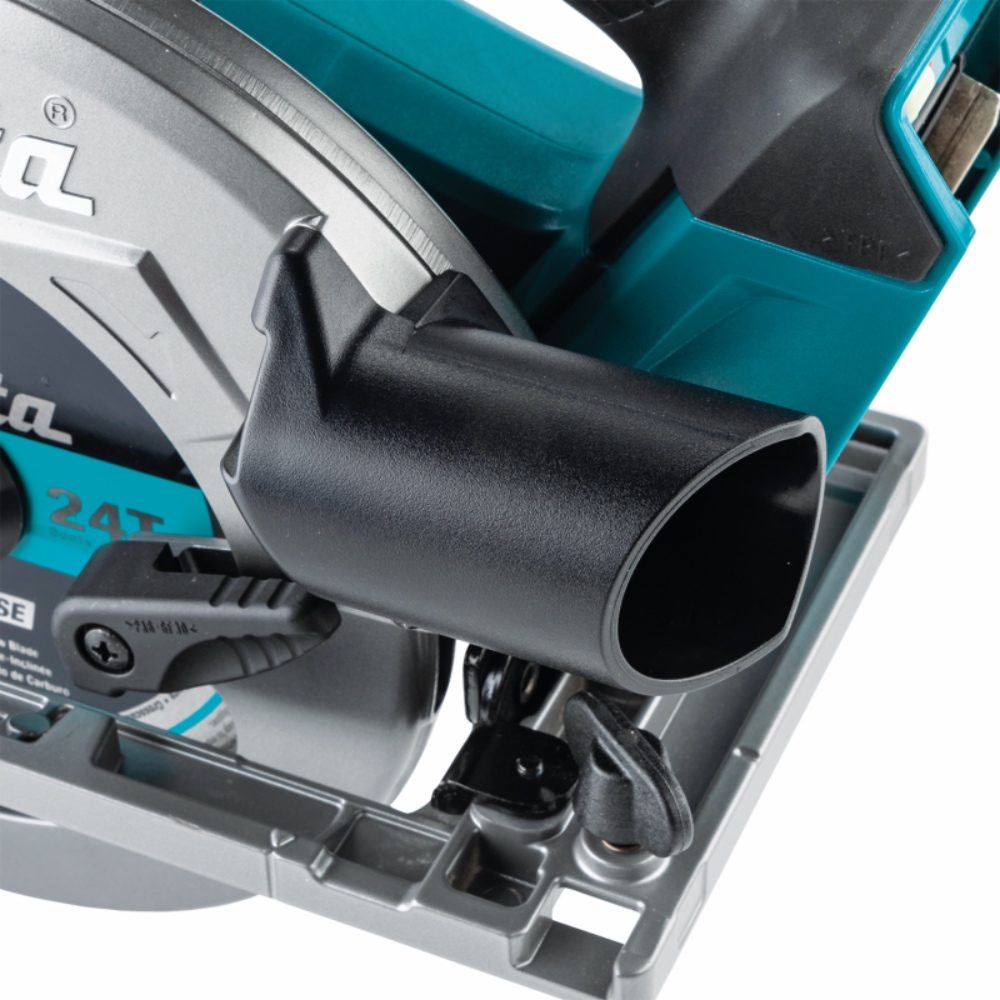

Standard Equipments : TCT saw blade, Guide rule (country-specific), Dust nozzle, Hex wrench


Technical specifications

Wheel Diameter 165 mm
Hole diameter 20 mm
Max Cutting Capacity 57 mm
No Load Speed 5,200 minˉ¹
Dimensions (L x W x H) 298 x 157 x 246 mm
Net weight 3.2. - 4.4 kg
Brake
Constant Speed
Soft Start
Dust Collection
Built-in-Job Light
