SP001G
Cordless Plunge Cut Saw
SP001G
Cordless Plunge Cut Saw
40Vmax Cordless Plunge Cut Saw 165 mm (6-1/2")
Features
- 40Vmax XGT BL Cordless 165 mm (6-1/2") Plunge Cut Saw

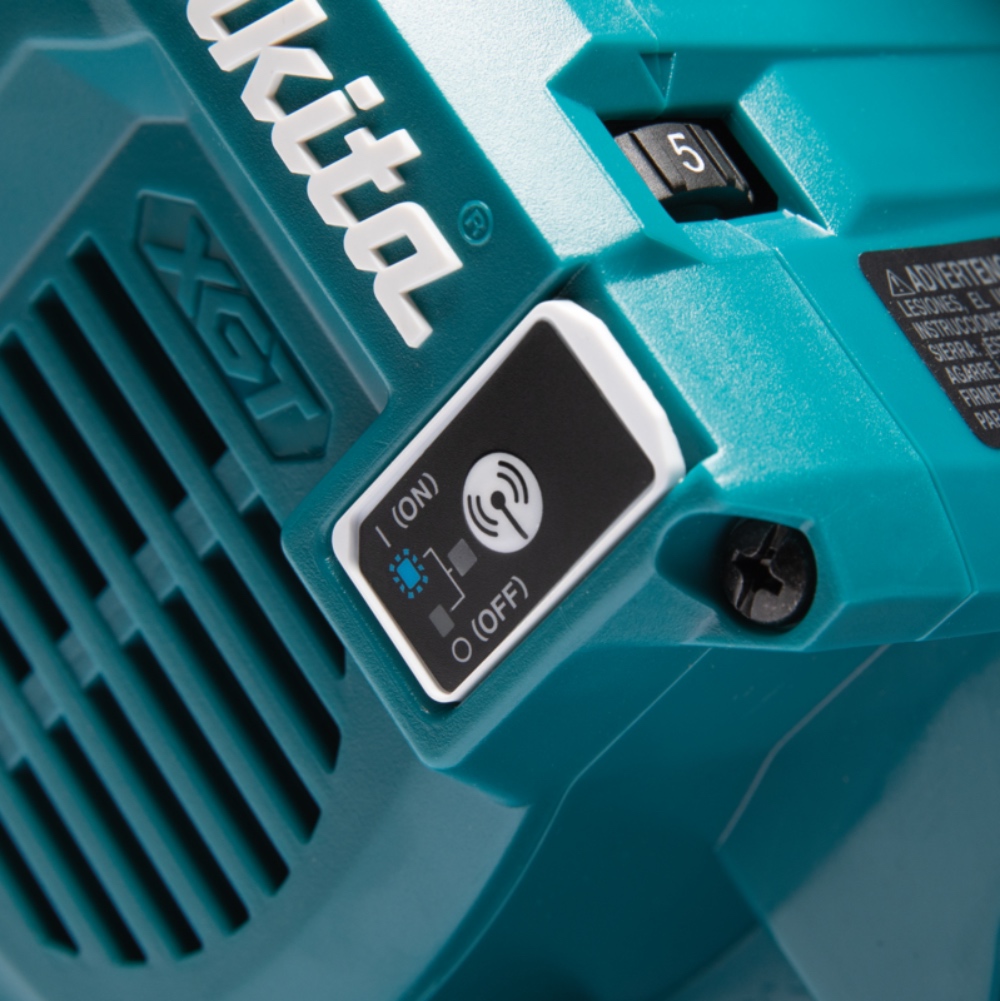

- Auto-start Wireless System (AWS) connects to vacuum cleaner with Bluetooth
- Constant speed control provides consistent surface finish
- Rotatable dust nozzle; Added two leaf springs enable to twist and lock the nozzle with a click in order to reduce unexpected rotation
- High water-resistance compatible with XPT

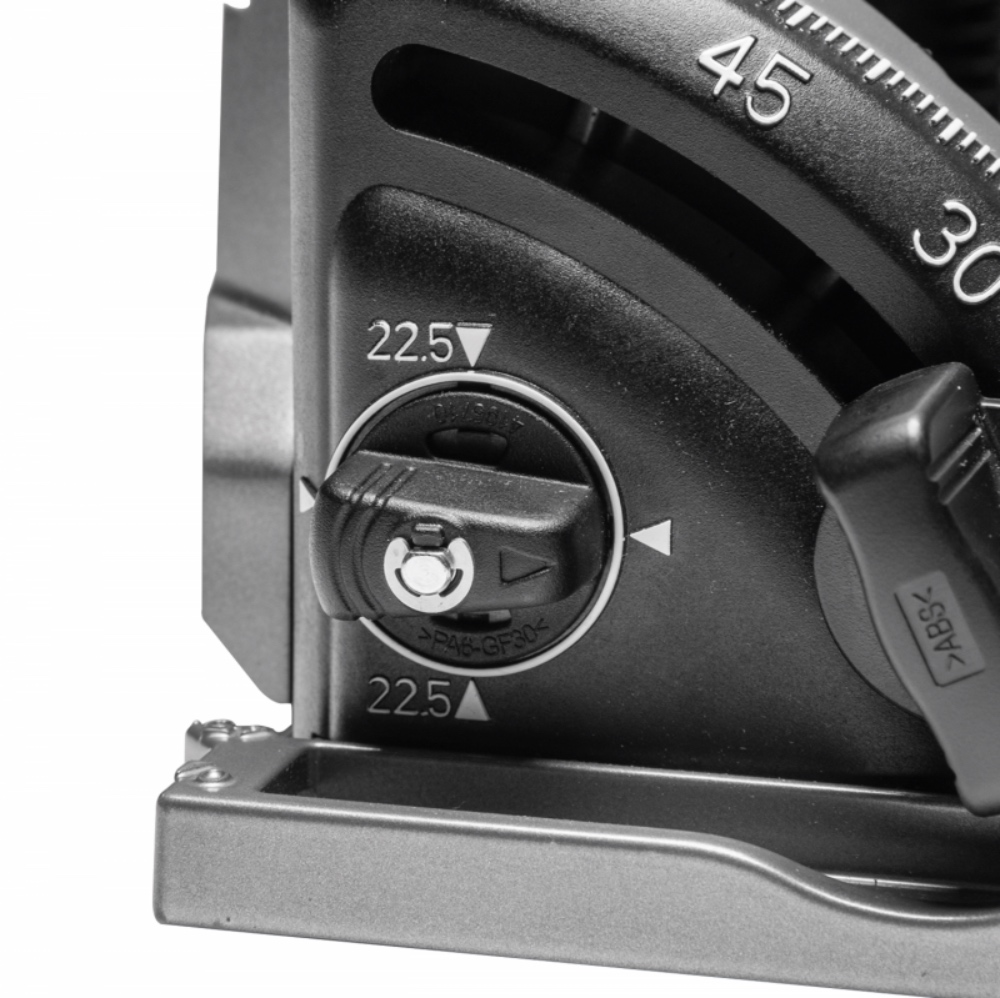

- Large cutting capacity (56 mm at 90º, 40 mm at 45º and 38 mm at 48º) and bevel capacity (-1° - 48°) with a positive stop at 22.5°
- Precision accurate cutting delivers a splinter-free mirror finish
- Depth stopper for scuffing enables to easily cut a preliminary groove at a depth of 2 mm

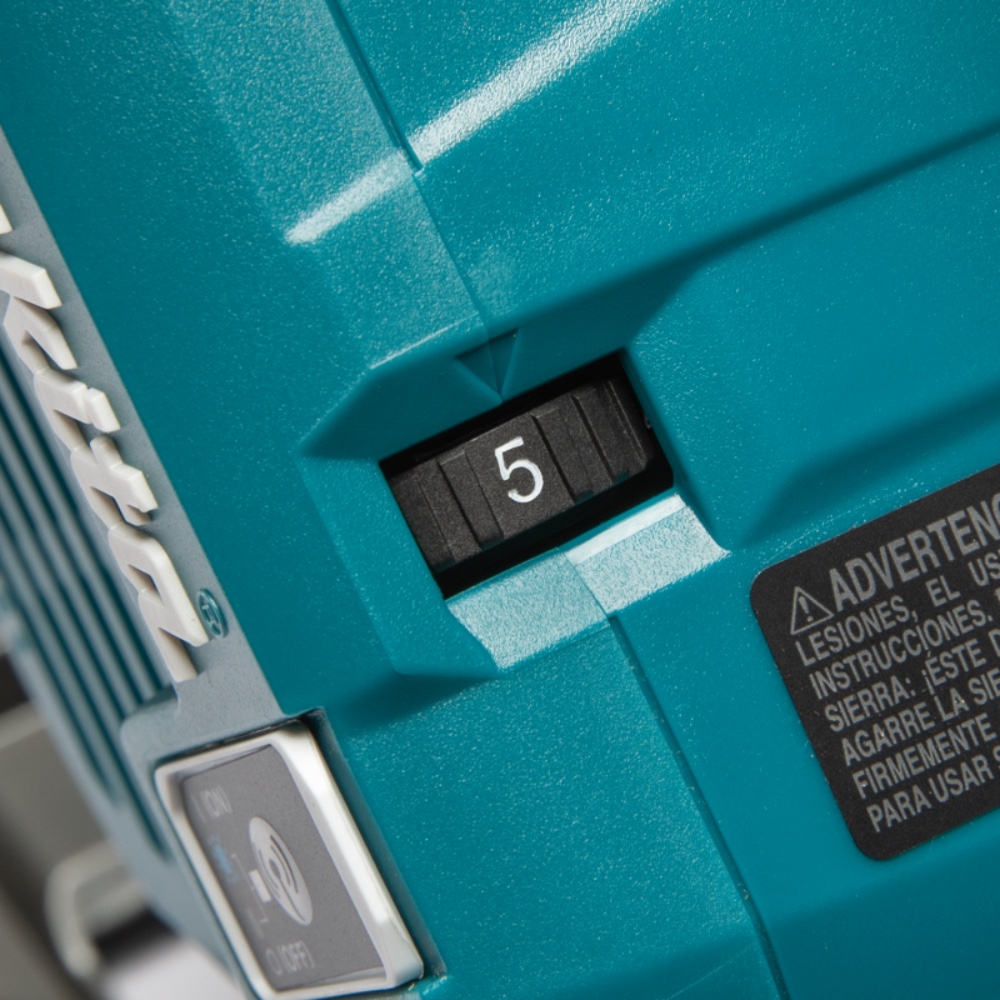

- Variable speed dial control (2,500 - 4,900 RPM) for optimum performance in a variety of materials
- Electronic soft start feature for smooth start-ups

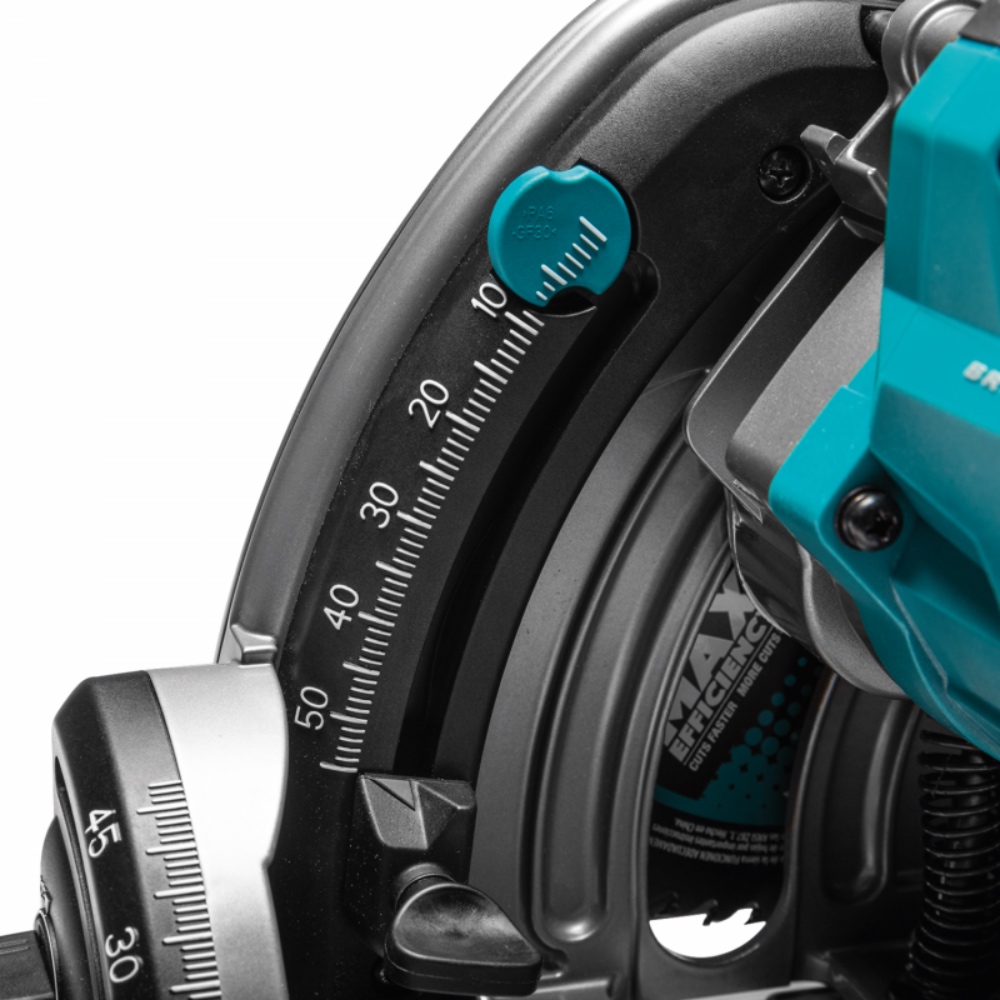

- Easy to set depth adjustment with large scale
- Magnesium components deliver a well balanced and lightweight saw

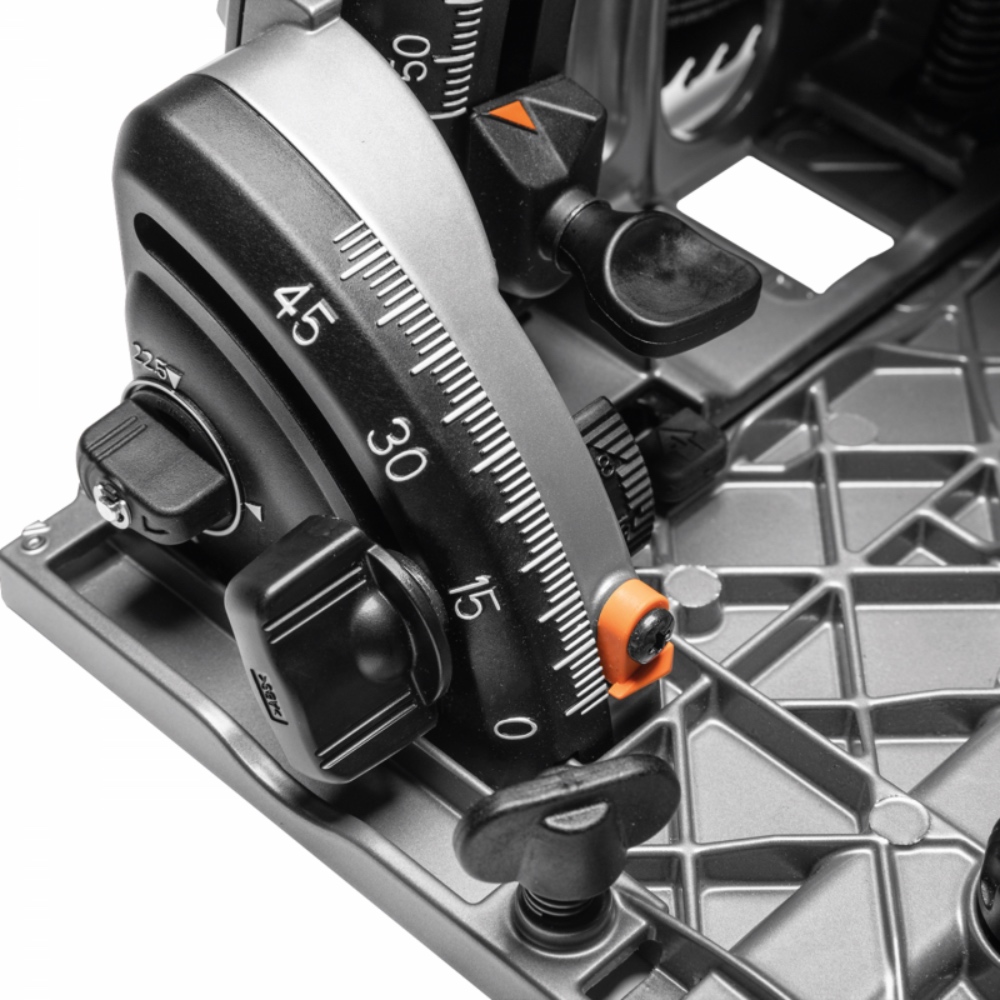

- Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts
- Locking lever holds the blade in position so that the wrench can be inserted through the hole in the blade case for easier blade installation.
- Electric brake for improved productivity.
- Rubberized handles for added comfort.
- Large rear dust port directs material away from the operator and easily connects to a vacuum system.
- Tip-resistant design minimizes the machine from falling down.
- Onboard hex wrench for fast and easy blade changes.
- Battery protection circuit protects against overloading, over-discharging and over-heating.

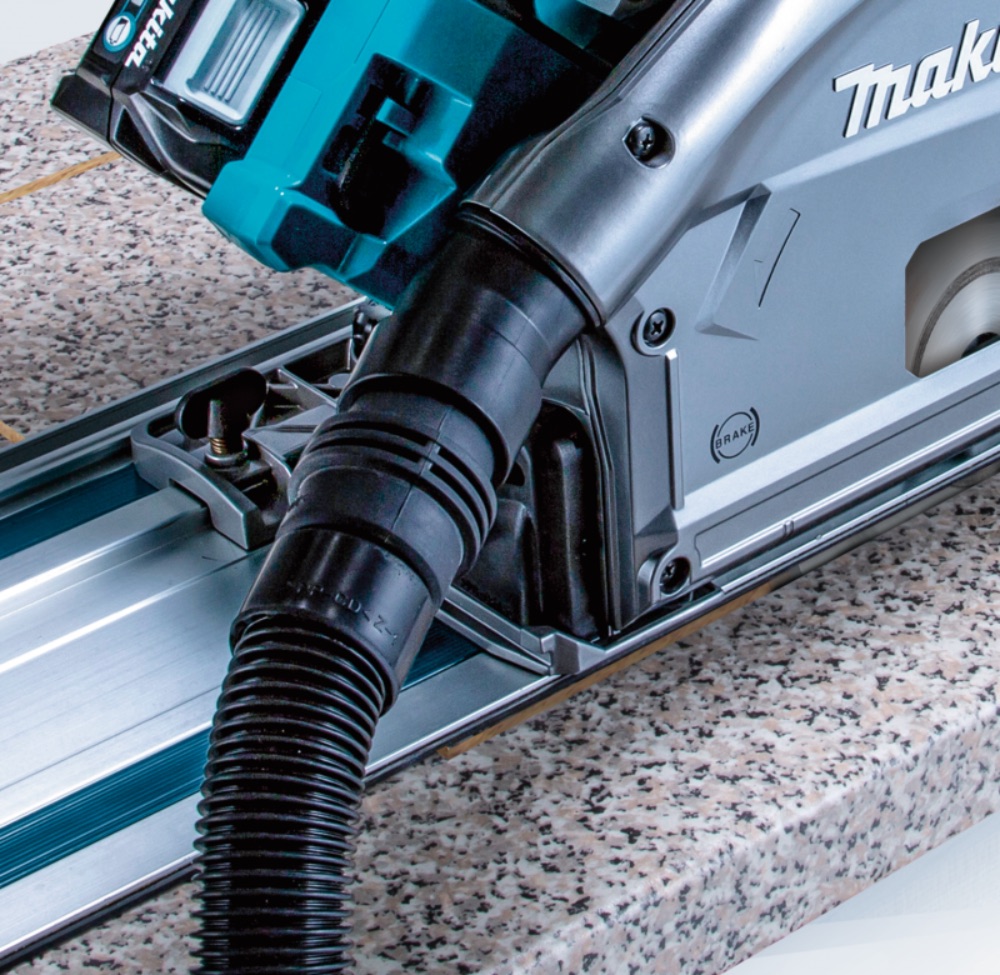

- Optional guide rail is attachable without adapter for increased maneuverability
Standard equipment: TCT saw blade, Hex wrench
Available options
Technical specifications
| Wheel Diameter | 165 mm |
|---|---|
| Hole diameter | 20 mm |
| Bevel angle | -1 - 48° |
| Max Cutting Capacity | 56 mm |
| Max Cutting Capacity 45° | 40 mm |
| No Load Speed | 2,500 - 4,900 minˉ¹ |
| Dimensions (L x W x H) | 347 x 221 x 271 mm |
| Net weight | 4.4 - 5.0 kg |
