RS001G
Cordless Rear Handle Saw



RS001G
Cordless Rear Handle Saw

40V max Cordless Rear Handle Saw 185 mm (7-1/4")

  

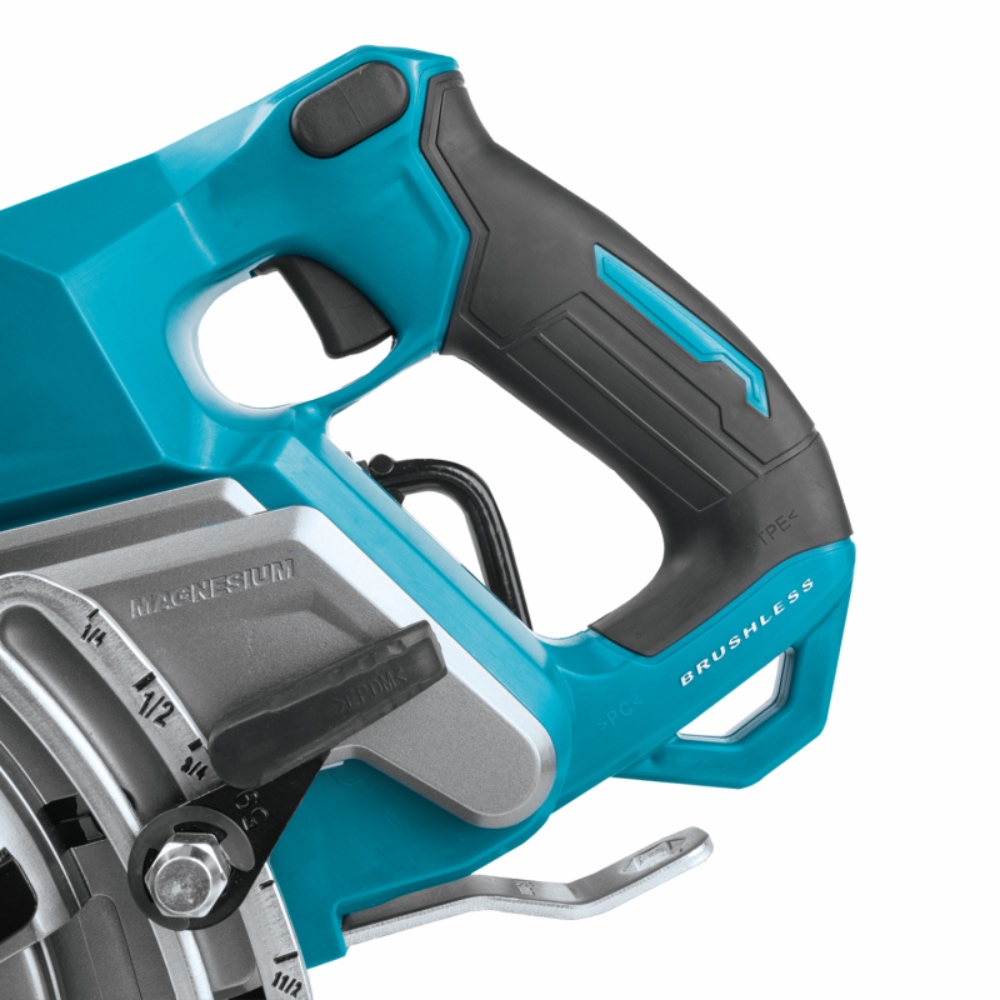

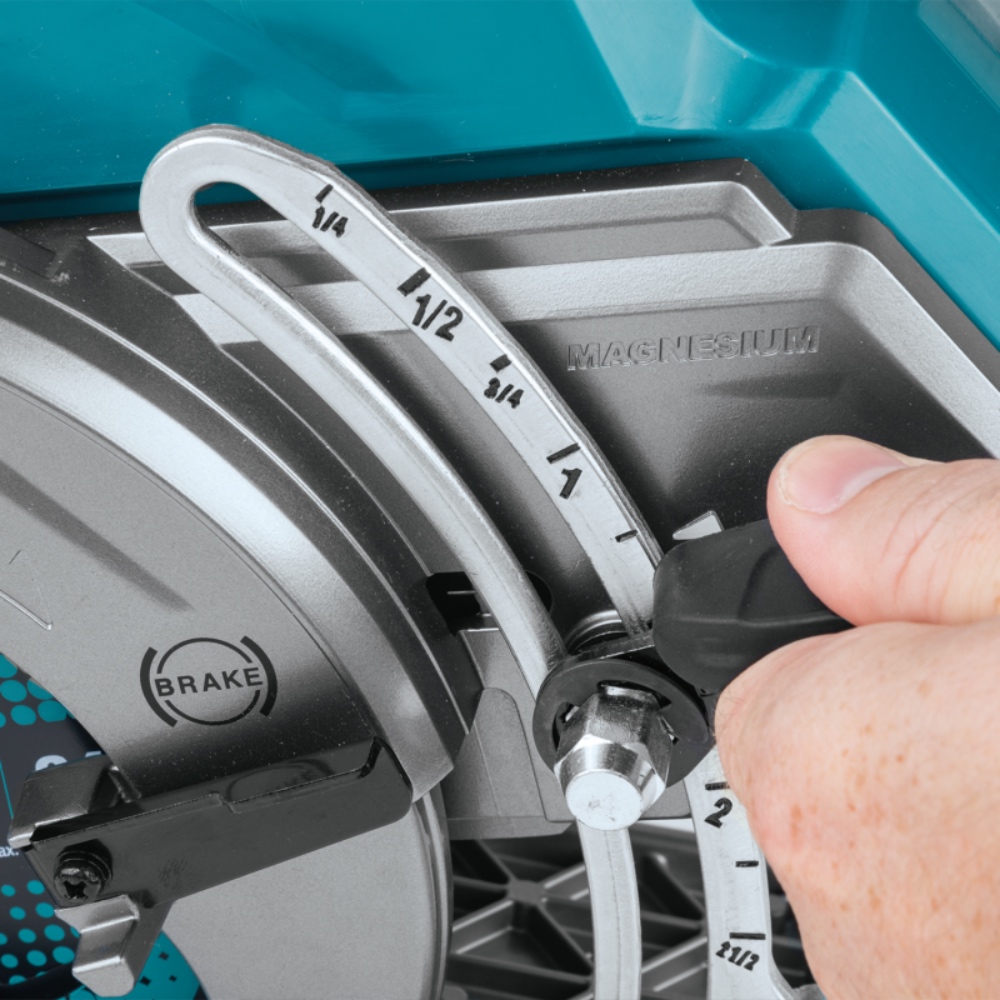

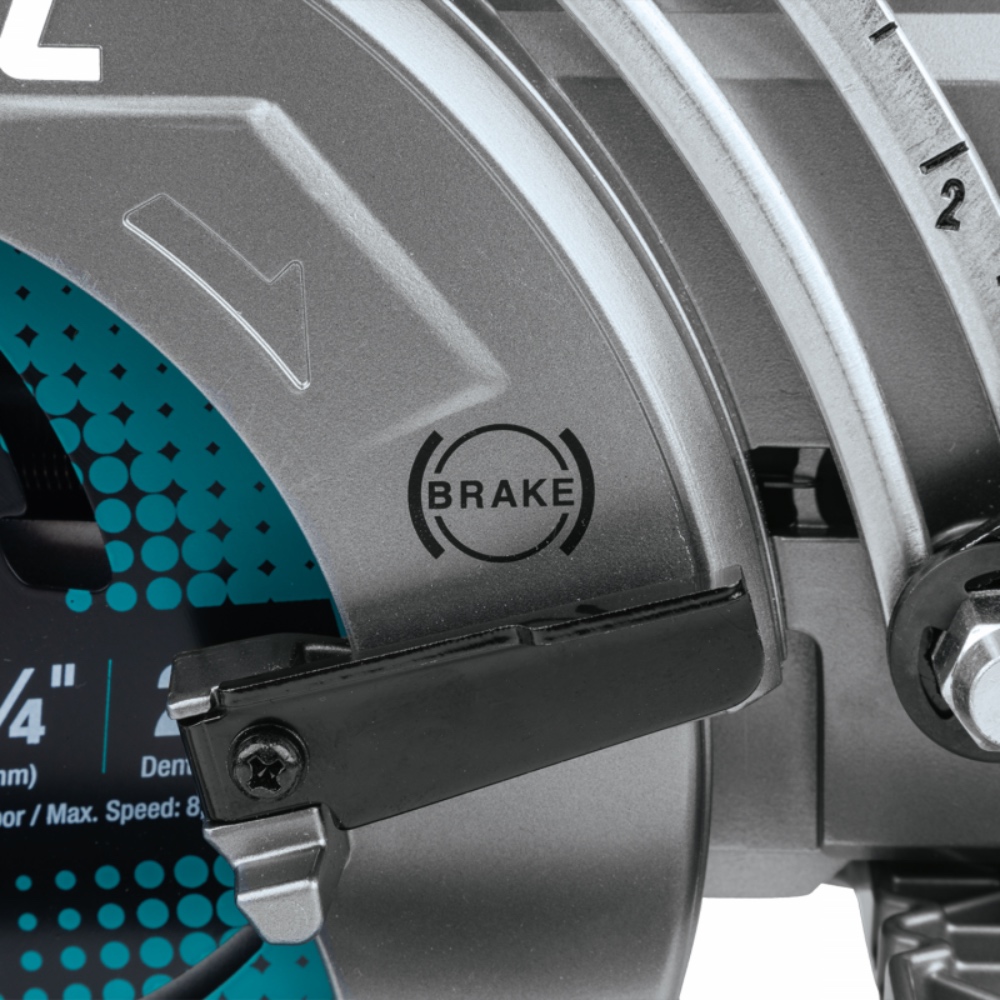

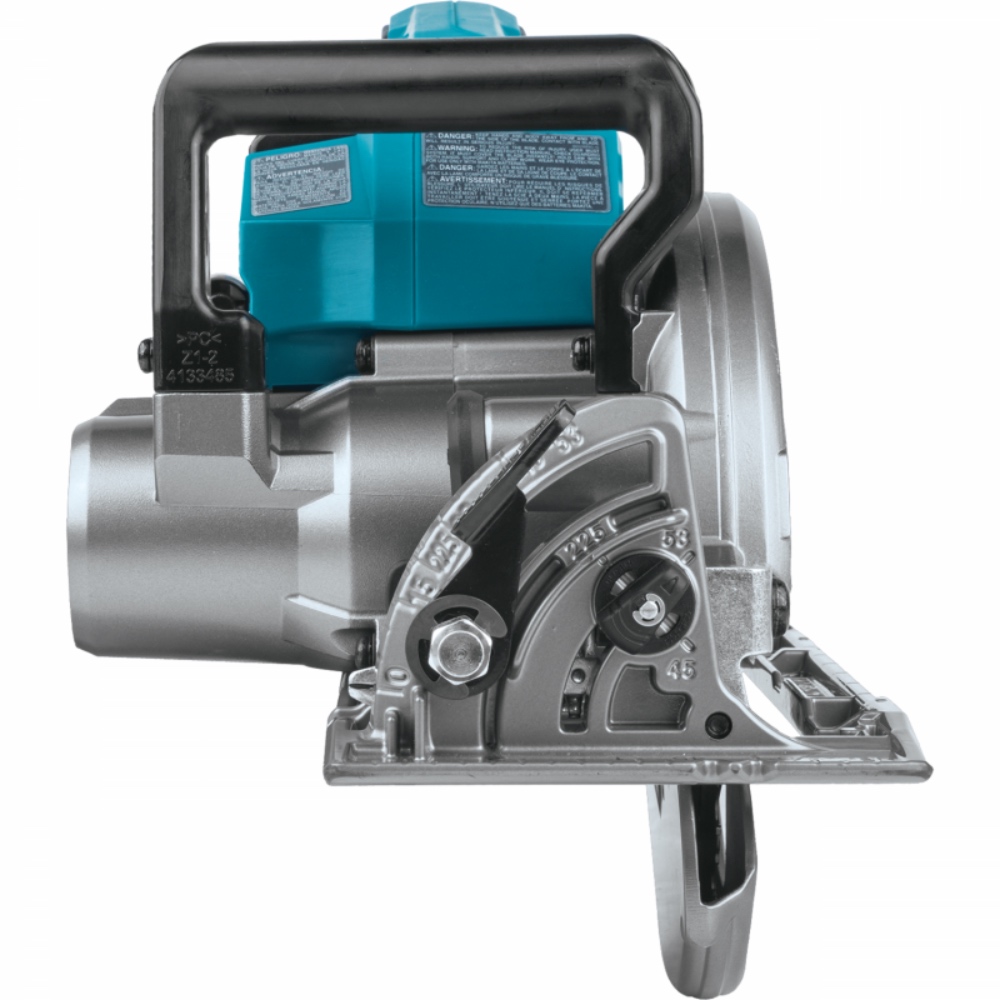

๐ High power 40Vmax XGT Li-Ion battery and an optimum BL motor enable higher cutting efficiency and more lightweight design ๐ 40Vmax XGT battery & BL motor deliver 6,400 RPM for fast cutting and ripping ๐ BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life ๐ Large cutting capacity (65 mm at 90°) and bevel capacity (90° - 53°) with a positive stop at 22.5° and 45° ๐ Cuts 3X material (63.5 mm or 2-1/2") in a single pass with a large 65 mm (2-9/16") cutting capacity at 90° ๐ Automatic torque Drive Technology (ADT) adjusts cutting speed and torque during cut for optimum performance ๐ Electric brake for maximum productivity ๐ Retractable, extra-wide tool hook secures the tool when not in use; Compatible with up to 66 mm width ;The machine can be hung onto, e.g., 2x lumbers or I-joist (with a width of 64mm), etc. ๐ Die-cast magnesium base and blade guard along with a die-cast aluminum blade cover and motor housing provide a lightweight, durable design ๐ Soft start minimizes start-up shock ๐ Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions ๐ Soft grip provides increased comfort on the job ๐ Lock-off (2 stage) safety switch for increased operator safety ๐ Battery protection circuit protects against overloading, over-discharging and over-heating

Standard Equipments : TCT saw blade, Offset wrench, Guide rule


Technical specifications

Wheel Diameter 185 mm
Hole diameter 20/ 30 mm
Max Cutting Capacity 65 mm
Max Cutting Capacity 45° 45 mm
No Load Speed 6,400 minˉ¹
Dimensions (L x W x H) 446 x 196 x 270 mm
Net weight 5.0 - 5.6 kg
Brake
Soft Start
Dust Collection
