SP6000
Plunge Cut Circular Saw
SP6000
Plunge Cut Circular Saw
Plunge Cut Circular Saw 165 mm (6-1/2") 1,300 W

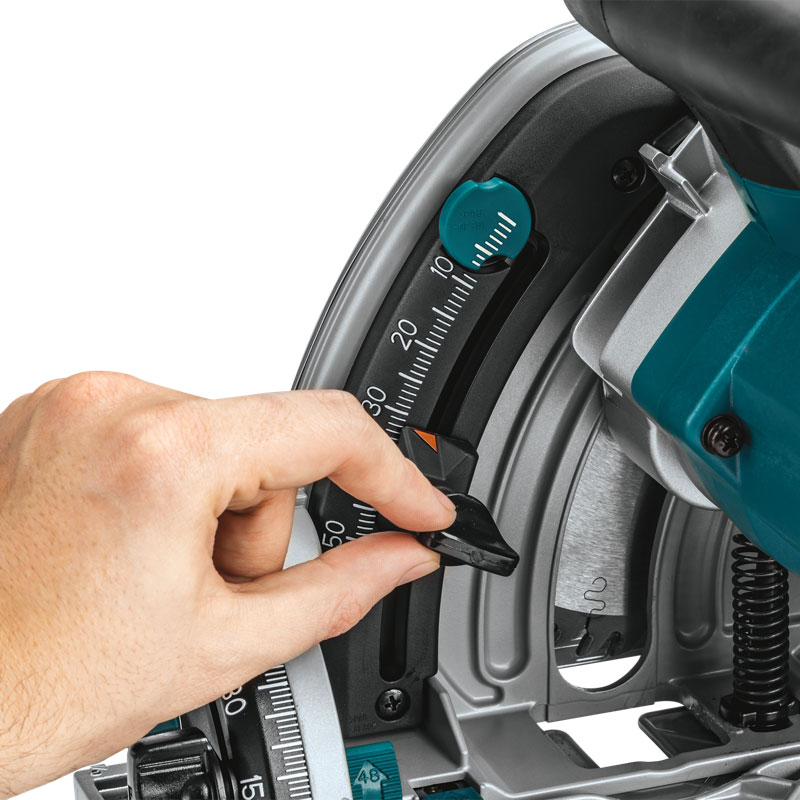

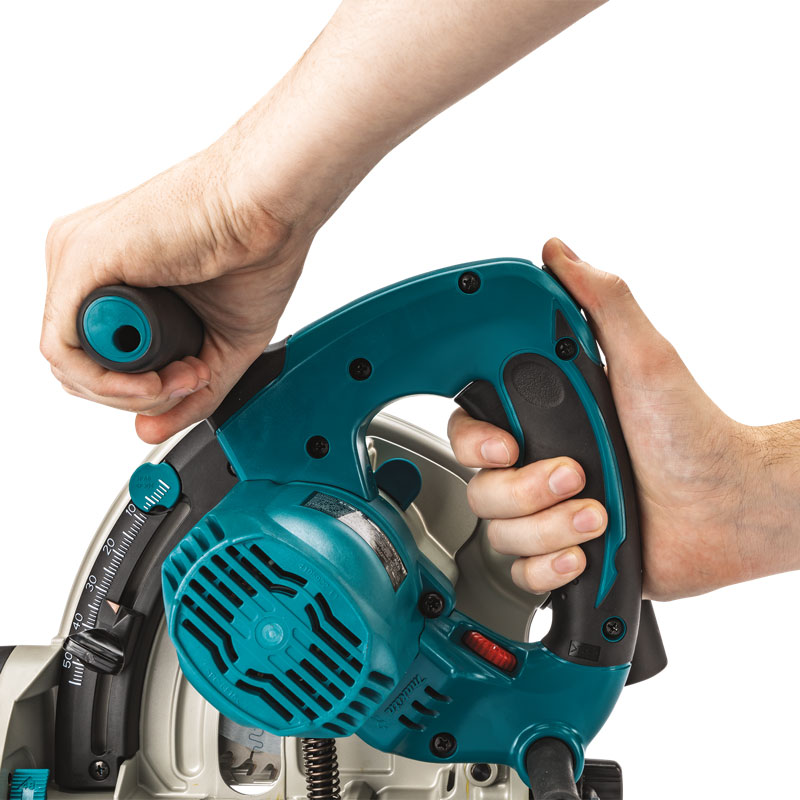

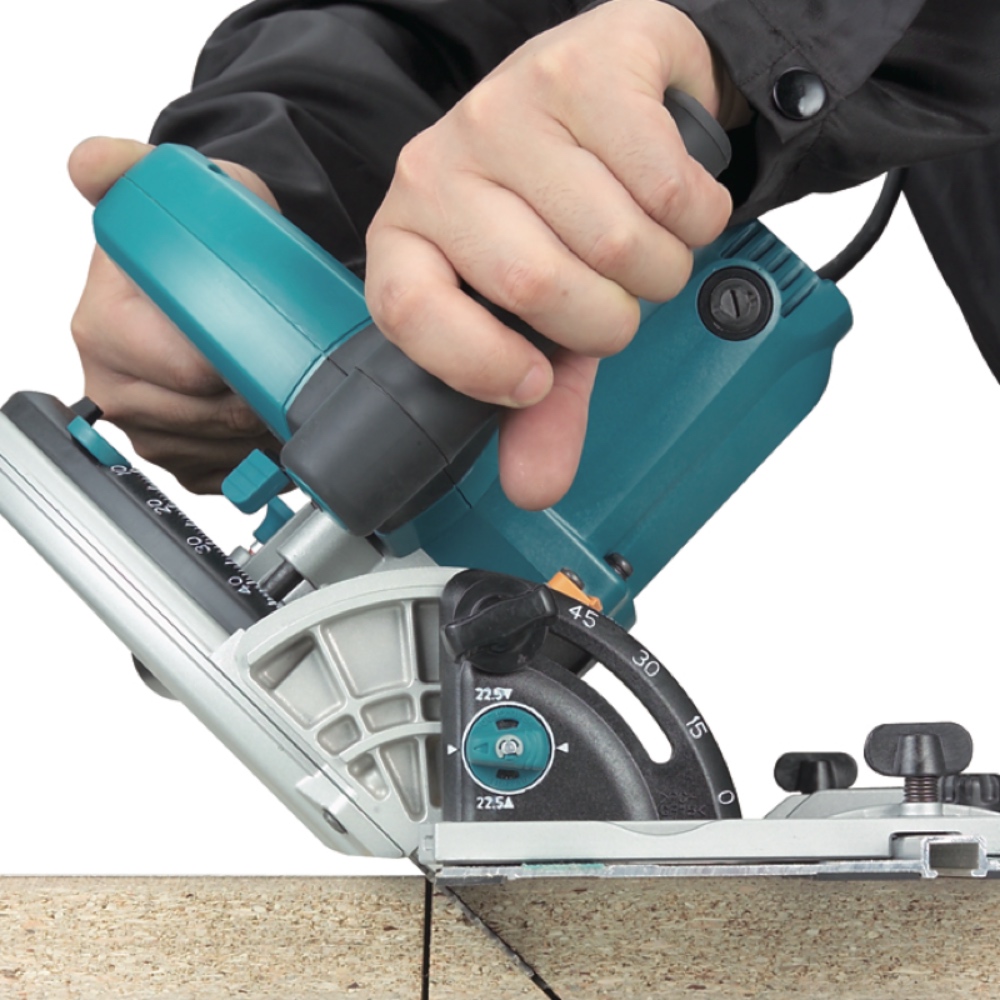

๐ Electronic speed control maintains constant speed under load for smooth cutting ๐ Variable speed dial control (2,200 - 6,400 RPM) for optimum performance in a variety of materials ๐ Powerful 1,300 W motor for continuous operation ๐ Electronic soft start feature for smooth start-ups ๐ Large cutting capacity (56 mm at 90º and 40 mm at 45º) ๐ Close-to-wall cutting; only 18 mm away from wall ๐ Depth stopper for splinter-free cutting enables to easily cut a preliminary groove at a depth of 2 mm ๐ Straight or bevel cutting; blade enters material on the same cutting line ๐ Easy to set depth adjustment with large scale ๐ Bevel capability (-1º to 48º) with positive stops at 22.5º and 45º ๐ Magnesium components deliver a well balanced and lightweight saw ๐ Dual front and rear bevel supports provide additional rigidity for precise ๐ Blade wrench attaches to the saw for fast and convenient blade changes ๐ Large 36 mm (1-7/16") rear dust port directs material away from the operator and easily connects to a vacuum system. ๐ Double insulated
Standard Equipments : Carbide-tipped saw blade, Hex wrench
Technical specifications
Continuous Rating Input | 1,300 W |
---|---|
Wheel Diameter | 165 mm |
Hole diameter | 20 mm |
Max Cutting Capacity | 56 mm |
Max Cutting Capacity 45° | 40 mm |
No Load Speed | 2,200 - 6,400 minˉ¹ |
Dimensions (L x W x H) | 341 x 225 x 250 mm |
Net weight | 4.2 kg |
Power Supple Cord | 2.5 m |
Carbon Brush | 303 |
