(EN / TH)

M2401B
Portable Cut-off

M2401B
Portable Cut-off

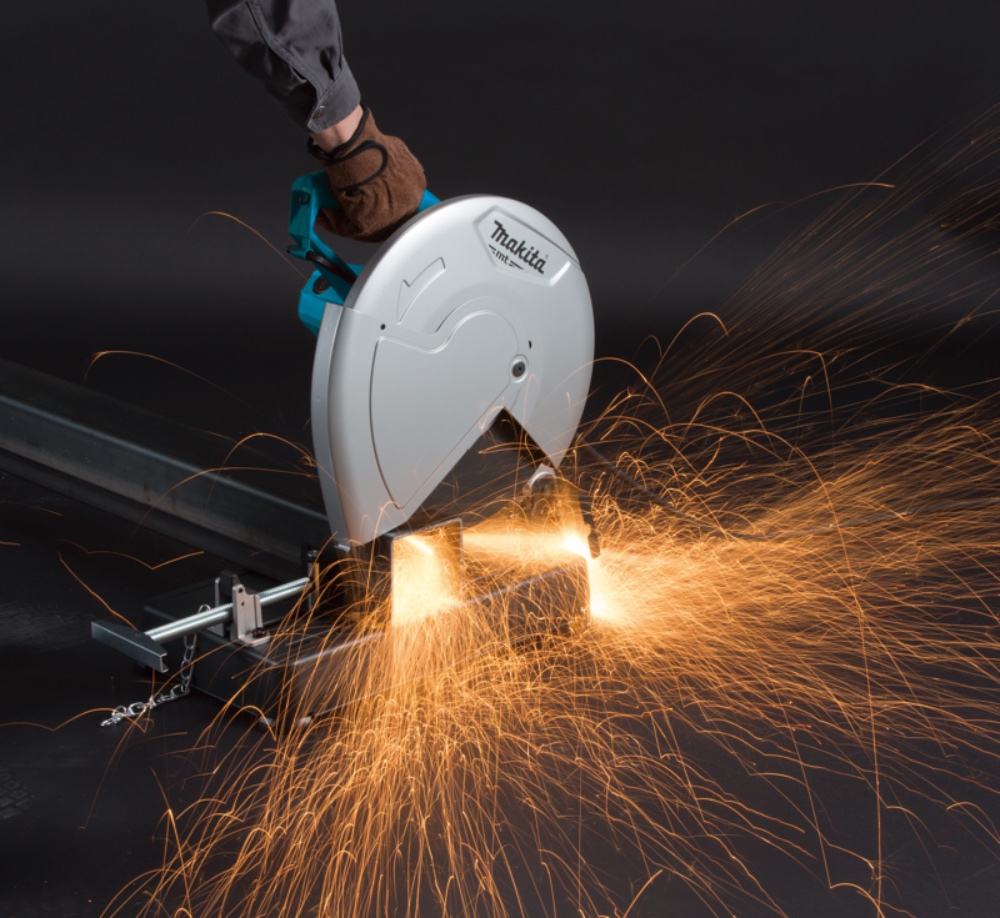

355 mm (14") 2,000 W Portable Cut-Off

  
Double Insulation

Features

High performance and durability at less expense

  • Large cutting capacity; Cuts up to 127 mm (5") round and 102 mm (4") x 194 mm (7-5/8") rectangular
  • Powerful 2,000W motor delivers 3,800 RPM for superior performance and durability
  • Adjustable spark guard designed to divert sparks
  • Two-stage lock-off power button for operator convenience (country-specific)
  • Adjustable guide plate provides three angle settings up to 45° L/R
  • Chain secures cutting head in down position for transport and storage
  • Large ergonomic handle for operator comfort when performing various cutting applications
  • Carrying handle is ergonomically positioned to provide a balanced weight distribution for increased comfort while transporting the saw
  • Lightweight for increased job site portability
  • Quick release vise for increased operator convenience
  • Onboard hex wrench for fast and easy blade changes and keeping it from lost
  • Spindle lock for easy wheel changes
  • Externally accessible brushes for easy serviceability
  • Double insulated


Technical specifications

Continuous Rating Input 2,000 W
Wheel Diameter 355 mm
No Load Speed 3,800 minˉ¹
Capacity at 90° (Round) 127 mm
Capacity at 90° (Square) 119 x 119 mm
Capacity at 45° (Round) 127 mm
Capacity at 45° (Square) 106 x 106 mm
Vibration Level 3.0 m/s²
Sound Pressure Level 100 dB(A)
Sound Power Level 111 dB(A)
Dimensions (L x W x H) 500 x 280 x 620 mm
Net weight 13.7 kg
Power Supple Cord 2.5 m
Carbon Brush 203
