M2403B
Portable Cut-off
M2403B
Portable Cut-off

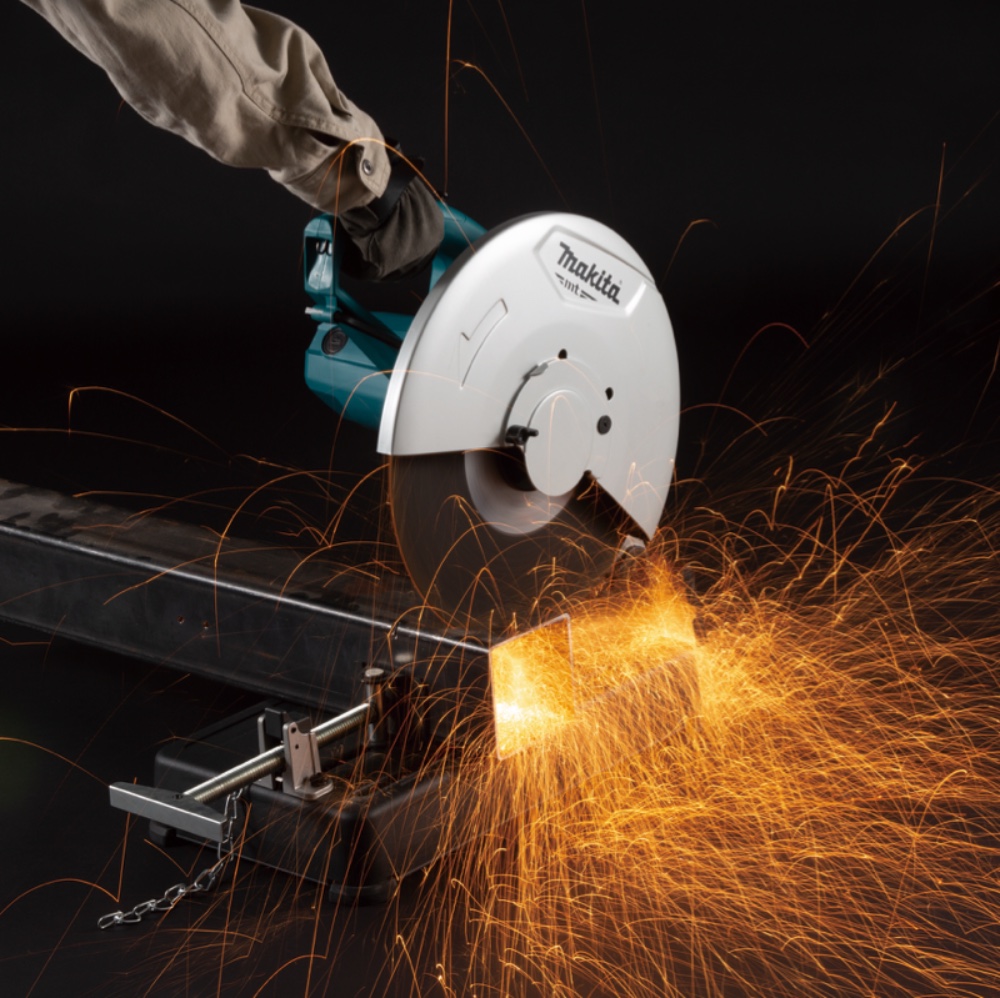

355 mm (14") 2,200 W Portable Cut-Off
๐ High performance and durability at less expense ๐ Powerful 2,200 W motor delivers 3,900 RPM for superior performance and durability ๐ Large cutting capacity; Cuts up to 127 mm (5") round and 102 mm (4") x 194 mm (7-5/8") rectangular ๐ Adjustable spark guard designed to divert sparks ๐ Two-stage lock-off power button for operator convenience (country-specific) ๐ Adjustable guide plate provides three angle settings up to 45° L/R ๐ Large ergonomic handle (vertical) for operator comfort when performing various cutting applications ๐ Lightweight for increased job site portability
Standard Equipments : Cut-off wheel, Hex wrench
Technical specifications
| Continuous Rating Input | 2,200 W |
|---|---|
| Wheel Diameter | 355 mm |
| No Load Speed | 3,800 minˉ¹ |
| Capacity at 90° (Round) | 127 mm |
| Capacity at 90° (Square) | 119 x 119 mm |
| Capacity at 45° (Round) | 127 mm |
| Capacity at 45° (Square) | 106 x 106 mm |
| Vibration Level | 3.5 m/s² |
| Sound Pressure Level | 99 dB(A) |
| Sound Power Level | 109 dB(A) |
| Dimensions (L x W x H) | 515 x 280 x 640 mm |
| Net weight | 14.3 kg |
| Power Supple Cord | 2.0 m |
| Carbon Brush | 203 |
