M2402B
Portable Cut-off
M2402B
Portable Cut-off

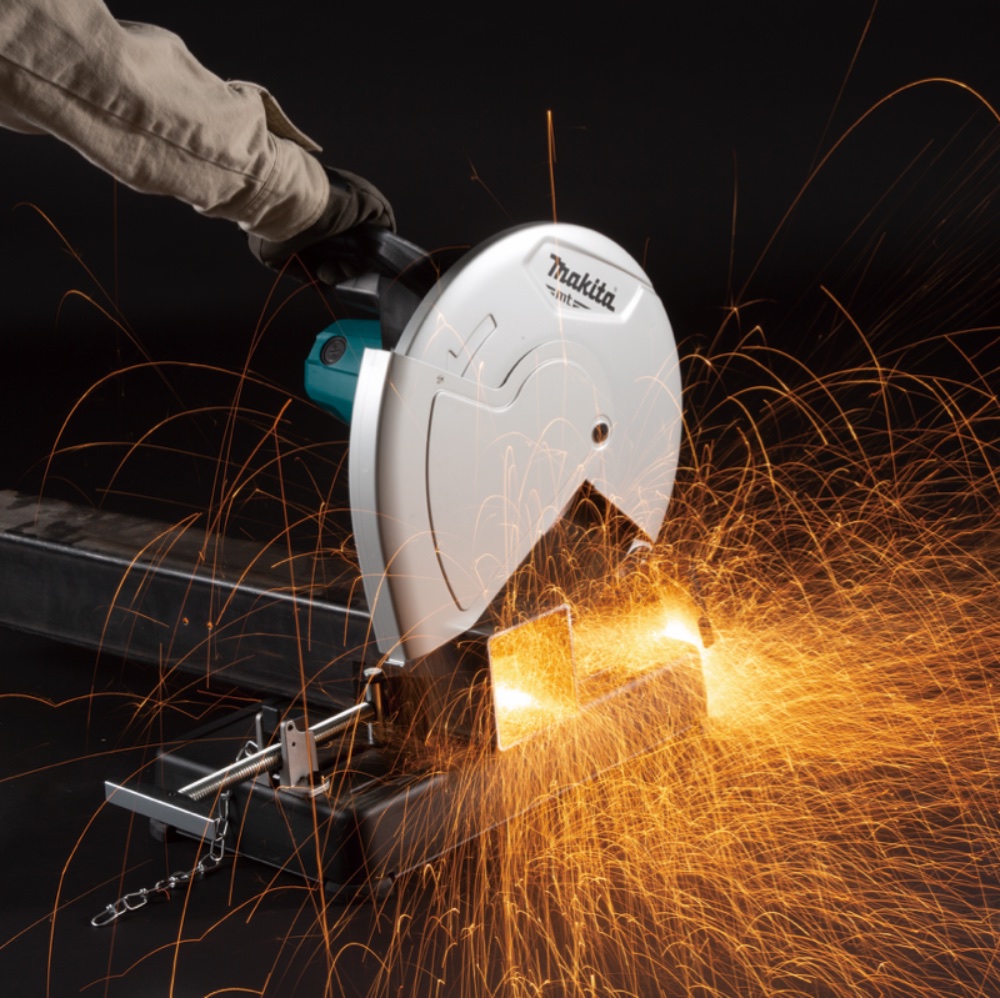

355 mm (14") 2,200 W Portable Cut-Off
Features
- 2,200 W continuous rating input (for high voltage areas only); The same high value as the competing models is achieved by changing the armature winding and by redesigning the air-cooling
- High performance and durability at less expense
- Powerful 2,200 W motor delivers 3,900 RPM for superior performance and durability
- Large cutting capacity; Cuts up to 127 mm (5") round and 102 mm (4") x 194 mm (7-5/8") rectangular
- Adjustable spark guard designed to divert sparks
- Two-stage lock-off power button for operator convenience (country-specific)
- Adjustable guide plate provides three angle settings up to 45° L/R
- Chain secures cutting head in down position for transport and storage

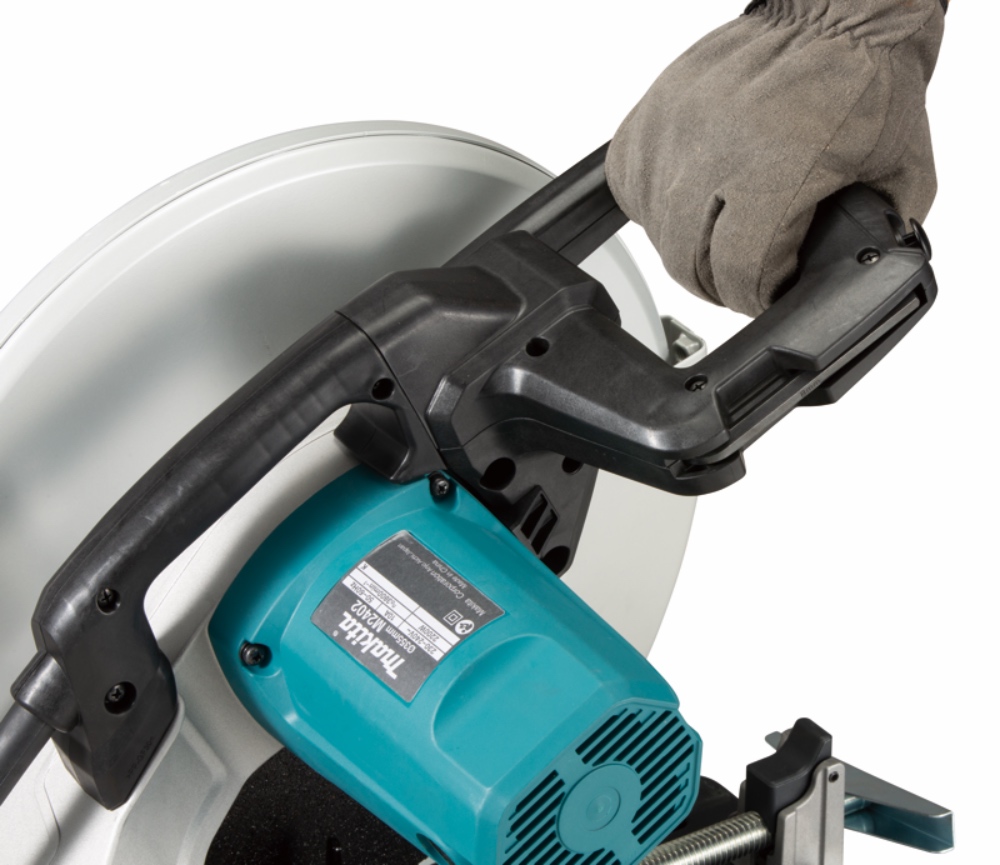

- Large ergonomic handle (horizontal) allows for smooth saw head operation with reduced fatigue
- Carrying handle is ergonomically positioned to provide a balanced weight distribution for increased comfort while transporting the saw
- Lightweight for increased job site portability
- Quick release vise for increased operator convenience
- Onboard hex wrench for fast and easy blade changes and keeping it from lost
- Spindle lock for easy wheel changes
- Externally accessible brushes for easy serviceability
- Double insulated
Technical specifications
| Continuous Rating Input | 2,200 W |
|---|---|
| Wheel Diameter | 355 mm |
| No Load Speed | 3,800 minˉ¹ |
| Capacity at 90° (Round) | 127 mm |
| Capacity at 90° (Square) | 119 x 119 mm |
| Capacity at 45° (Round) | 127 mm |
| Capacity at 45° (Square) | 106 x 106 mm |
| Vibration Level | 4.5 m/s² |
| Sound Pressure Level | 98 dB(A) |
| Sound Power Level | 108 dB(A) |
| Dimensions (L x W x H) | 500 x 280 x 630 mm |
| Net weight | 15.7 kg |
| Power Supple Cord | 2.5 m |
| Carbon Brush | 203 |
