DTD158

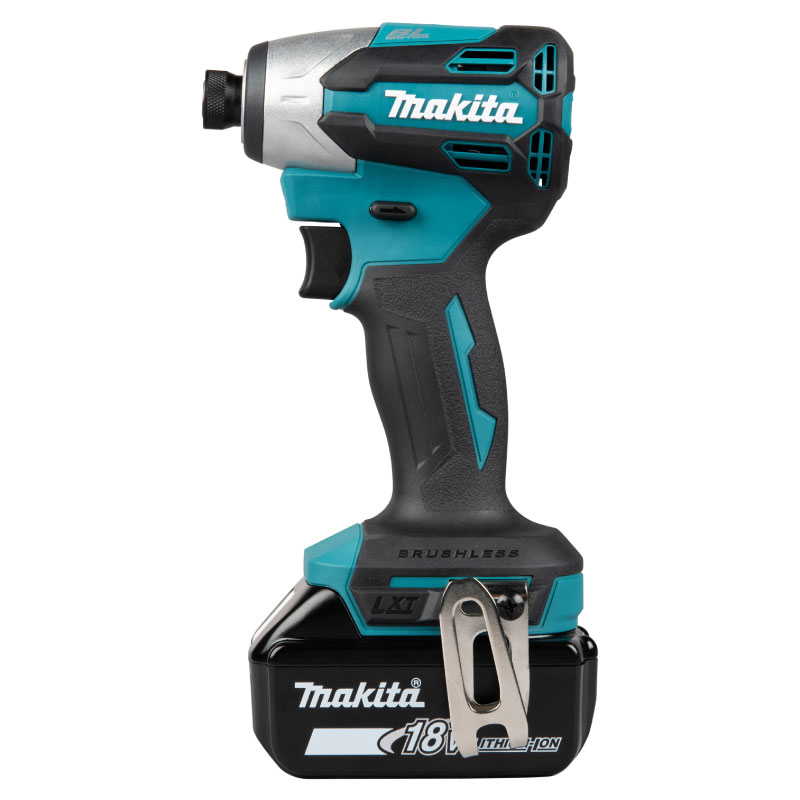

Cordless Impact Driver

DTD158 Parts List (1.50 MB)

DTD158 Leaflet (4.71 MB)

DTD158
Cordless Impact Driver

18V Cordless Impact Driver 170 N·m

  
Variable Speed
Brake
Reversing
Built-in-Job Light
Carrying Case

Features

  • Easy-to-Handle Basic Impact Driver with Optimal Battery location
  • Higher speed 3,400 RPM, More powerful 170 N·m (1,500 in.lbs.) and More compact 125 mm long
  • BL motor delivers 3,400 max RPM and 170 N·m (1,500 in.lbs.) of max torque
  • Compact and lightweight design

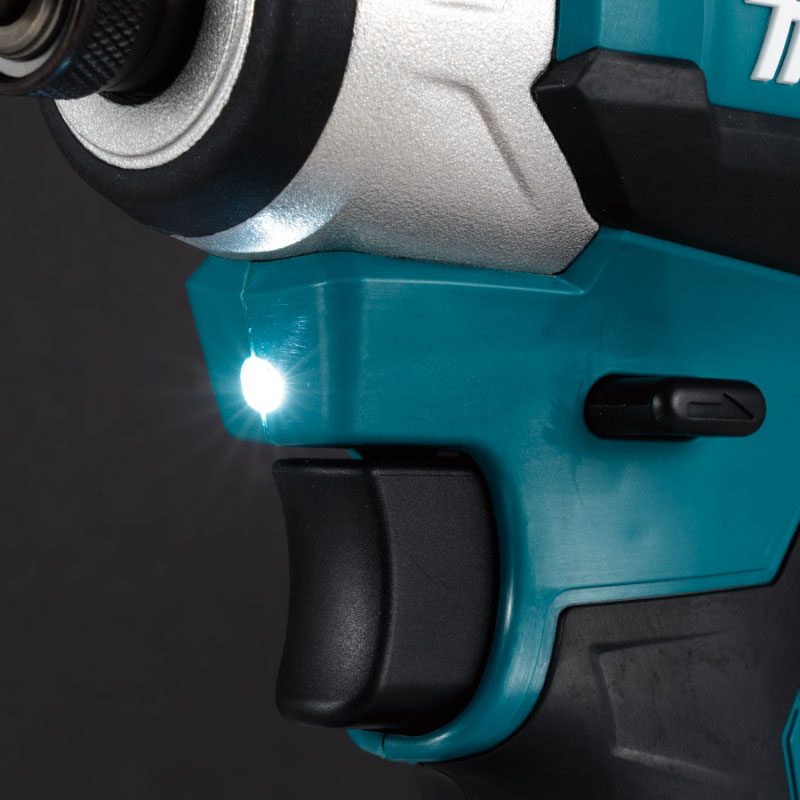

  • Single LED light with preglow and afterglow functions
  • Water-resistance compatible with XPT

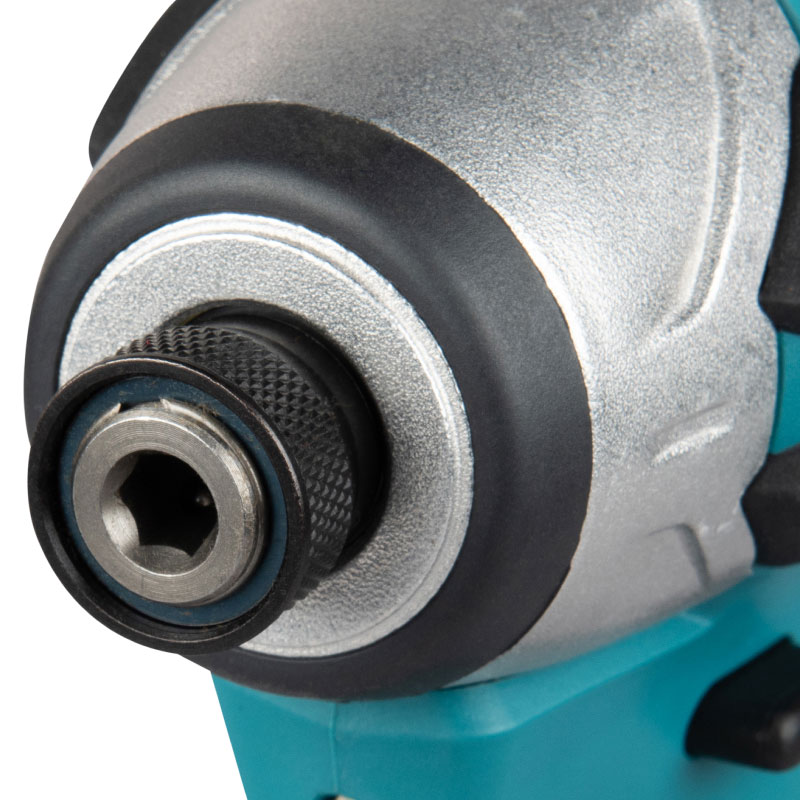

  • One-touch bit installation
    • Reduced resistance ensures smoother installation.
    • Reduces the chance of the bit coming loose.
    (Same structure as DTD173.)

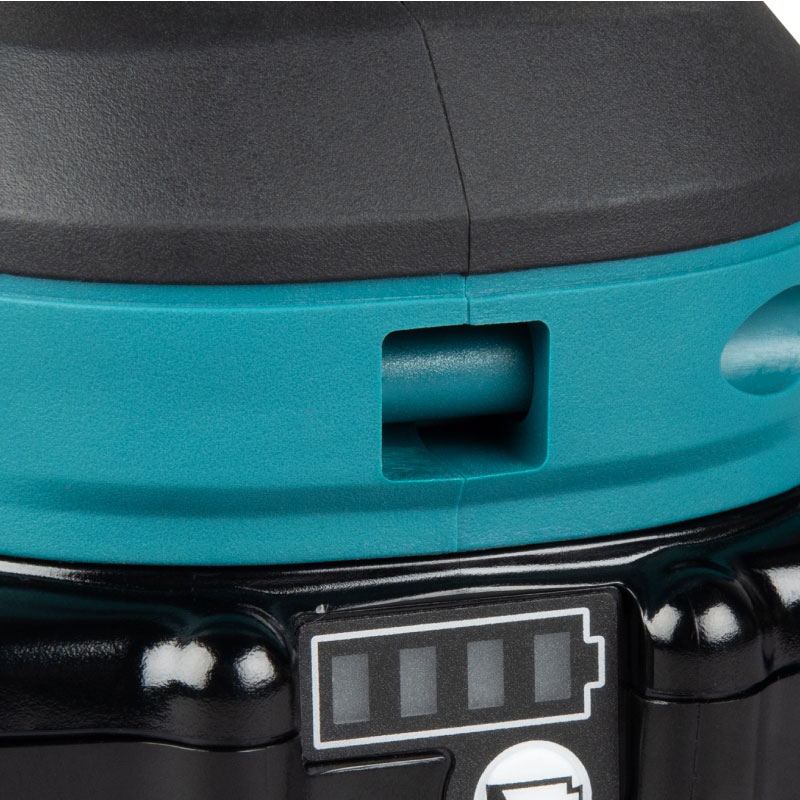

  • Optimal battery location
    The center of gravity has been moved closer to the center line of the grip, by locating the battery 12mm backward compared with the current model DTD153, reducing the strain on the wrist during operation.
    (Same as DTD173.)
  • Enhanced price competitiveness
    Designed with optimized component materials and design, including the switch assembly, this model achieves significant cost reduction compared with the current model DTD153, enhancing price competitiveness.
  • BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
  • BL motor with high power to weight and size ratio
  • Variable speed (0-3,400 RPM & 0-3,600 IPM) for a wide range of fastening applications
  • Battery protection circuit protects against overloading, over-discharging and over-heating

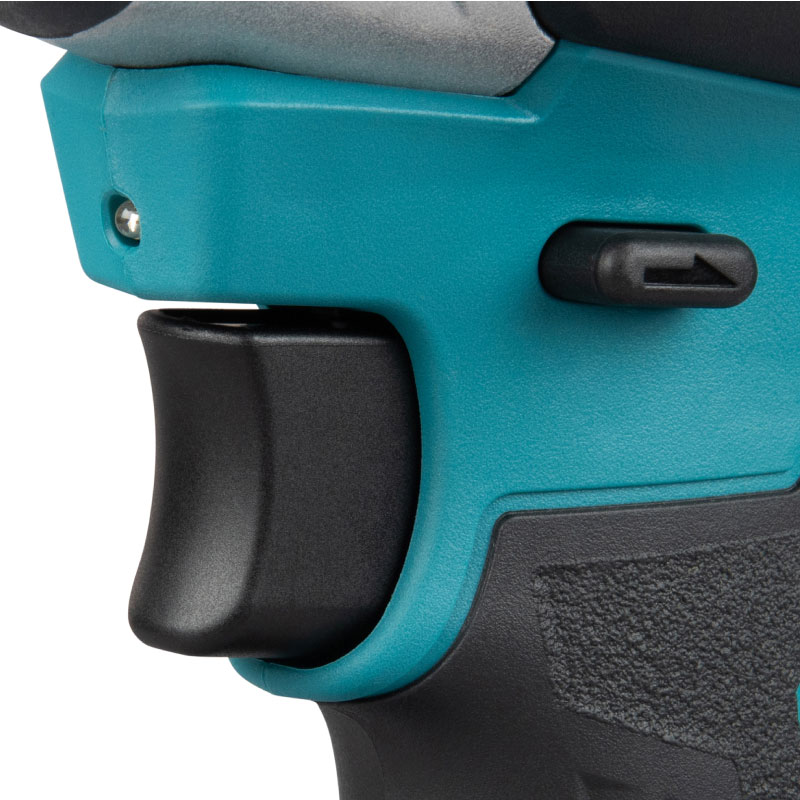

  • Reversing switch is conveniently located
  • Electric brake for maximum productivity and increased operator safety

Standard equipment : Hook, Hand strap


Parts List
(1.50 MB)


Leaflet
(4.71 MB)

Available options

DTD158Z
Tool only

DTD158WVE
Battery 18V LXT Basic 2Ah x2 , Charger DCB18WA


Technical specifications

Max fastening torque 170 N·m
No Load Speed 0 - 3,400 minˉ¹
Impacts Per Minute 0 - 3,600 minˉ¹
Capacity Machine screw M4 - M8
Capacity Standard bolt M5 - M16
Driving shank (Hex) 6.35 mm
Dimensions (L x W x H) 125 x 81 x 233 - 251 mm
Net weight 1.3 - 1.6 kg
