(EN / TH)

DTD172
Cordless Impact Driver

DTD172 Parts List (0.94 MB)

DTD172 Leaflet (7.90 MB)

DTD172
Cordless Impact Driver

18V Cordless Impact Driver 180 N·m

  
Variable Speed
Brake
Reversing
Electronic 4-Speed
Built-in-Job Light

Features

  • Tool head slimmer than DTD171 enables easy screwdriving in tight corners or confined spaces
  • Slimmer tool body due to smaller controller circuit
  • Compact tool body with a shorter overall length of 114 mm achieved by using redesigned smaller parts
  • Light mode enables to use DTD172 as a handy light on dark job sites
  • Anti-bit wobbling structure
    Two ball bearings are used to securely hold the anvil for reduced bit wobbling

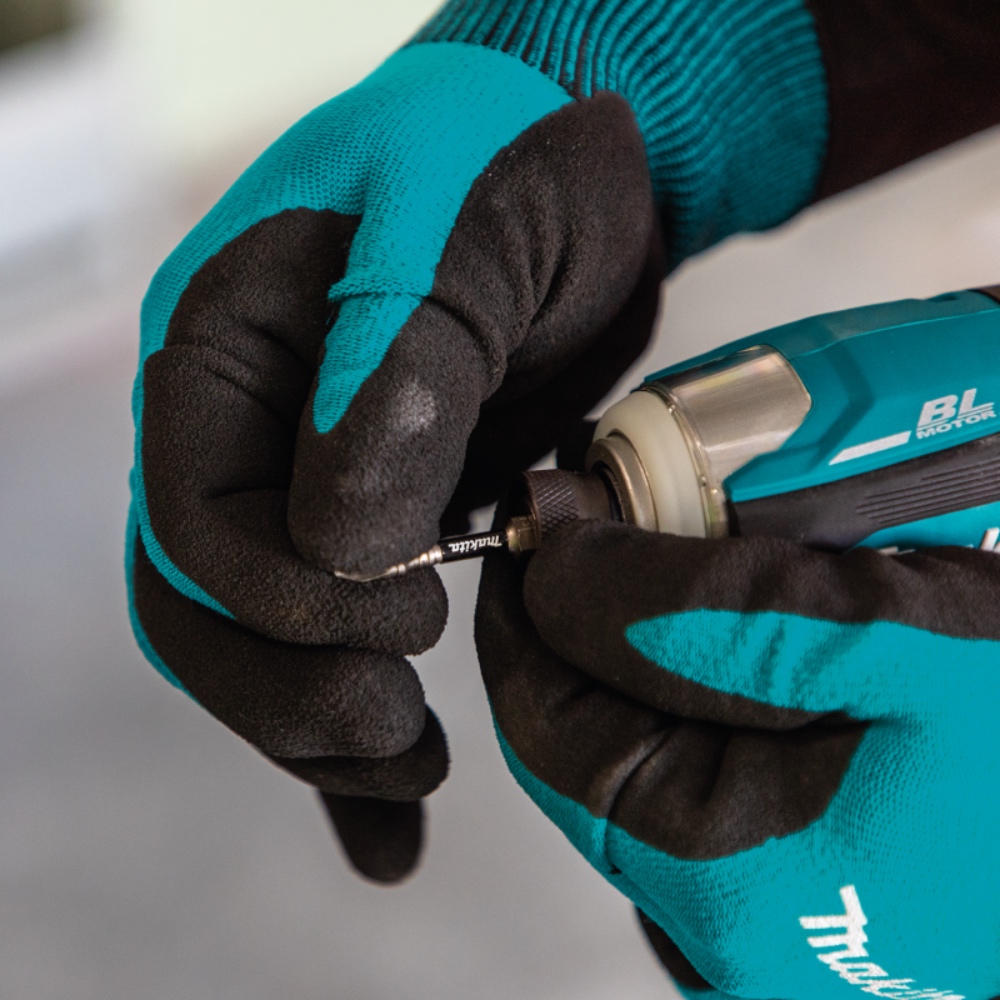

  • One-touch bit installation
    ･Reduced resistance allows for easier bit installation
    ･Designed to hold the bit more securely

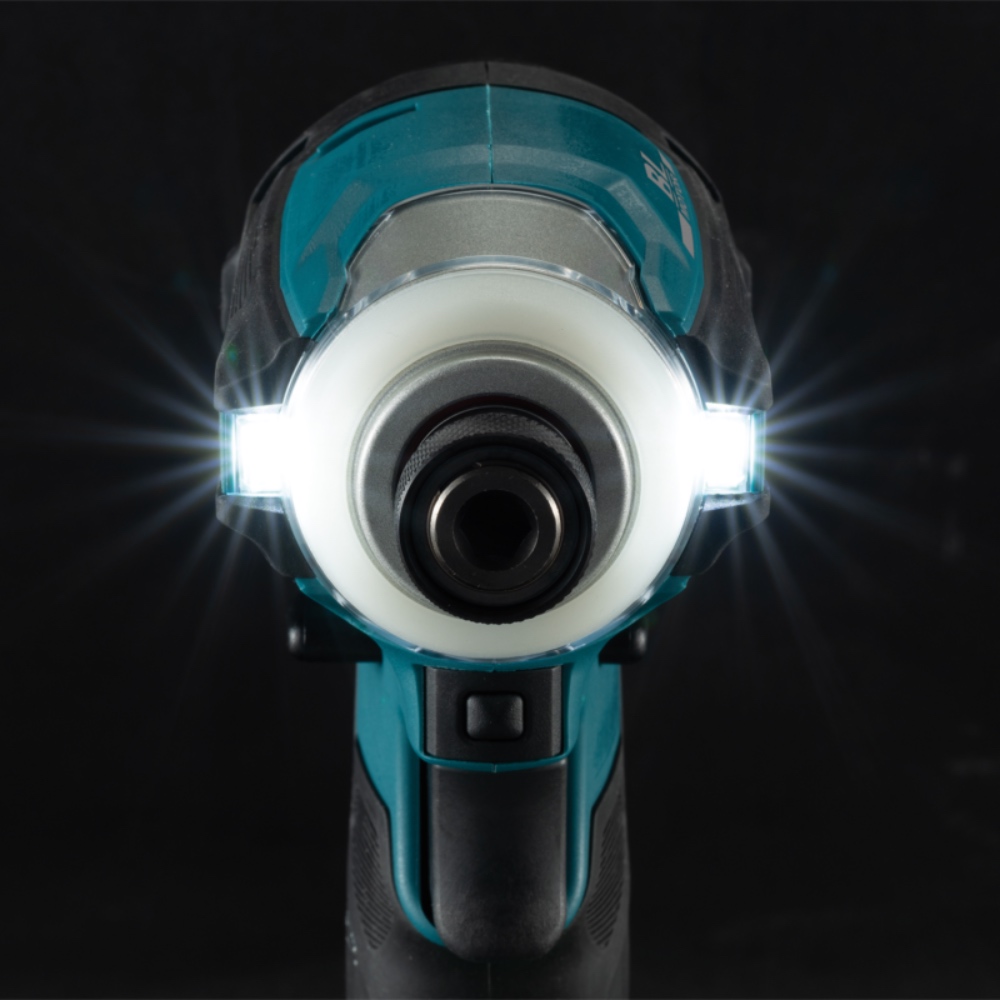

  • Twin LED lights on both sides illuminate the work area for increased visibility

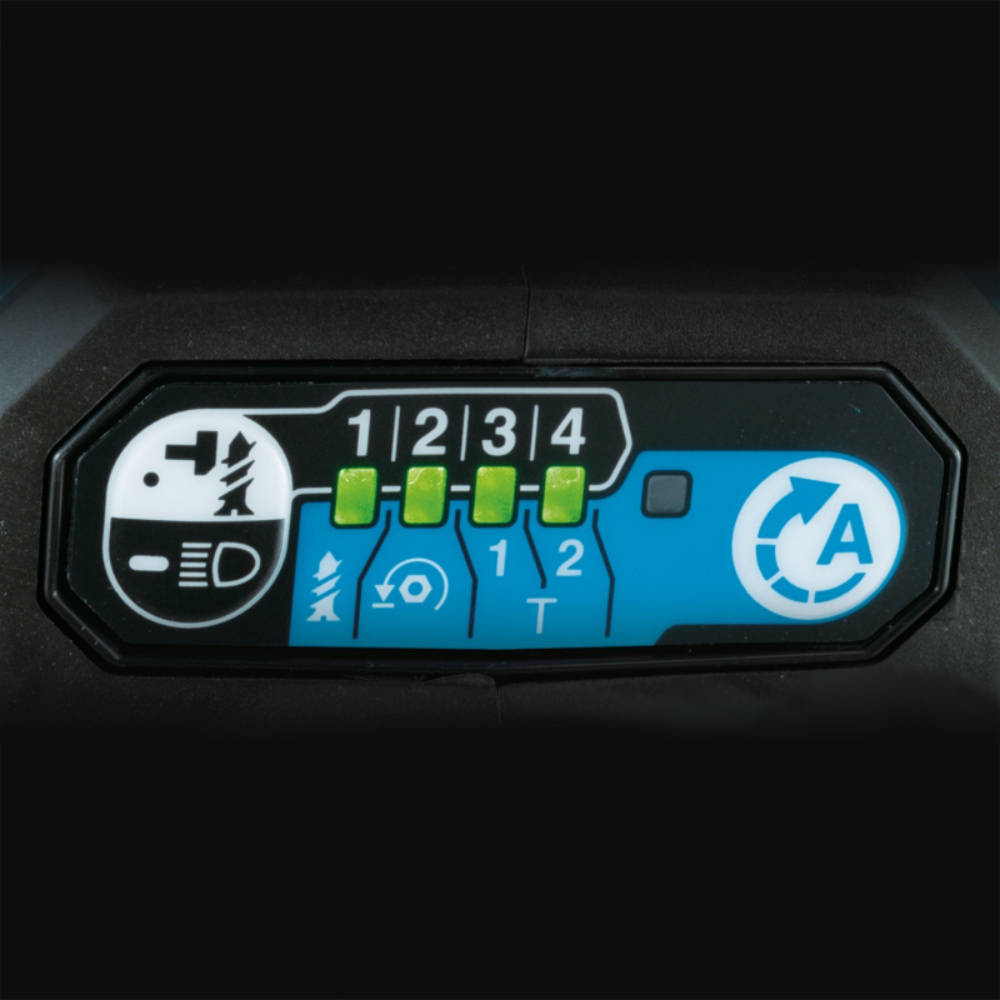

  • Wood/Bolt/T-Mode/Max/Hard/Medium/Soft mode for multiple applications
  • Redesigned mode selection switch for one-handed mode selection
  • Rigid anvil retention for reduced bit wobbling
  • Power selection switch provides the user with precise fastening control for a wide range of applications
  • BL motor delivers 3,600 max RPM and 180 N·m of max torque
  • BL motor is electronically controlled to optimize battery energy use for longer run time per charge
  • BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
  • BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
  • Lightweight for reduced operator fatigue
  • Convenient one-touch 6.35 mm (1/4") hex chuck for quick bit changes (for some countries only)
  • Soft grip provides increased comfort on the job
  • Water-resistance compatible with XPT
    Electric brake for maximum productivity

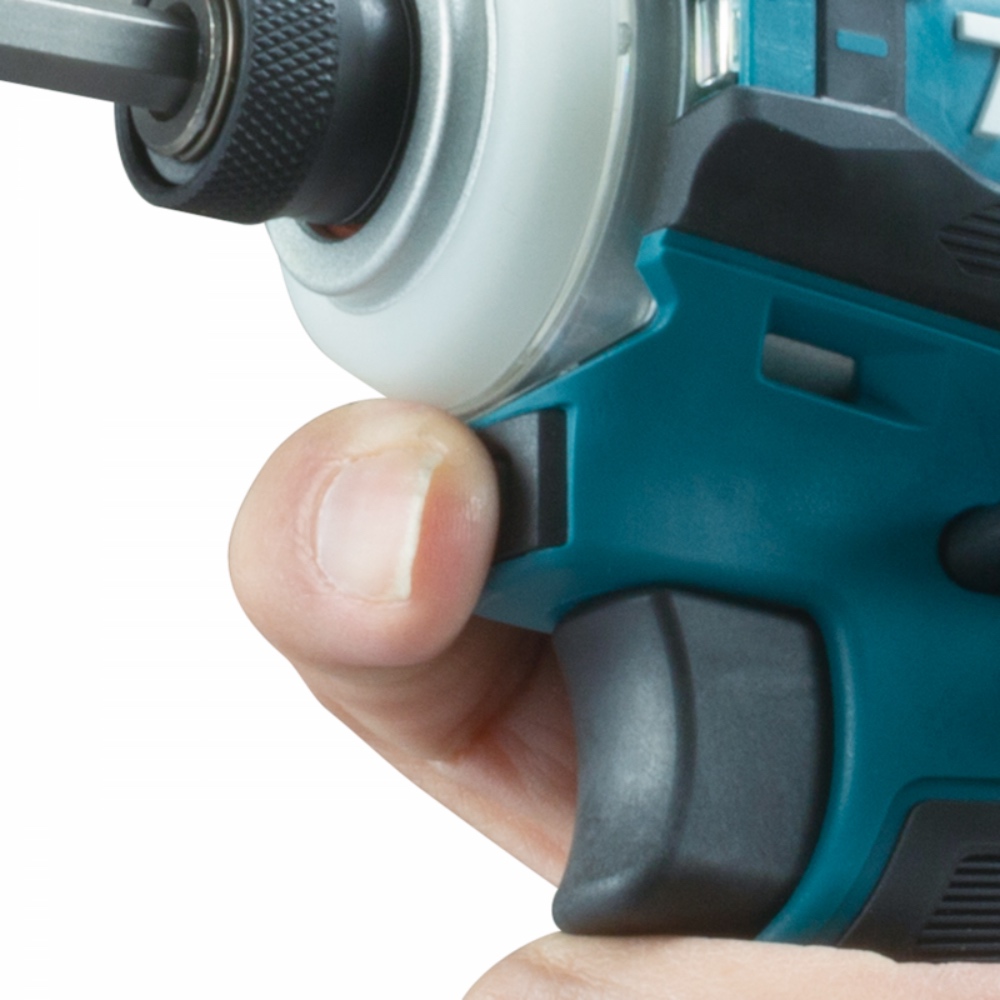

    Easy-to-operate, push button type F/R change switch
    Durable, reversible belt clip convenient for temporary tool hanging
    Battery protection circuit protects against overloading, over-discharging and over-heating.

Standard Equipments : Belt clip


Parts List
(0.94 MB)


Leaflet
(7.90 MB)

Available options

DTD172Z
Tool only


Technical specifications

Capacity Machine screw M4 - M8
Capacity Standard bolt M5 - M16
Capacity High strength bolt M5 - M14
No Load Speed Max : 0 - 3,600 minˉ¹
Impacts Per Minute Max : 0 - 3,800 minˉ¹
Max fastening torque 180 N·m
Dimensions (L x W x H) 114 x 81 x 236 mm
Net weight 1.2 - 1.5 kg
