DTD210
Cordless Impact Driver

Overview:

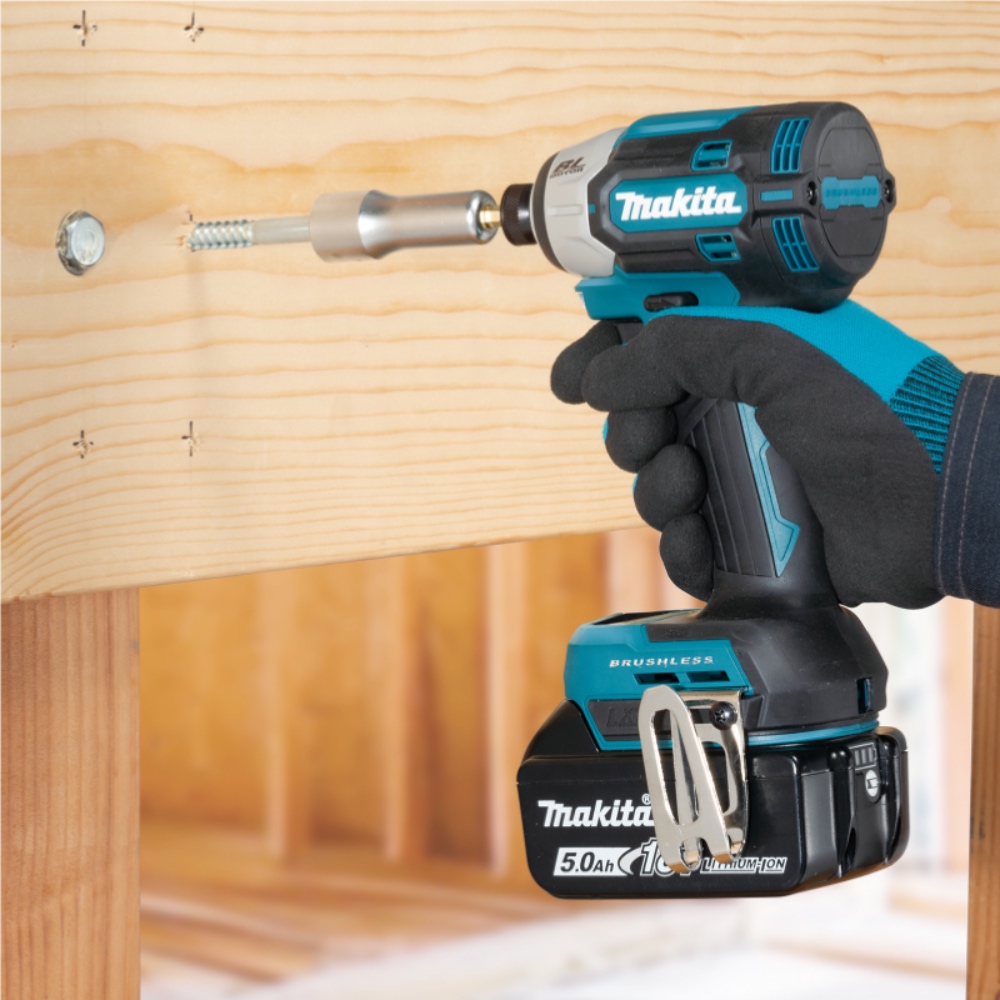

The DTD201 is a cordless impact driver powered by an 18V LXT Li-Ion battery. This model delivers up to 210 N·m of fastening torque, enabling high-speed, high-power performance even in heavy-duty applications such as fastening hex coach screws and hardware screws.
Delivers up to 210 N·m of fastening torque and a high-speed rotation of 3,700 rpm

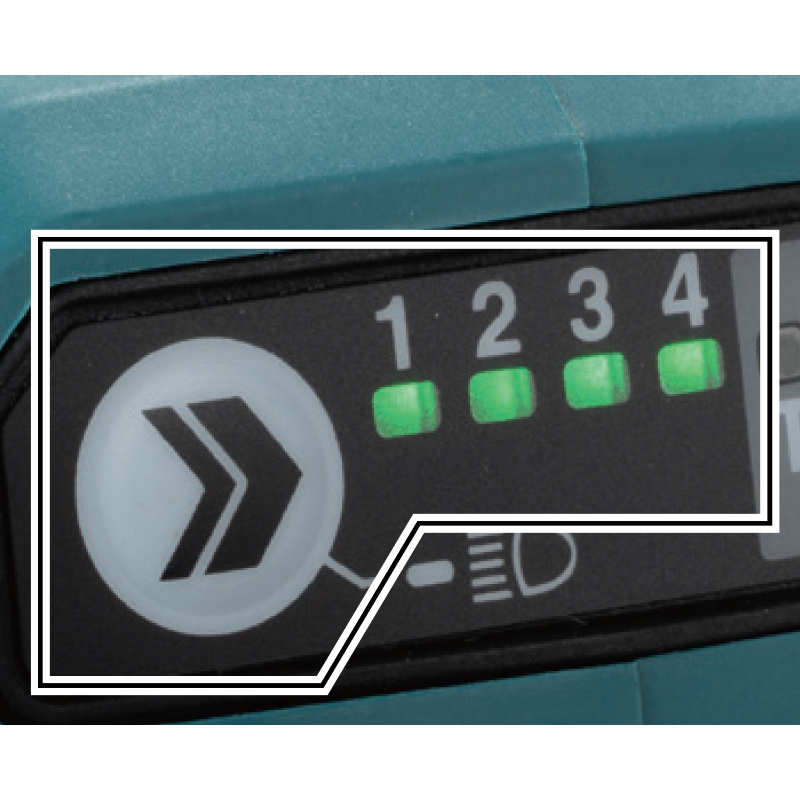

Four selectable speed settings make it easy to adjust the tool for a wide range of applications.

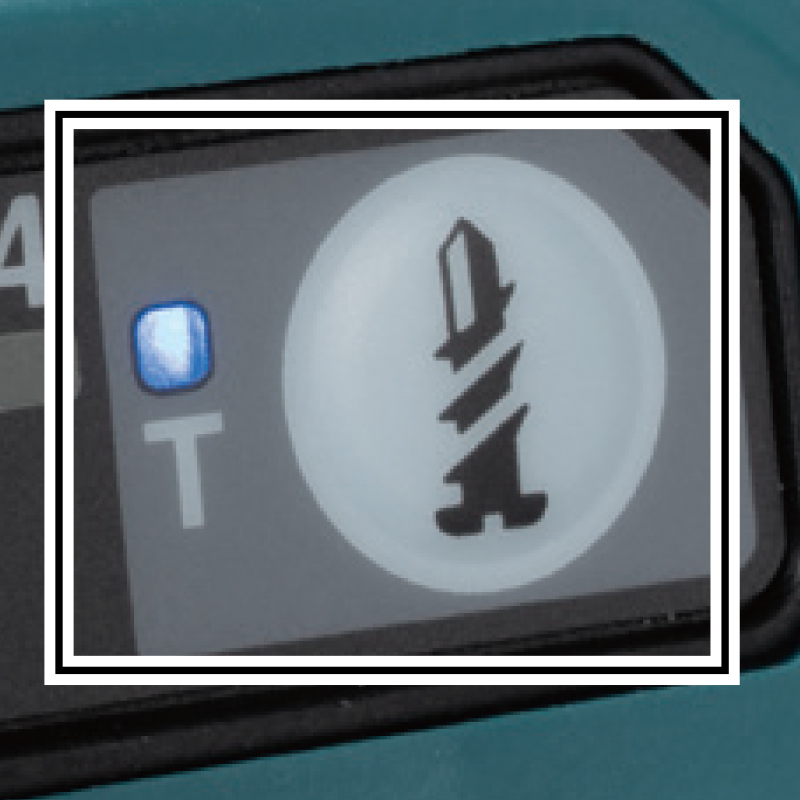

T-mode drives self-drilling screws into thin metal at high speed, then stops after the tool starts to impact to prevent over-tightening.

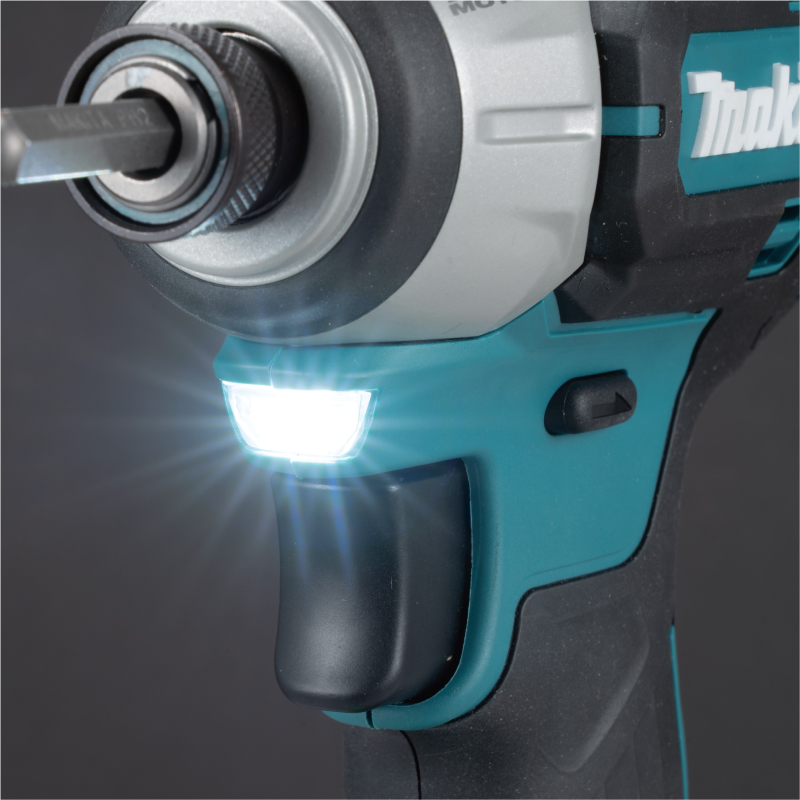

Twin LED job light provides bright illumination with preglow and afterglow functions for enhanced visibility.
The variable speed trigger allows for speed adjustments based on the material or application.
Anti-bit wobbling structure ensures enhanced stability during fastening.
Compact design measuring 121mm in length for easy access in tight spaces
Lightweight design minimizes fatigue during extended use.
The hook allows for easy and convenient hanging of the tool.
Ergonomic rubberized soft grip for increased comfort

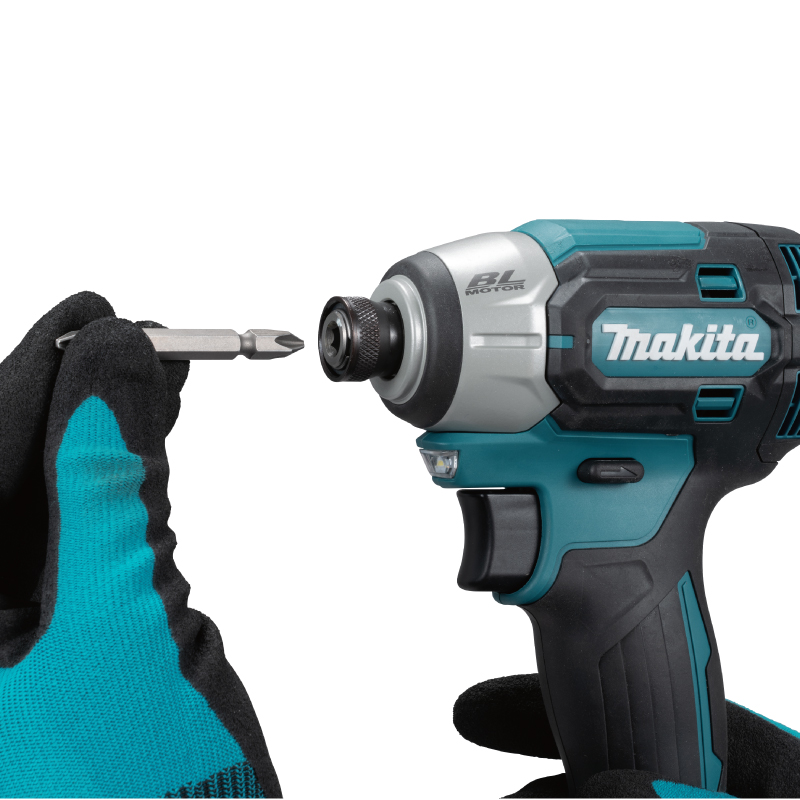

One-touch bit installation ensures smoother installation and reduces the chance of the bit coming loose.

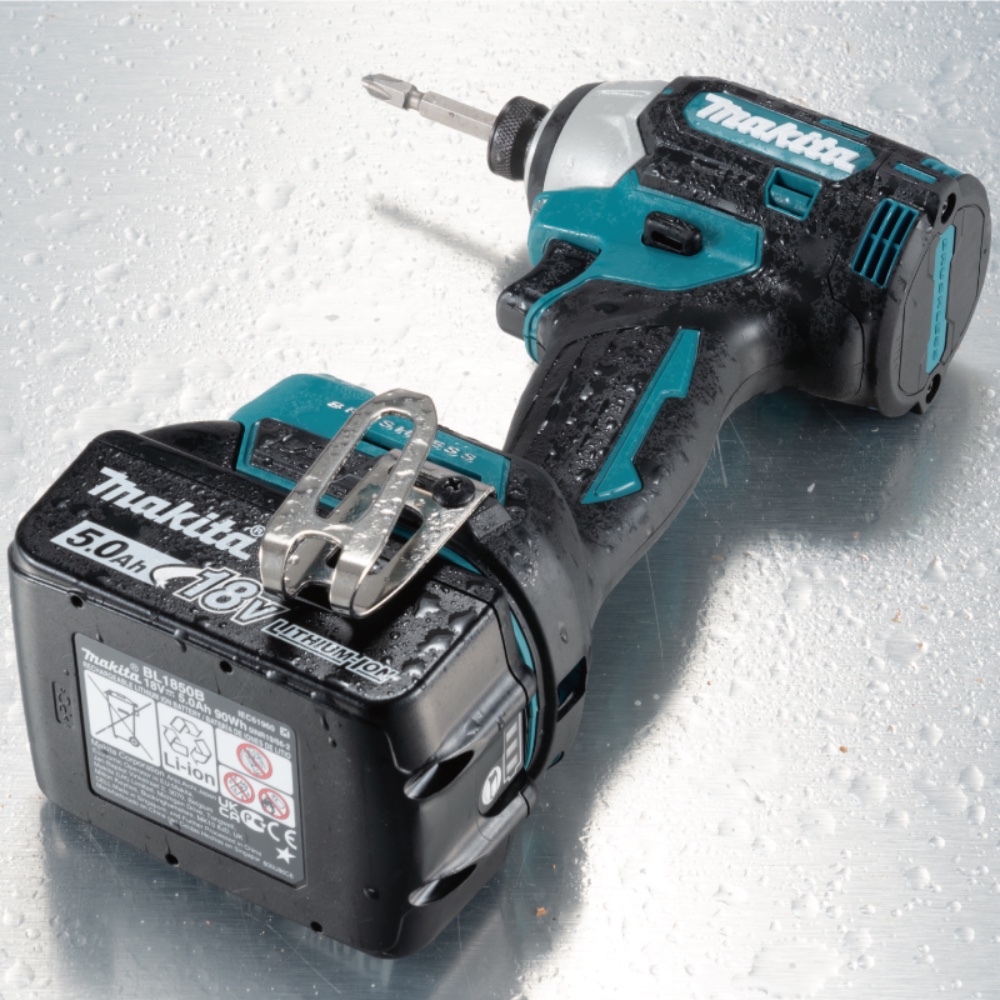

Water-resistance compatible with XPT
The brushless motor provides longer work hours per charge and extended tool life.
Electric brake quickly stops rotation for user protection.

Driving shank (Hex)	6.35 mm
Max fastening torque	210 N·m
No Load Speed : Max / Hard / Med./ Low	0 - 3,700 / 0 - 3,200 / 0 - 2,100 / 0 - 1,100 minˉ¹
Impacts per minute : Max / Hard / Med. / Soft	0 - 4,400 / 0 - 4,200 / 0 - 3,600 / 0 - 2,000 minˉ¹
Dimensions (L x W x H)	121 x 81 x 246 mm
Net weight	1.3 - 2.3 kg
