DDF491
Cordless Driver Drill

DDF491 Parts List (1.76 MB)

DDF491 Leaflet (6.03 MB)

DDF491
Cordless Driver Drill

18V Cordless Driver Drill 13 mm 65 N·m

  
Variable Speed
Brake
Reversing
Mechanical 2-Speed
Keyless Chuck
Torque Setting 20
Built-in-Job Light
Carrying Case

Features

  • Overview:
    The DDF491 is a cordless driver drill powered by an 18V LXT Li-Ion battery.
    It has been developed based on the current DDF490 (affordable and reliable LXT model).
    It comes with four tool head attachments interchangeable without tool, designed for users who prefer versatility in tight spaces such as joiners, interior maintenance carpenters and more.
  • The tool head attachments are:

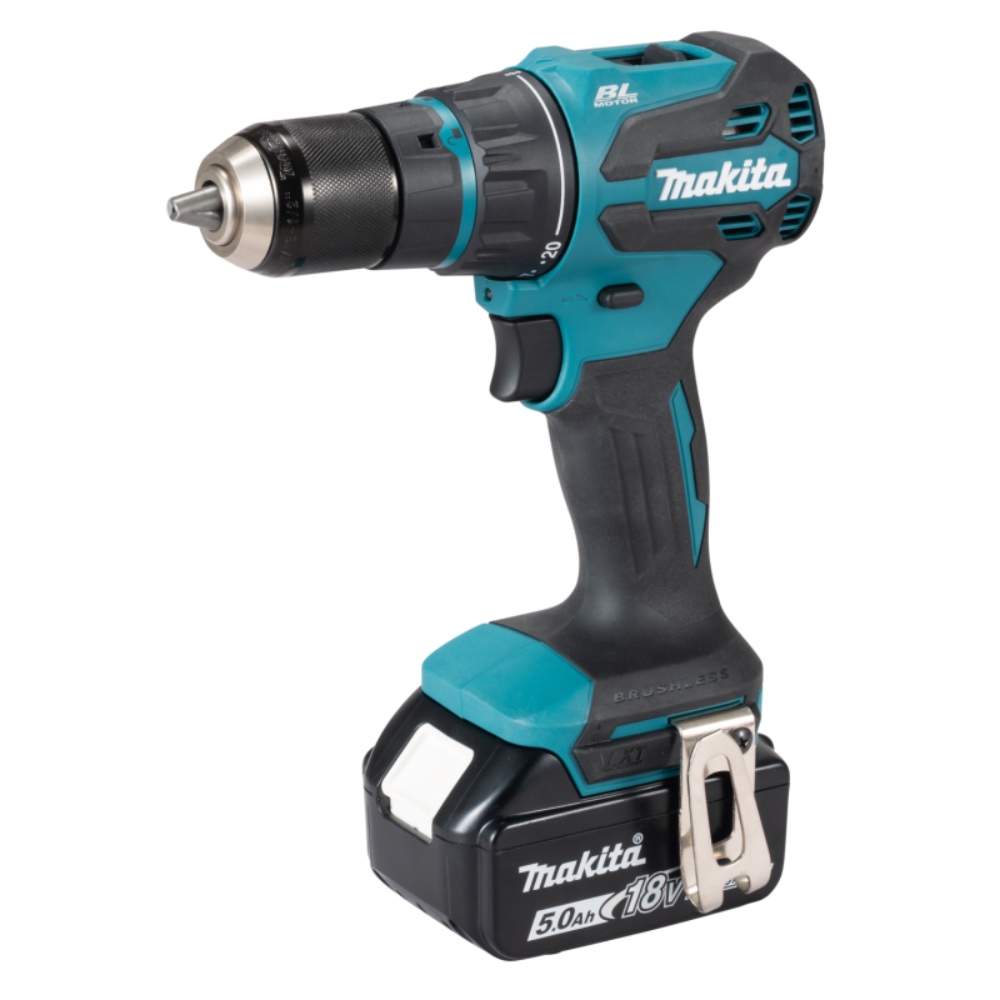

    - Drill chuck attachment [13mm (1/2") Keyless drill chuck with metal single-sleeve]

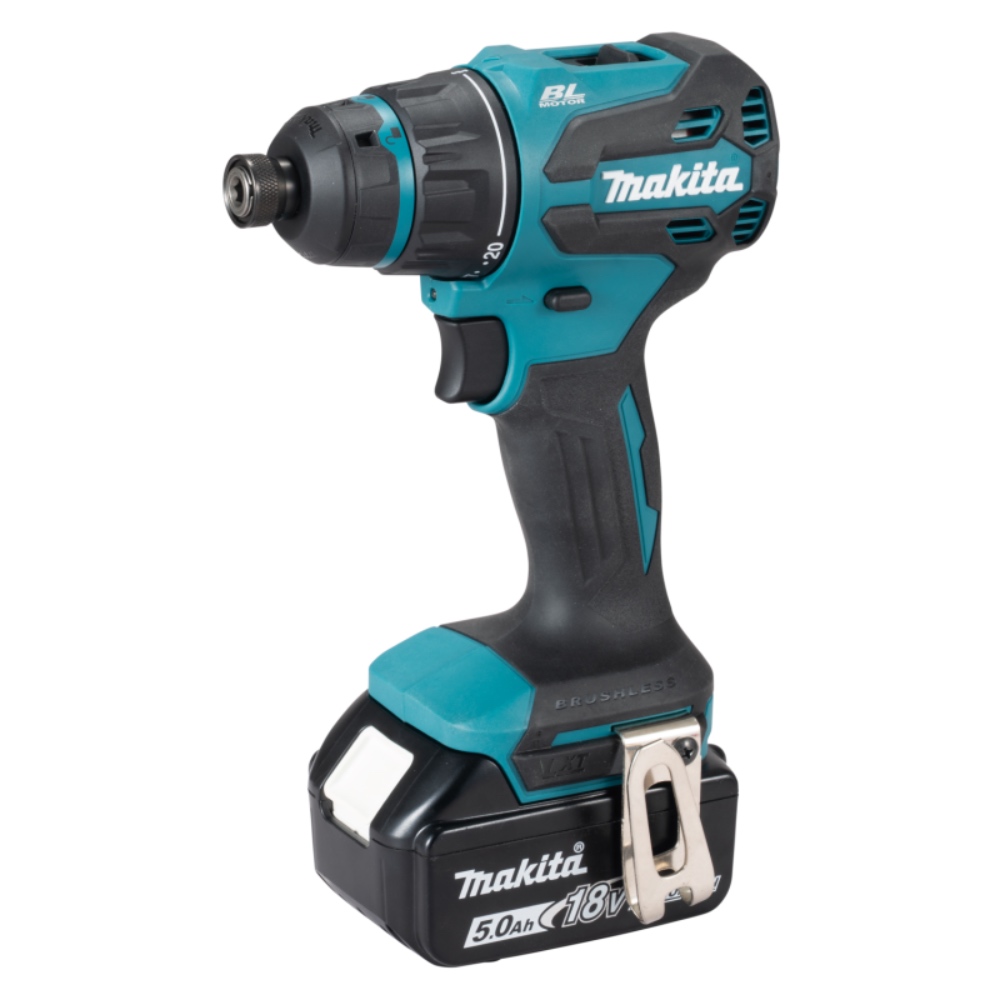

    - Hex bit attachment [1/4" Hex shank bit holder (for E-form bit)]
    - Offset attachment [1/4" Hex shank bit holder (for E-form bit)]

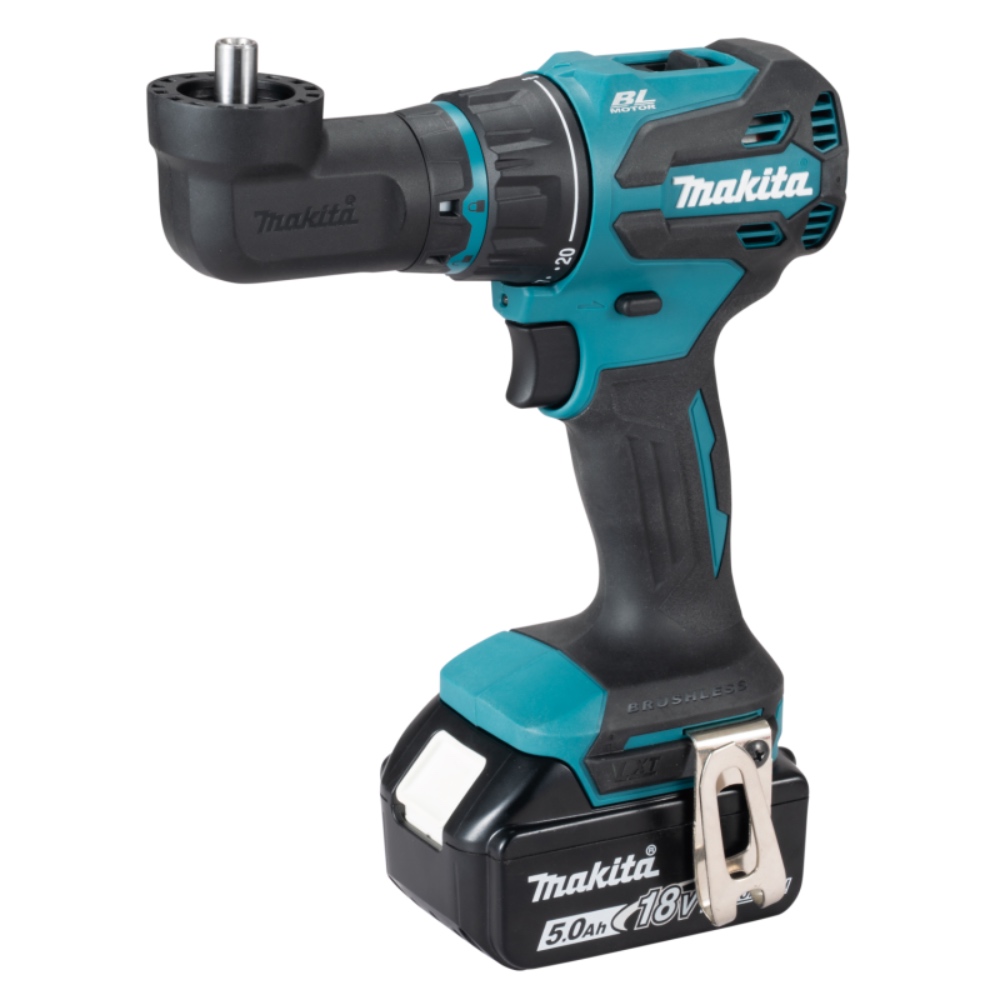

    - Angle attachment [1/4" Hex shank bit holder (for C-form bit)]

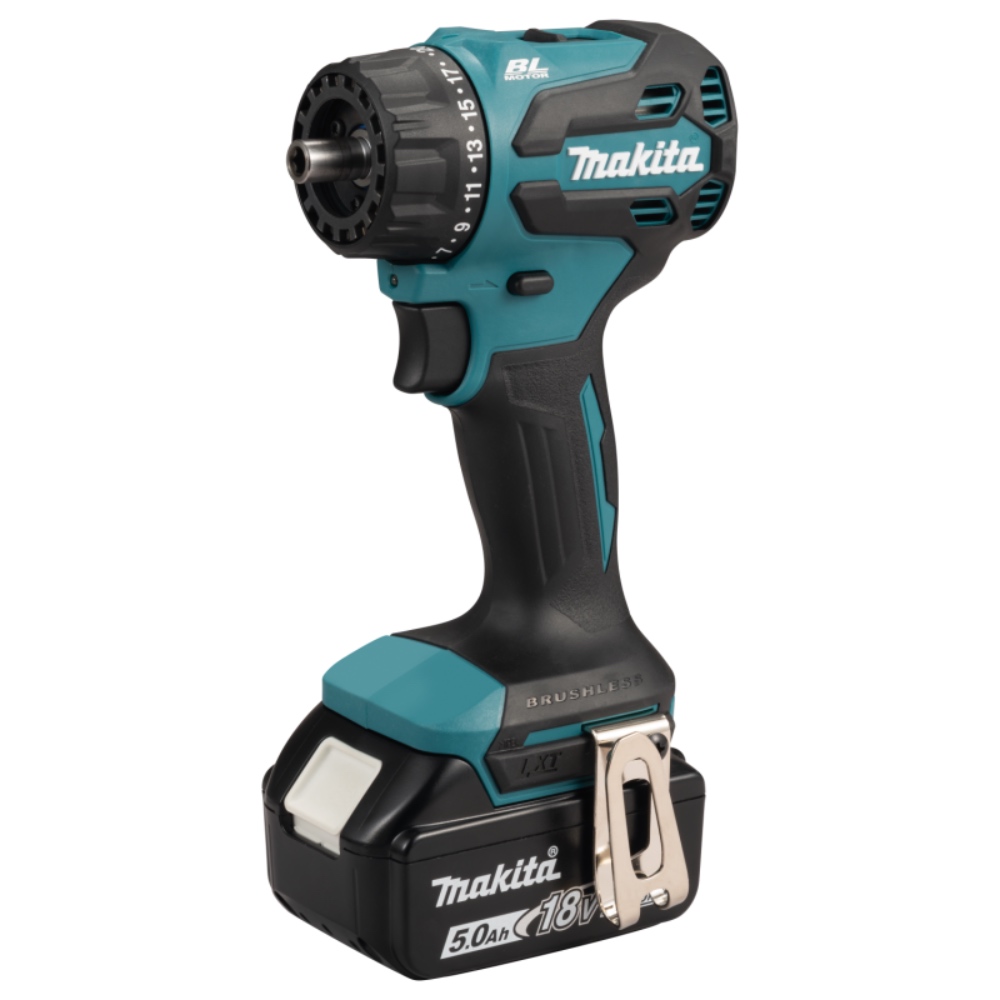

  • This model can also be used without any of the four attachments.
    * A driver bit (C-form) can be held securely in place by a magnet built in the bit holder.

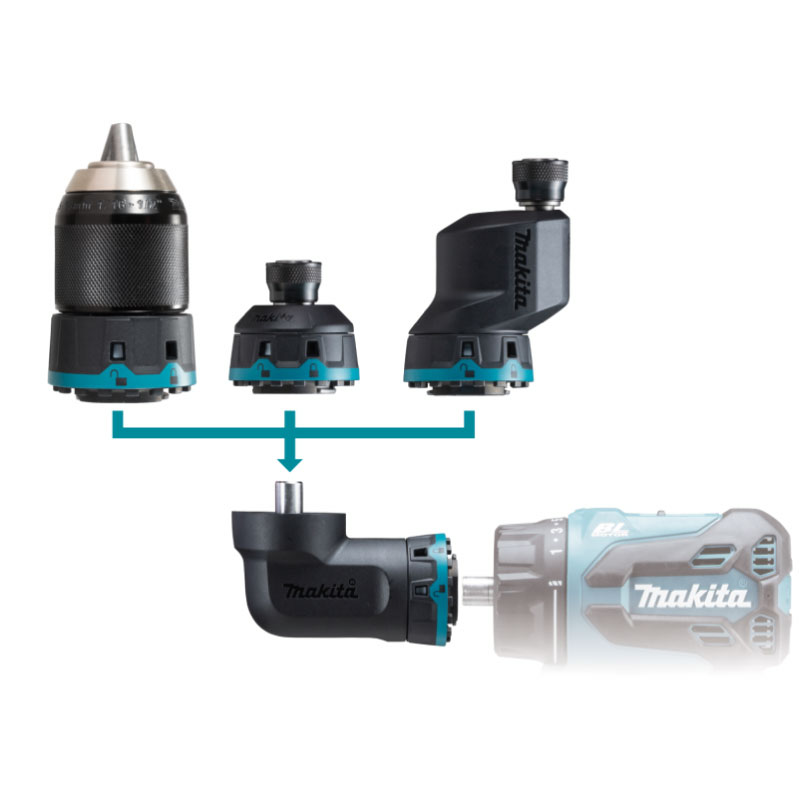

  • Angle attachment accepts connection of Drill chuck attachment, Hex bit attachment and Offset attachment.
  • The brushless motor provides longer work hours per charge and extended tool life.
  • Provides increased efficiency with the maximum no-load speed of up to 1,900 rpm.
  • The 20-stage torque settings allow for fine adjustments to suit the task at hand.
  • A mechanical 2-speed gearing allows for choosing between maximum rpm or higher torque.
  • Two action modes are available: Drilling and Screwdriving
  • A single LED light with pre-glow and after-glow functions illuminate the work area.
  • The variable speed trigger allows for speed adjustments based on the material or application.
  • The ergonomically designed grip ensures comfortable handling.
  • The reversing switch is conveniently located.
  • Water-resistance compatible with XPT
  • The hook allows for easy and convenient hanging of the tool.
  • The battery protection circuit protects against overloading, over-discharging and over-heating.

Standard equipment : Hook, Phillips bit, Drill chuck attachment, Hex bit attachment, Offset attachment, Angle attachment


Parts List
(1.76 MB)


Leaflet
(6.03 MB)

Available options

DDF491Z01
Tool only


Technical specifications

No Load Speed 0 - 1,900 minˉ¹
Capacity : Wood 20 mm
Capacity : Steel 13 mm
Max Torque 65 N·m
Max Fastening Torque : Hard/Soft 50 / 27 N·m
Chuck Capacity 13 mm
Net weight 1.8 kg
