(EN / TH)

RP2302FC05
Router

RP2302FC05
Router

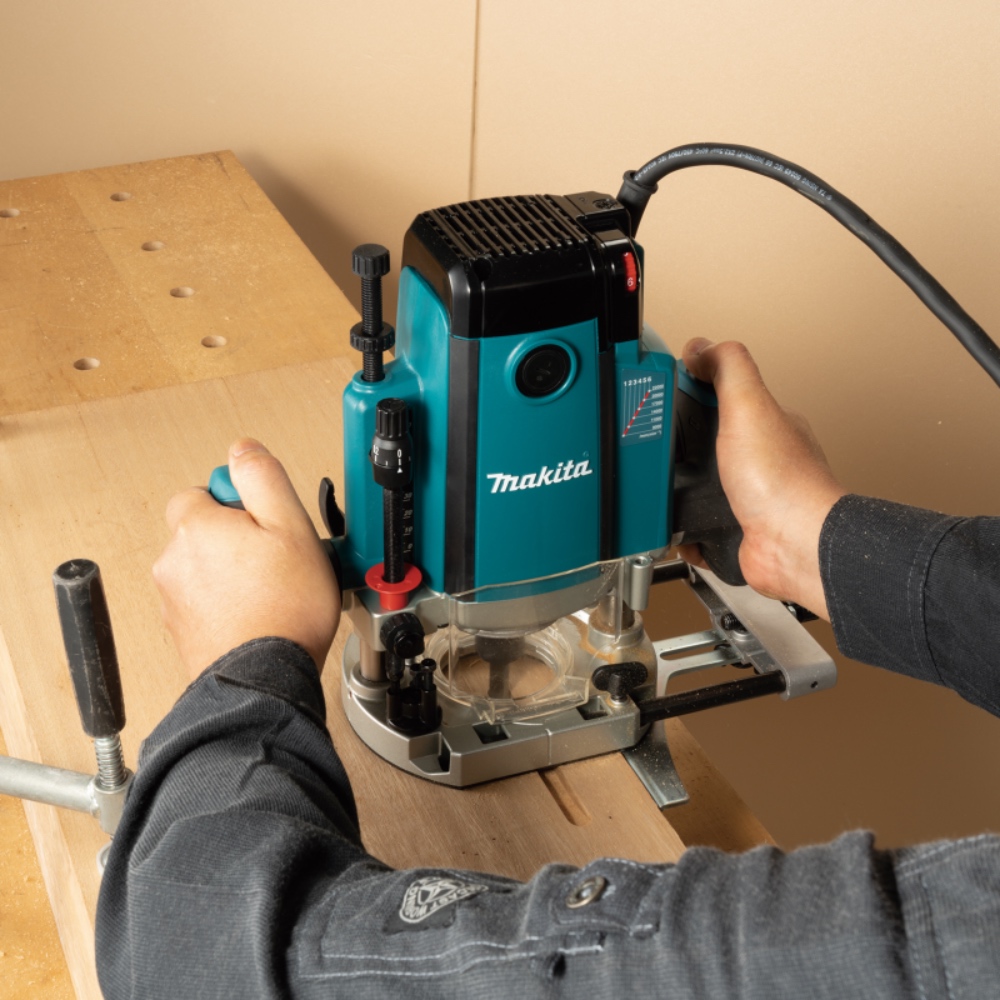

Plunge Router 12 mm ( 1/2") 2,300 W

  

๐ Developed based on RP2300FC, and designed for compliance with EN62841-2-17 ๐ Anti-restart function minimizes accidental start-up ๐ Combines power and precision for the most demanding routing applications ๐ Powerful 2,300 W motor delivers 9,000-23,000 RPM ๐ Constant speed control maintains constant speed under load ๐ Variable speed control dial enables user to match the speed to the application ๐ Soft start feature for smooth start-ups ๐ Deep 0 - 70 mm (0 - 2-3/4") plunge depth capacity for easy penetration into work piece ๐ Linear ball bearings for smooth plunge action and superior performance ๐ Quick release plunge depth adjustment with micro control along with 3 preset depth stops for added precision ๐ Twin LED lights with afterglow feature illuminate the work area ๐ Oversized ball bearing construction for longer tool life ๐ Ergonomic rubberized handles with built-in large two-finger switch for added control and use ๐ Conveniently located plunge lock lever for efficient operation ๐ Shaft lock for quick and easy bit changes ๐ Tool-less templet guide system for quick and easy installation and removal ๐ Trigger switch with a lock button for lock-off and lock-on functions ๐ Built in fan with labyrinth construction minimizes dust from entering the tool for longer tool life

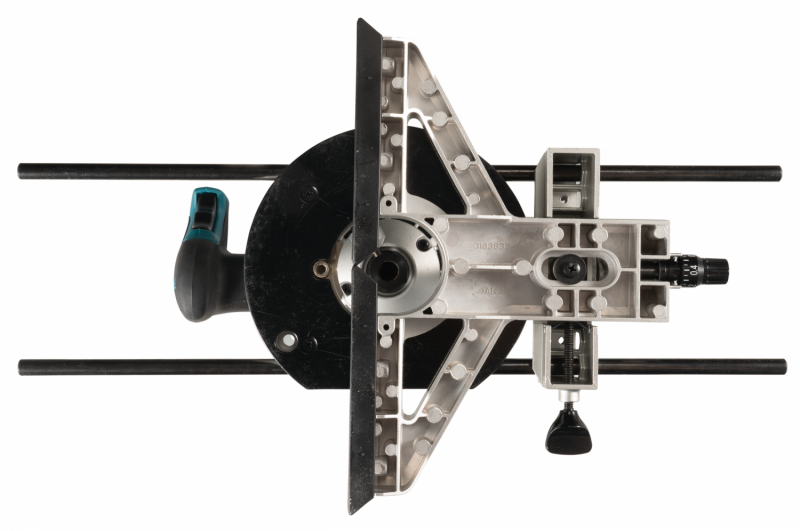

Standard Equipments : Guide holder assembly, Dust nozzle assembly, Trimmer guide assembly, Straight guide, TEMPLET GUIDE (METRIC SIZE), Collet sleeve, Wrench


Technical specifications

Continuous Rating Input 2,300 W
Collet size 12 mm
Base size 170 x 155 mm
No Load Speed 9,000 - 23,000 minˉ¹
Plunge capacity 0 - 70 mm
Dimensions (L x W x H) 155 x 294 x 327 mm
Net weight 6.2 kg
Power Supple Cord 4.0 m
Double Insulation
Variable Speed
Anti-restart function
Constant Speed
Soft Start
Dust Collection
Built-in-Job Light
