RP1802X05
Router

RP1802X05
Router

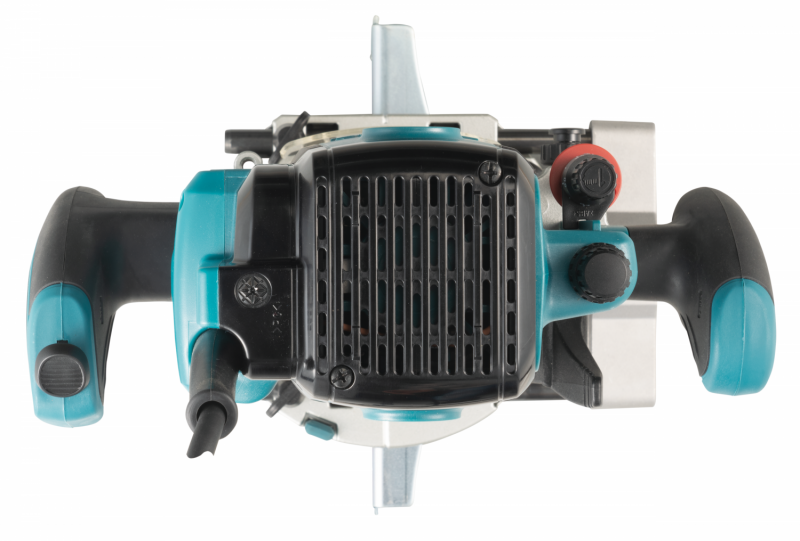

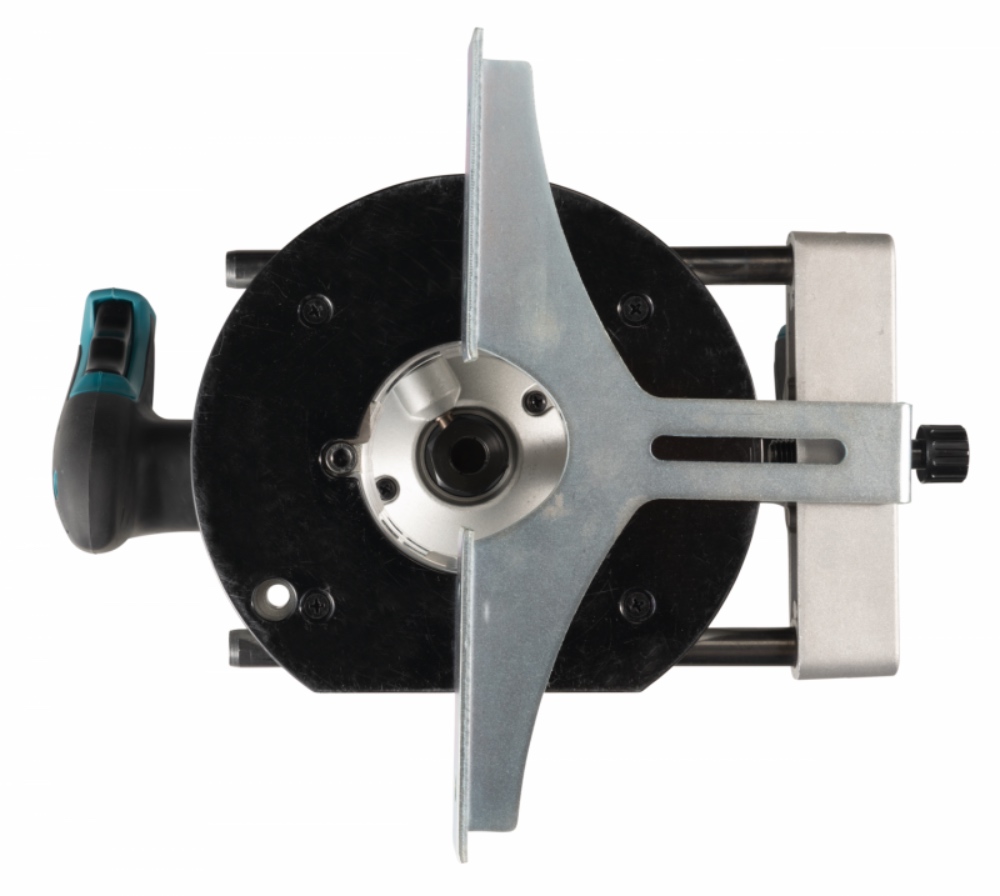

Plunge Router 12 mm ( 1/2") 1,850 W

  

๐ Developed based on RP1800, and designed for compliance with EN62841-2-17 ๐ Anti-restart function minimizes accidental start-up ๐ Soft start suppresses start-up reaction for smooth start-ups and longer life ๐ Deep 0 - 70 mm (0 - 2-3/4") plunge depth capacity for easy penetration into work piece ๐ Powerful 1,850 W motor delivers 23,000 RPM for smooth routing ๐ Quick release plunge depth adjustment with micro control along with 3 preset depth stops for added precision ๐ Easy-to-read depth scales ๐ Trigger switch with a lock button for lock-off and lock-on functions ๐ Chip deflector engineered to direct chips away from the operator ๐ Includes extended depth control knob for use when mounted under the table ๐ Can be placed upside down when replacing accessories or not in use ๐ Can be connected to dust extraction system with optional dust nozzle ๐ Externally accessible brushes for easy serviceability ๐ Double insulated

Standard Equipments : Guide holder assembly, Dust nozzle assembly, Trimmer guide assembly Straight guide, TEMPLET GUIDE (METRIC SIZE) Collet sleeve, Wrench


Technical specifications

Continuous Rating Input 1,850 W
Collet size 12 mm
Base size 170 x 155 mm
No Load Speed 23,000 minˉ¹
Plunge capacity 0 - 70 mm
Dimensions (L x W x H) 155 x 294 x 312 mm
Net weight 6.2 kg
Power Supple Cord 4.0 m
Carbon Brush 203
Double Insulation
Anti-restart function
Dust Collection
Soft Start
