(EN / TH)

HR3001C
Combination Hammer

HR3001C
Combination Hammer

Combination Hammer 30 mm (1-3/16") 3.9 J ,SDS-PLUS

  

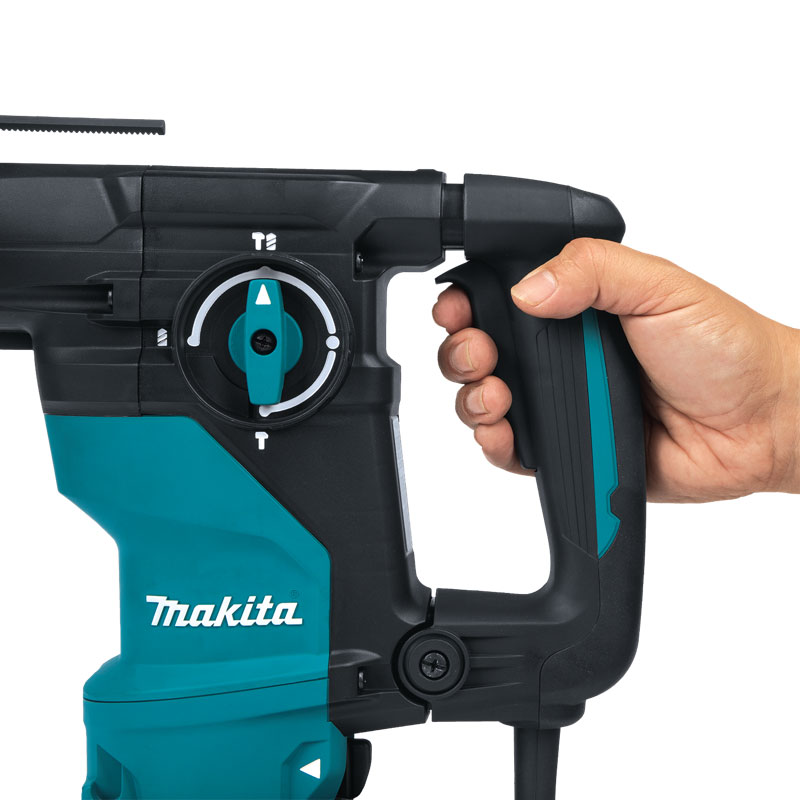

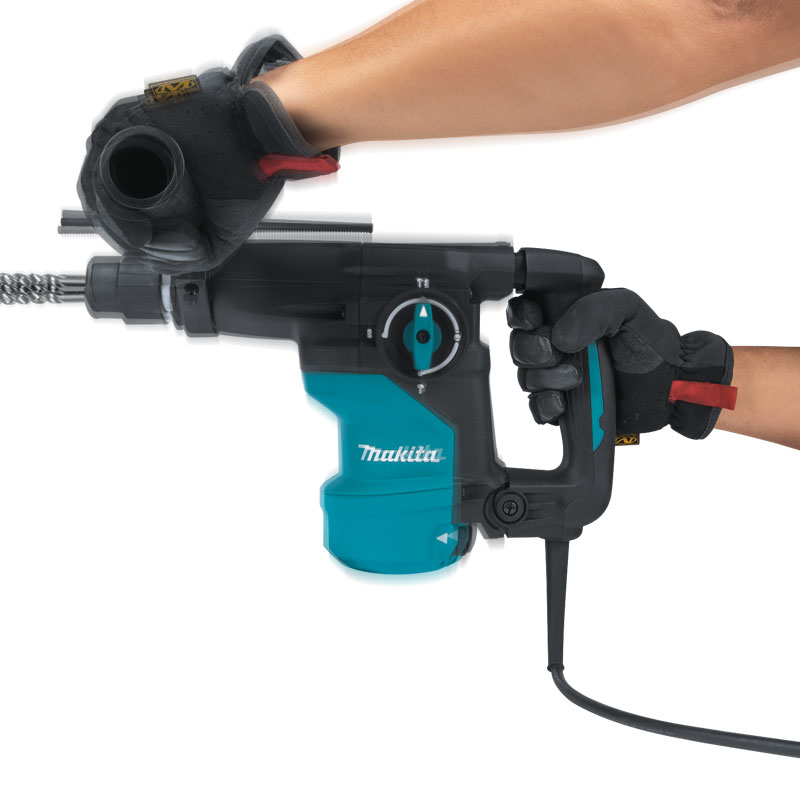

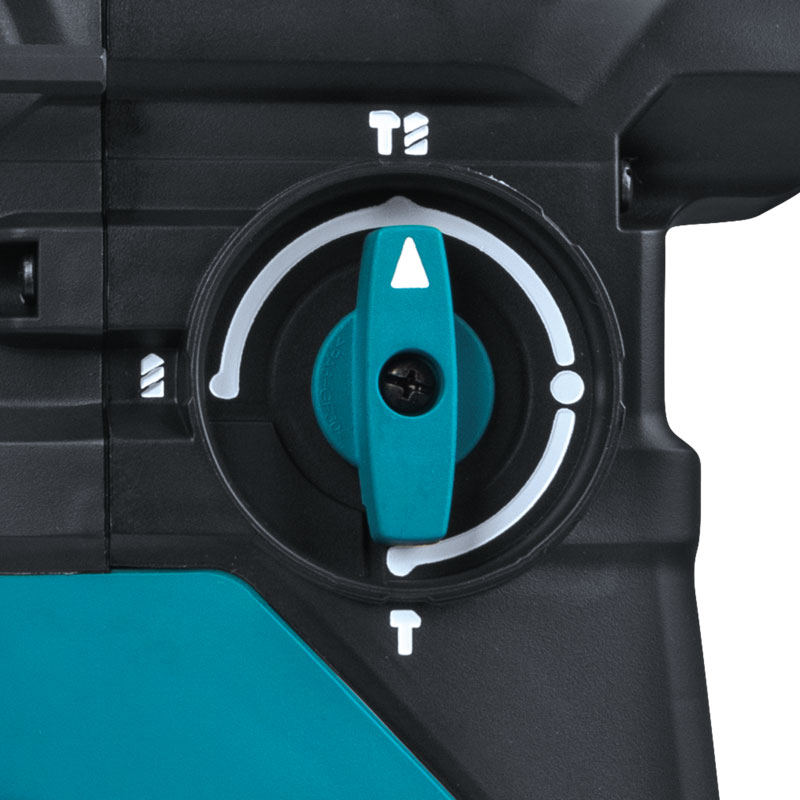

๐ Drilling efficiency drastically increased by redesigned hammering mechanism ๐ Anti-vibration side grip absorbs excess vibration beyond the canceling capacity of the two counterweights ๐ Anti-vibration rear handle; Vibration absorbing performance is increased by two cushion rings added to connecting parts ๐ Less bit wobbling achieved by making bit guide portion 8 mm longer than that of HR2811F series ๐ Powerful 1,050 W motor delivers 3.9 J (EPTA-Procedure 05/2009) of impact energy to handle the most demanding applications ๐ 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only" ๐ "No hammering when idling" function helps increase tool life ๐ Torque limiting clutch engineered to minimize gear damage by automatically disengaging gears if the bit binds ๐ Ergonomic "D-shaped" handle with rubberized soft grip for increased comfort ๐ Variable speed control dial allows operator to adjust speed based on materials or application ๐ Constant speed control automatically applies additional power to the motor to maintain speed under load ๐ Recessed lock-on button for continuous operation ๐ Depth gauge for increased drilling consistency ๐ Double insulated

Standard Equipments : Depth gauge, Side grip


Technical specifications

Continuous Use 1,050 min.
Impact energy 3.9 J
Capacity : Concrete 30 mm
Capacity : Steel
Capacity : Wood 32 mm
Blows Per Minute (BPM) 0 - 4,500
No Load Speed 0-840 minˉ¹
Dimensions (L x W x H) 369 x 98 x 226 mm
Net weight 4.1 - 4.5 kg
Power Supple Cord 4.0 m
Carbon Brush 351
Double Insulation
Variable Speed
Reversing
Torque Limiter
Constant Speed
Dust Collection
SDS-PLUS Shank
Carrying Case
