HR2661
Combination Hammer with Self Dust Collection
HR2661
Combination Hammer with Self Dust Collection
Combination Hammer 26 mm (1") 2.2 J with HEPA Self Dust Collection, SDS-PLUS

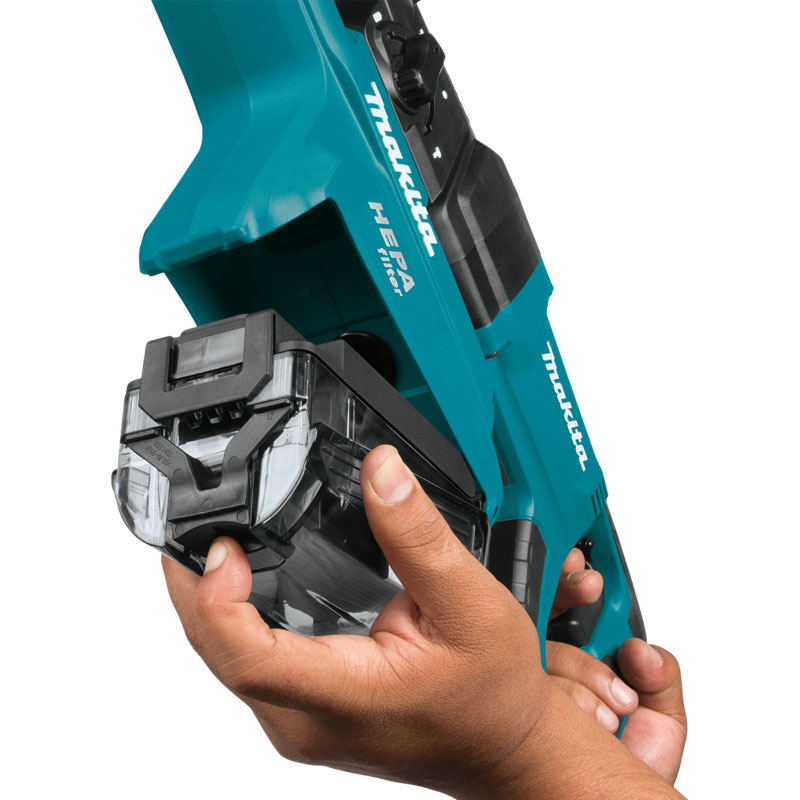

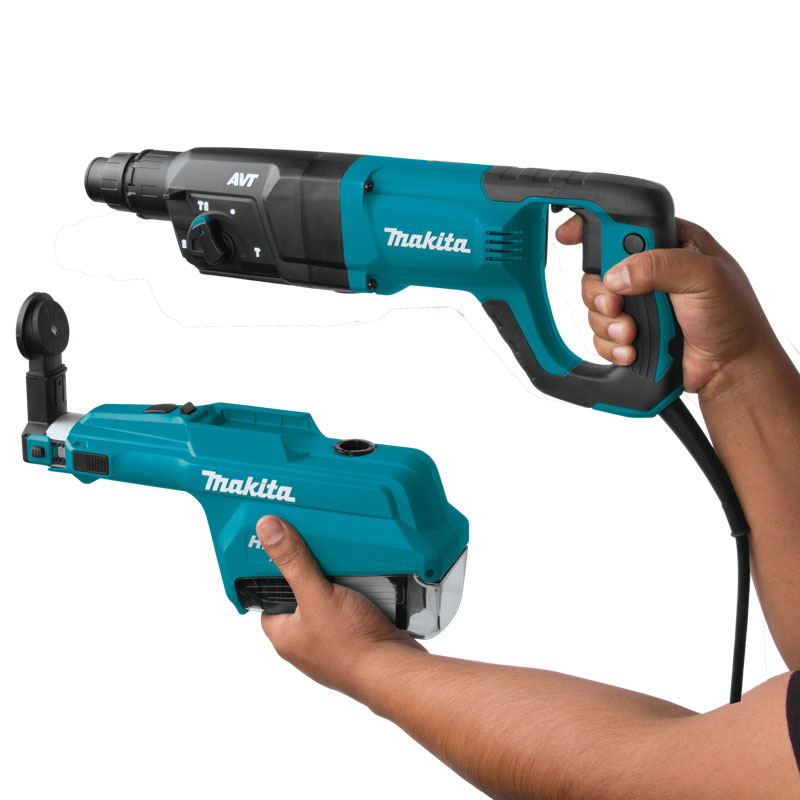

๐ Filter Cleaning Mechanism for More Efficient Drilling ๐ HEPA filter removes particles with an efficiency rating of 99.75% ๐ Dust collecting port on telescopic guide with a sliding range of 190 mm enables to accept longer drill bits ๐ Secure connection between dust case and dust collecting section for less dust leakage ๐ See-through dust case for easy checking of collected dust amount ๐ A desired drilling depth can be obtained simply by sliding a push button on telescopic guide ๐ AVT (Anti-Vibration Technology) - extremely low vibration achieved by a counterweight mechanism and damper spring ๐ Powerful 800 W motor delivers 2.2 J (EPTA-Procedure 05/2009) of impact energy to handle the most demanding applications ๐ Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection ๐ 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only" for multiple applications ๐ Variable speed trigger allows operator to adjust speed based on materials or application ๐ Double insulated
Standard Equipments : Side grip, Depth gauge, Sealing cap
Technical specifications
| Continuous Rating Input | 800 W |
|---|---|
| Impact energy | 2.2 J |
| Capacity : Concrete | 26 mm |
| Capacity : Steel | 13 mm |
| Capacity : Wood | 32 mm |
| Blows Per Minute (BPM) | 0 - 4,500 |
| No Load Speed | 0 - 1,100 minˉ¹ |
| Dimensions (L x W x H) | 666 x 89 x 228 mm |
| Net weight | 3.3 - 4.4 kg |
| Carbon Brush | 419 |
