TD002G
Cordless Impact Driver



TD002G
Cordless Impact Driver

40V max Cordless Impact Driver 220 N·m

  

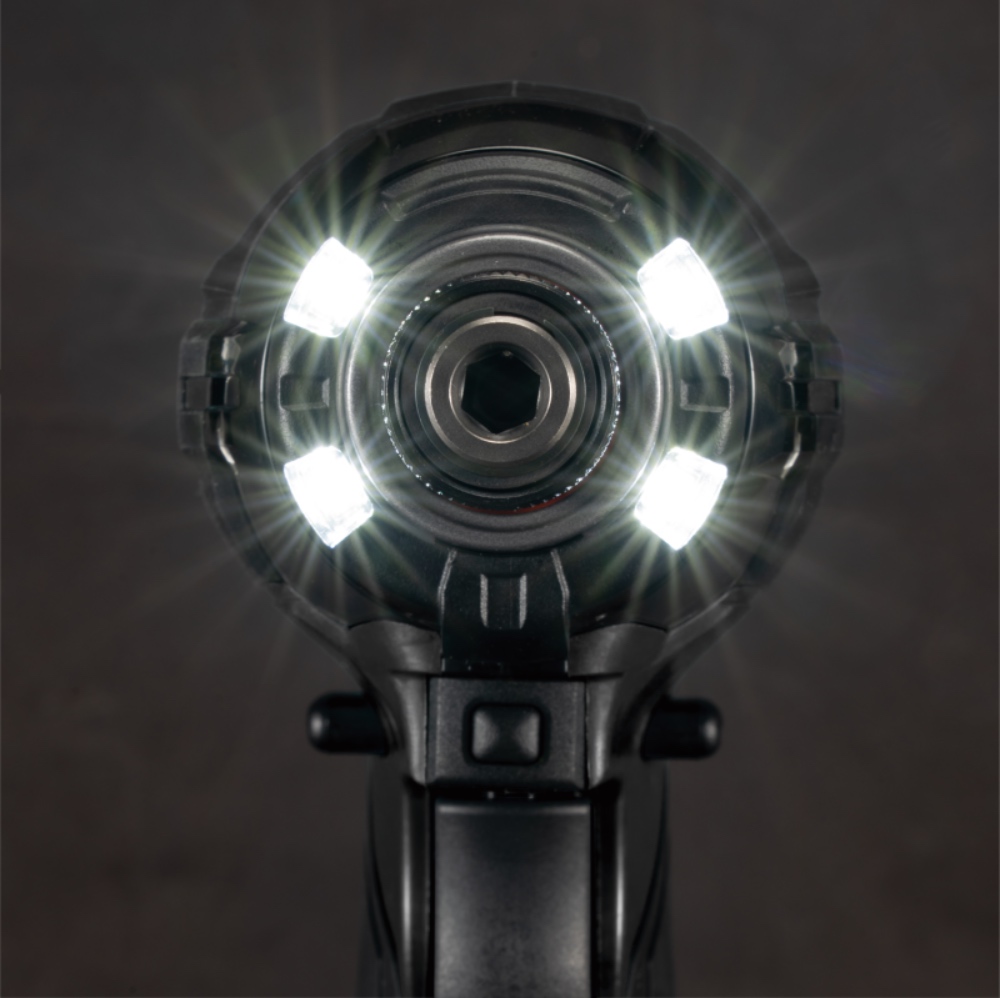

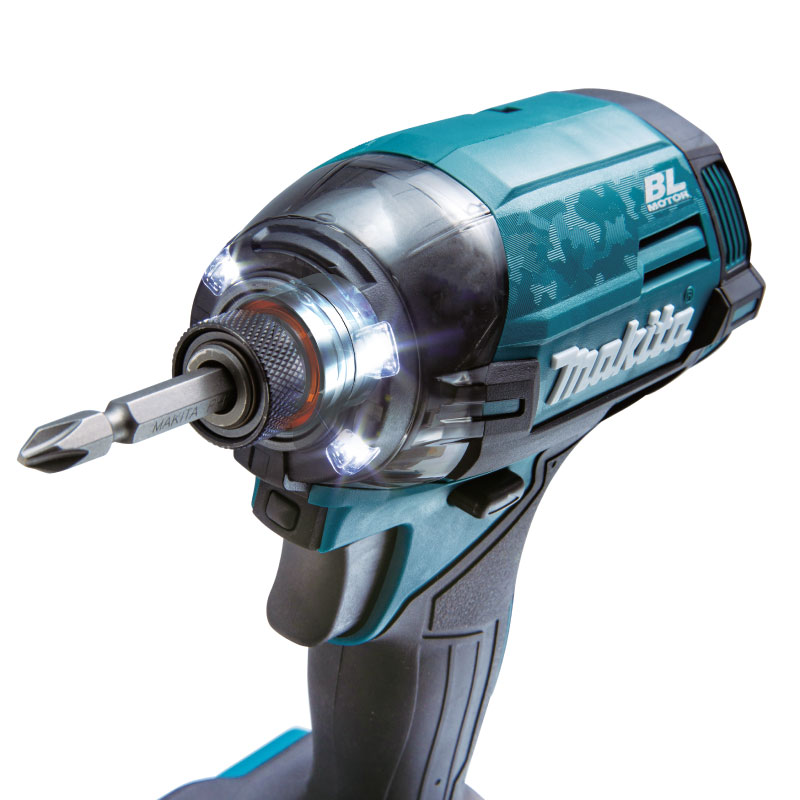

๐ More comfortable operation in a wide range of applications from light-duty screw tightening to heavy-duty metal fastening ๐ Dual spring technology • The hammer is designed to be driven by a dual spring unit consisting of two types of springs with different load capacities • The hammer is driven by one spring in light-duty operation, and by two springs in heavy-duty operation. Thus, the impact power is adjusted according to the workload, providing added comfort in a wide range of applications from delicate screw tightening to heavy-duty metal fastening • The above-mentioned optimal impact blow suppresses increase in recoil and vibration, which occur after the tool starts impact blow (The two effects have been confirmed through the tests using 120 mm coarse thread screw) 4 LEDs on the front of tool head • Brighter illumination on the workpiece obtained by : locating 4 LEDs on the front of tool head • Higher visibility of the workpiece achieved by using a newly designed LED lens to make the shadow of bit lighter • With preglow and afterglow functions • 3 brightness settings Increased screw tightening speed ๐ Compared with our current models, increased screw tightening speed has been achieved by increasing the number of impacts in Mode 4 (Max impact mode) ๐ New appearance design the current design has been changed by adding camouflage pattern and more ๐ Light mode • To turn on the light, set F/R change lever in the neutral position and pull the switch trigger. To turn off the light, pull the switch trigger again • The light turns off automatically one hour after turned on ๐ High Power 220 N·m ๐ Genuine solution for high demand industrial users ๐ Having excellent ability to perform heavy-duty continuous tightening; Able to continuously tighten heavy duty screws such as metal fastening screws or lag screws ๐ Multiple operation modes for a wide range of applications; 4-speed power selection plus 6 Assist modes (2 T-modes, 1 Wood mode, 3 Bolt modes) ๐ Improved bolt modes for more convenience in tightening machine screws ๐ Constant speed control maintains fastening torque by minimizing the rotation speed reduction caused by decreased battery capacity ๐ One-touch speed selector provides precise fastening control for a wide range of applications ๐ Variable speed control ๐ Ergonomically designed handle with rubberized soft grip for increased comfort ๐ Reversing switch is conveniently located ๐ Electric brake for maximum productivity ๐ High water-resistance compatible with XPT

Standard Equipments : Belt clip, Hand strap (country-specific)


Technical specifications

Capacity Machine screw M4 - M8
Capacity Standard bolt M5 - M16
Capacity High strength bolt M5 - M14
No Load Speed 0 - 3,700 minˉ¹
Impacts Per Minute (IPM) 0 - 4,600
Max fastening torque 220 N·m
Dimensions (L x W x H) 119 x 86 x 197 mm
Net weight 1.7 - 2.9 kg
Variable Speed
Brake
Reversing

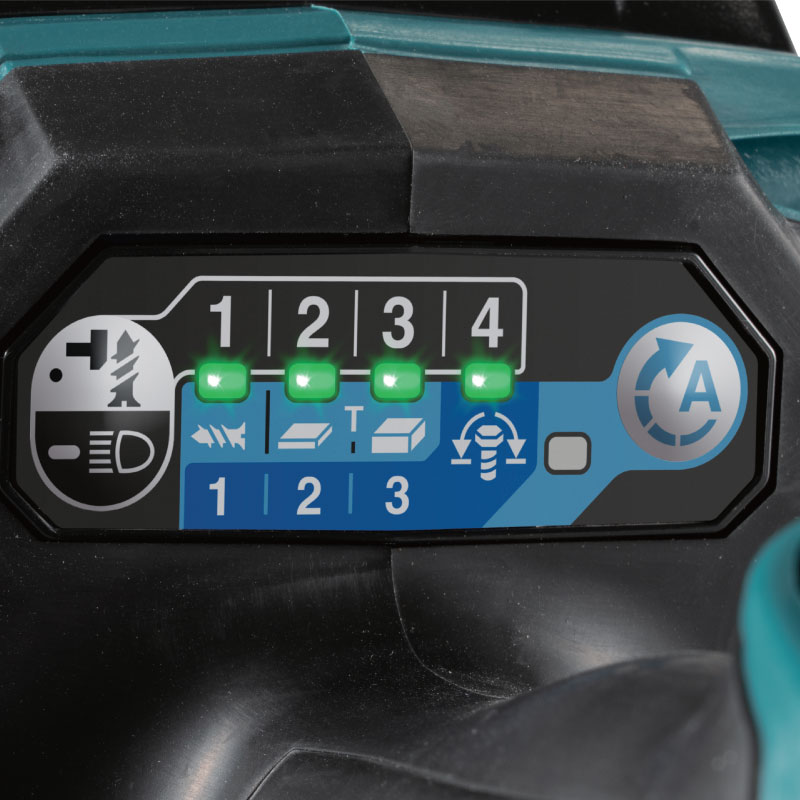

Electronic 4-Speed
Constant Speed
Built-in-Job Light
Carrying Case
