TD001G
Cordless Impact Driver
TD001G
Cordless Impact Driver
40Vmax Cordless Impact Driver 220 N·m
Features
- High Power 220 N·m
- Genuine solution for high demand industrial users
- Having excellent ability to perform heavy-duty continuous tightening; Able to continuously tighten heavy duty screws such as metal fastening screws or lag screws
- Delivers up to 50% higher work speed than DTD171

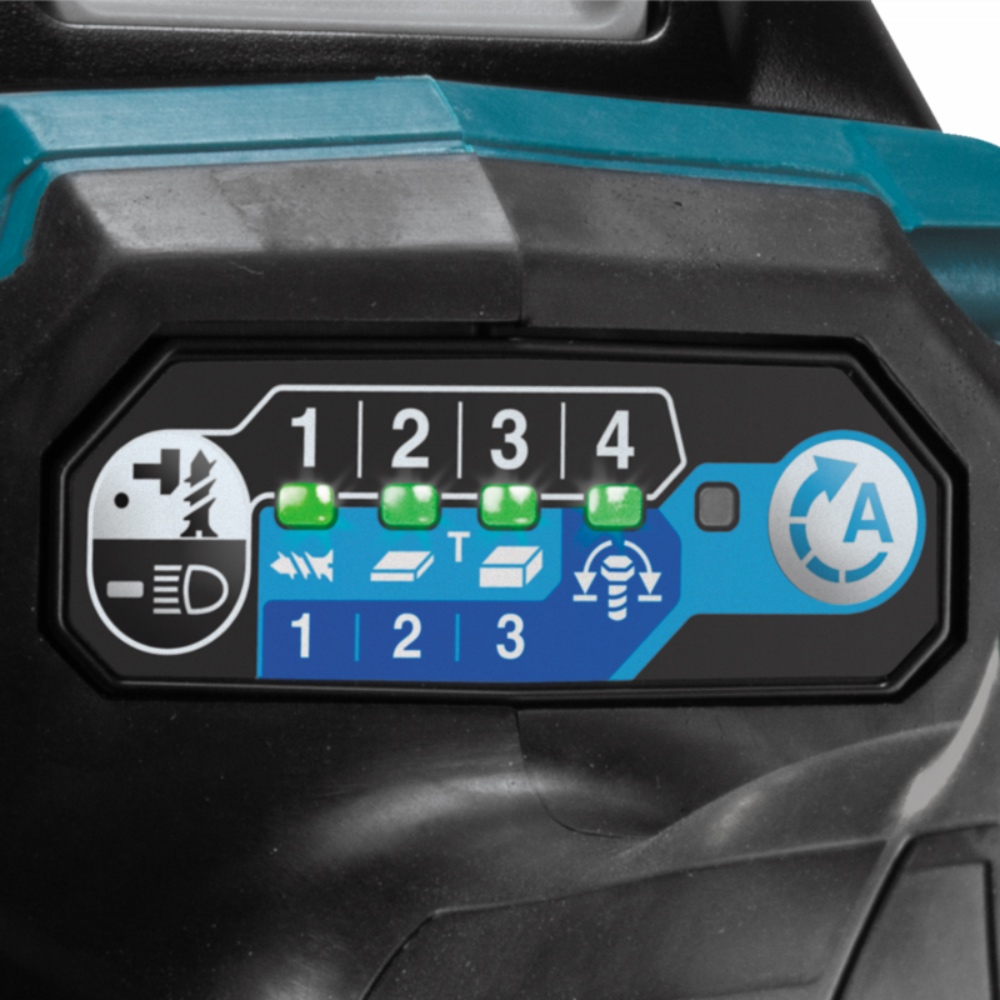

- Multiple operation modes for a wide range of applications; 4-speed power selection plus 6 Assist modes (2 T-modes, 1 Wood mode, 3 Bolt modes)
- Improved bolt modes for more convenience in tightening machine screws
- Constant speed control maintains fastening torque by minimizing the rotation speed reduction caused by decreased battery capacity

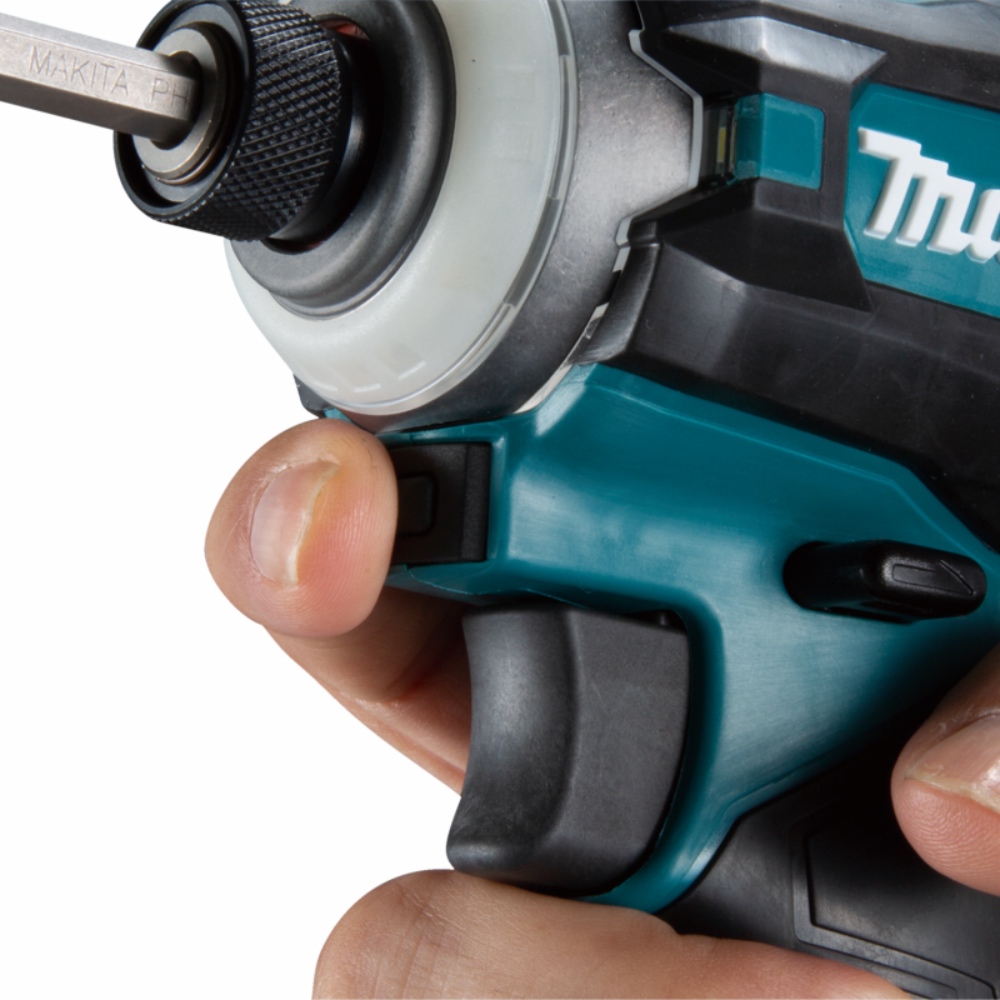

- New one-touch bit installation; In order to minimize the bit from unexpectedly falling off, more effective mechanism has been realized by increasing the spring load of the sleeve holding spring and by adding a coil spring not to increase resistance against insertion of the bit
- One-touch speed selector provides precise fastening control for a wide range of applications
- Enhanced anvil holder rigidity; Material change from Needle bearing to Ball bearing provides reduction of bit wobbling
- Variable speed control by trigger for precise fastening in a wide variety of applications

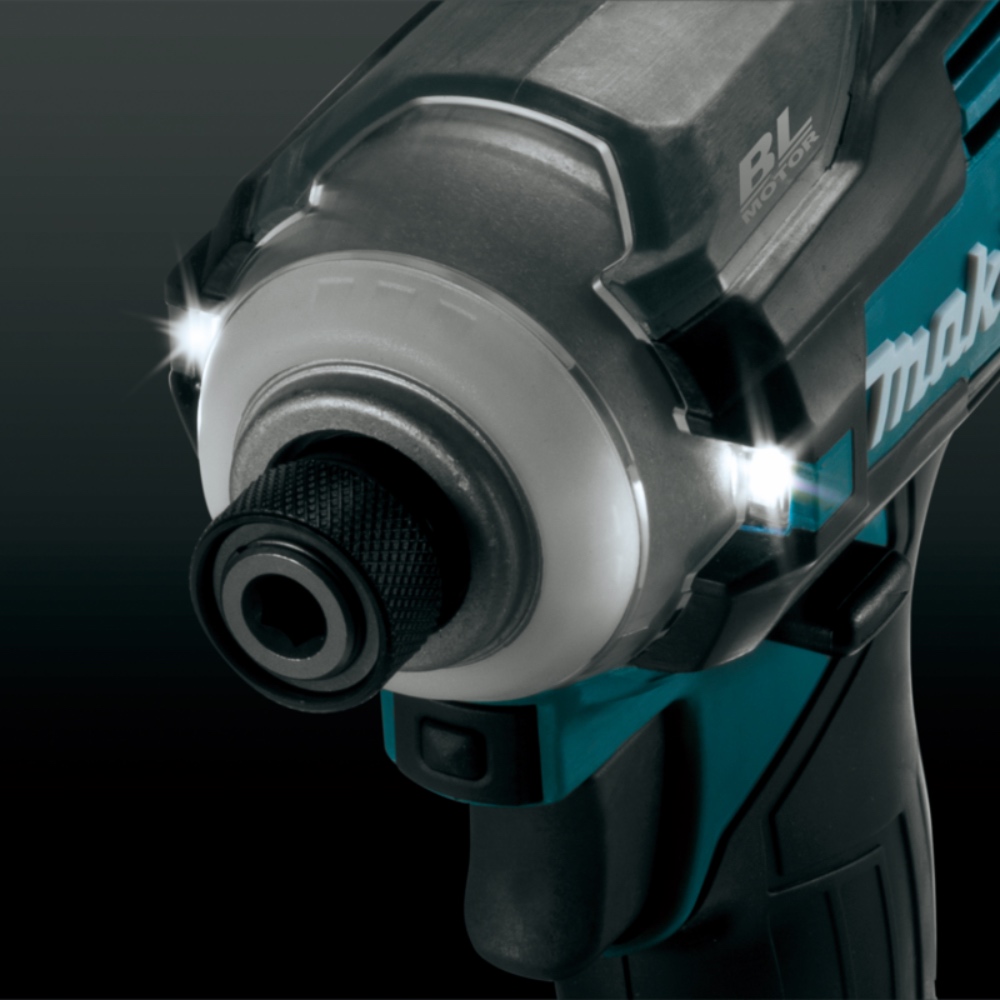

- Built-in LED light illuminates the work area
- Phosphorescent bumper glows in dark places
- Ergonomically designed handle with rubberized soft grip for increased comfort
- Reversing switch is conveniently located
- Electric brake for maximum productivity

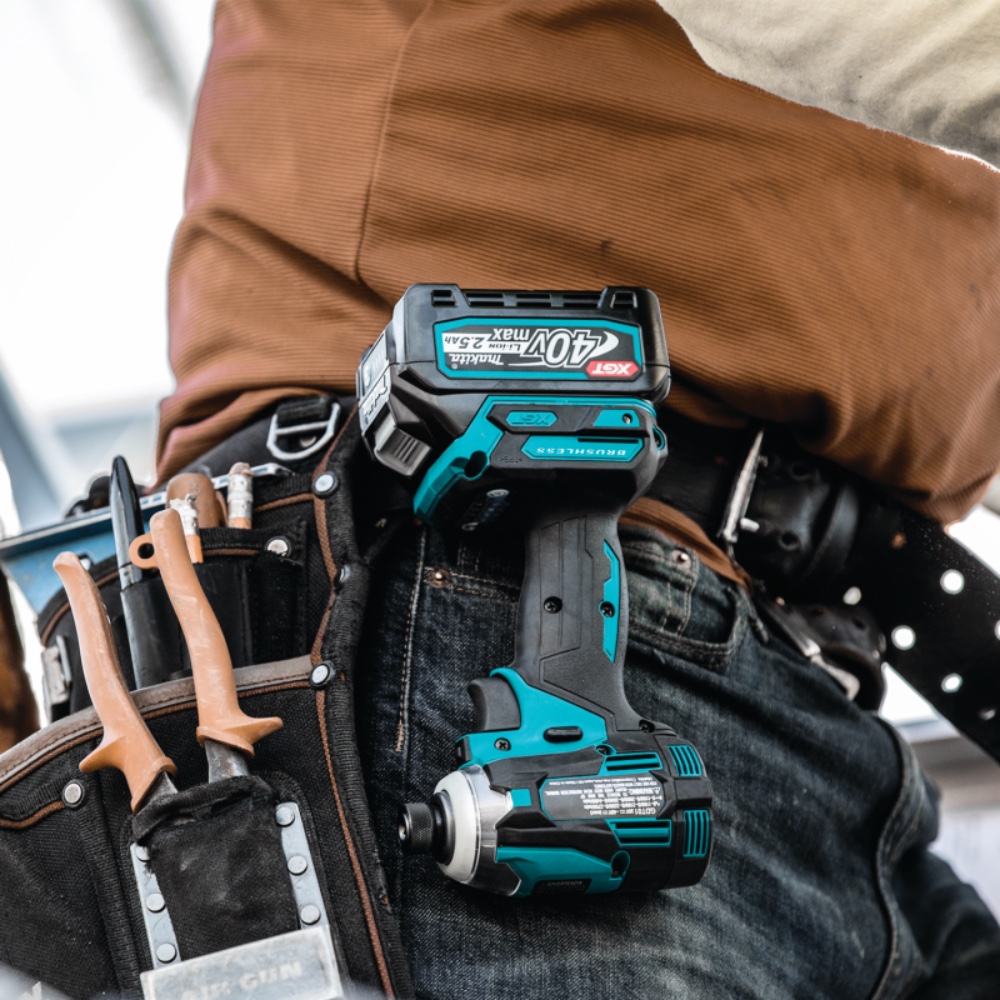

- Durable, reversible belt clip convenient for temporary tool hanging
- High water-resistance compatible with XPT
- Battery protection circuit protects against overloading, over-discharging and over-heating
Standard equipment : Belt clip, Hand strap
Domestic Sales Model
Technical specifications
| Capacity Machine screw | M4 - M8 |
|---|---|
| Capacity Standard bolt | M5 - M16 |
| Capacity High strength bolt | M5 - M14 |
| No Load Speed | 0 - 3,700 minˉ¹ |
| Impacts Per Minute | 0 - 4,400 minˉ¹ |
| Max fastening torque | 220 N·m |
| Dimensions (L x W x H) | 121 x 86 x 195 mm |
| Net weight | 1.7 - 2.9 kg |
