LS1219L
Slide Compound Miter Saw



LS1219L
Slide Compound Miter Saw

Slide Compound Miter Saw 305 mm (12") 1,800 W

  

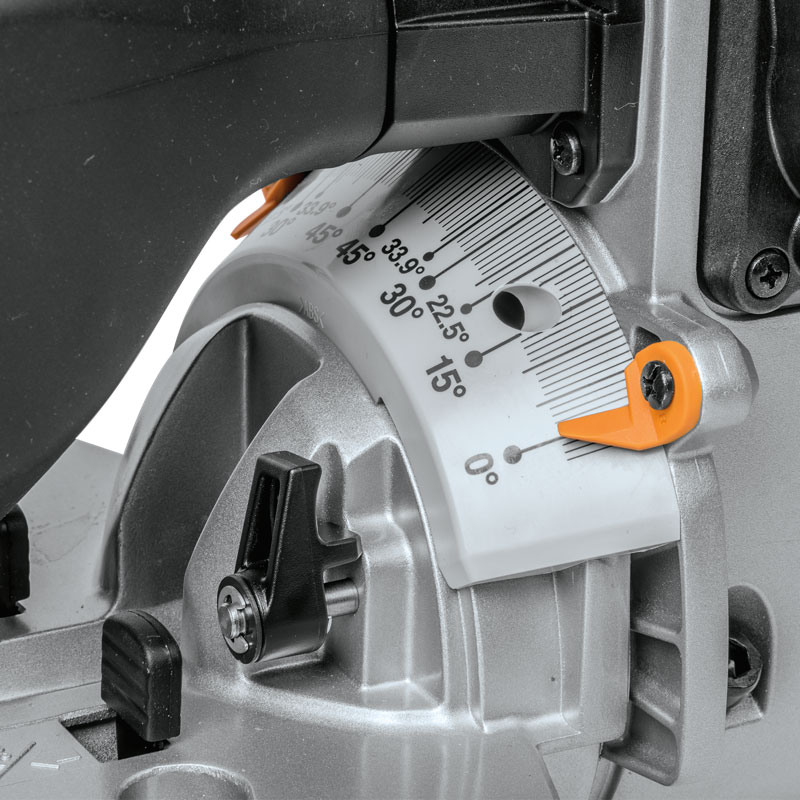

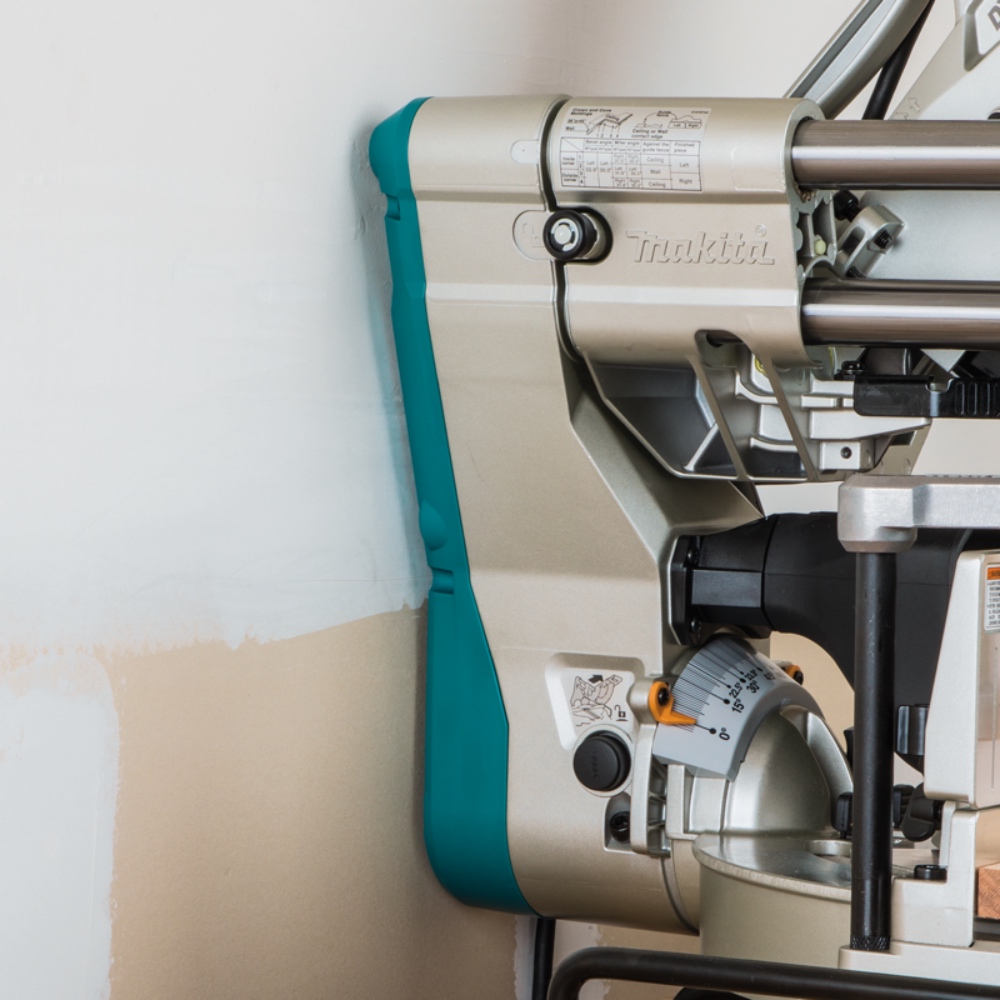

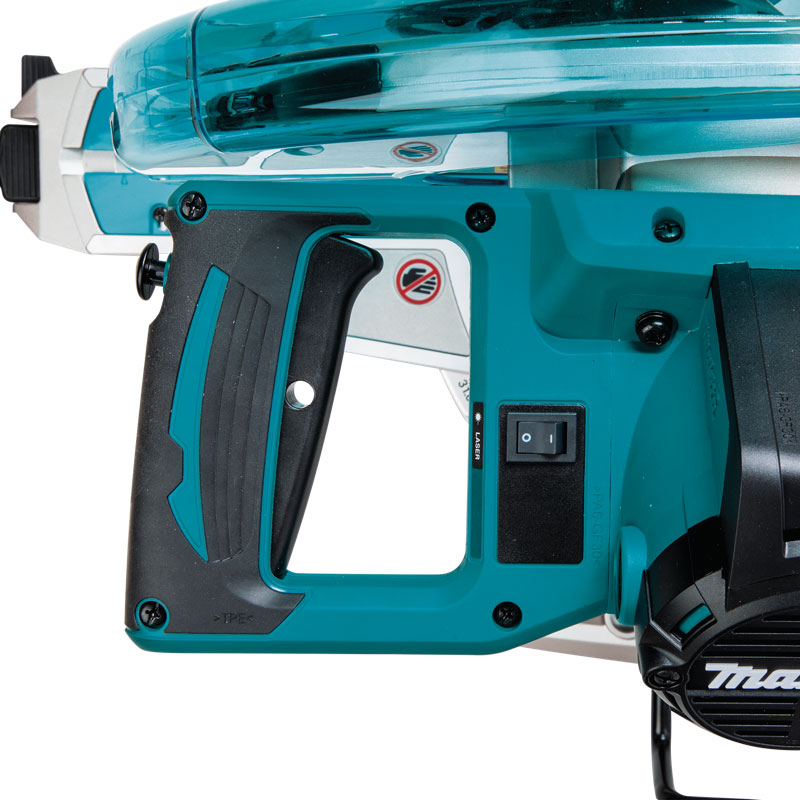

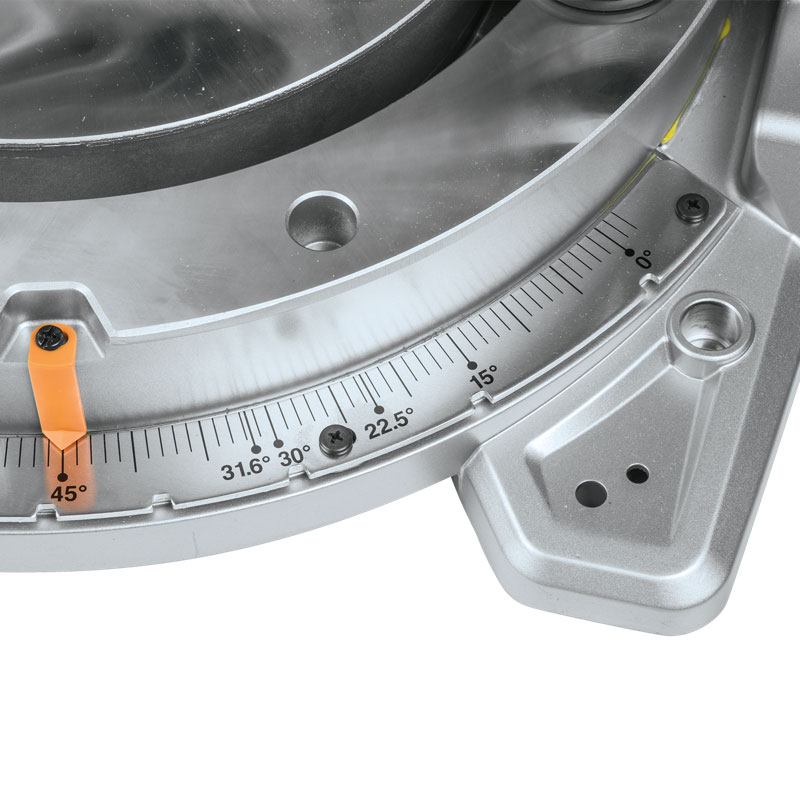

๐ Unique 2-Steel Rail Sliding System Design Allows Operation Flush Against a Wall ๐ Dual dust collection ports provide excellent dust extraction performance ๐ In-front bevel lock for convenient operation ๐ Large turn base supports workpiece securely for increased stability ๐ Integrated guide fences for increased rigidity and high cutting accuracy ๐ Single sliding system enables smooth operation to produce superior cuts ๐ Miters 0-60° left and right; bevels 0-48° left and right ๐ Positive miter stops at: 0°, 15°, 22.5°, 31.6°, 45°, and 60° left or right ๐ Slide lock for locking the sliding movement of the carriage ๐ Holders are provided on both sides of the tool to hold long workpieces horizontally ๐ Factory calibrated class II laser enables accurate alignment of blade and cutting line ๐ Electric brake for maximum productivity and increased operator safety ๐ Soft start suppresses start-up reaction for smooth start-ups and longer gear life ๐ Electronic speed control maintains constant speed under load for smoother, higher quality cutting ๐ Lock-off (2 stage) safety switch for increased operator safety. ๐ Incorporates Deep eXact cutting Technology (DXT) achieved by our consistent pursuit of cutting larger size workpiece but with higher accuracy. ๐ Double insulated

Standard Equipments : TCT saw blade, Vertical vise, Hex wrench, Triangular rule, Dust bag


Technical specifications

Continuous Rating Input 1,800 W
Wheel Diameter 305 mm
Bevel angle 48° L 48° R
Miter Anger 60° L 60° R
Max Cutting Capacity 107 x 363 mm
Max Cutting Capacity 45° 107 x 255 mm
No Load Speed 3,200 minˉ¹
Dimensions (L x W x H) 898 x 664 x 725 mm
Net weight 29.3 kg
Double Insulation
Brake
Constant Speed
Soft Start
Bevel Cutting 45 LR
Dust Collection
