(EN / TH)

LS1017L
Slide Compound Saw

LS1017L
Slide Compound Saw

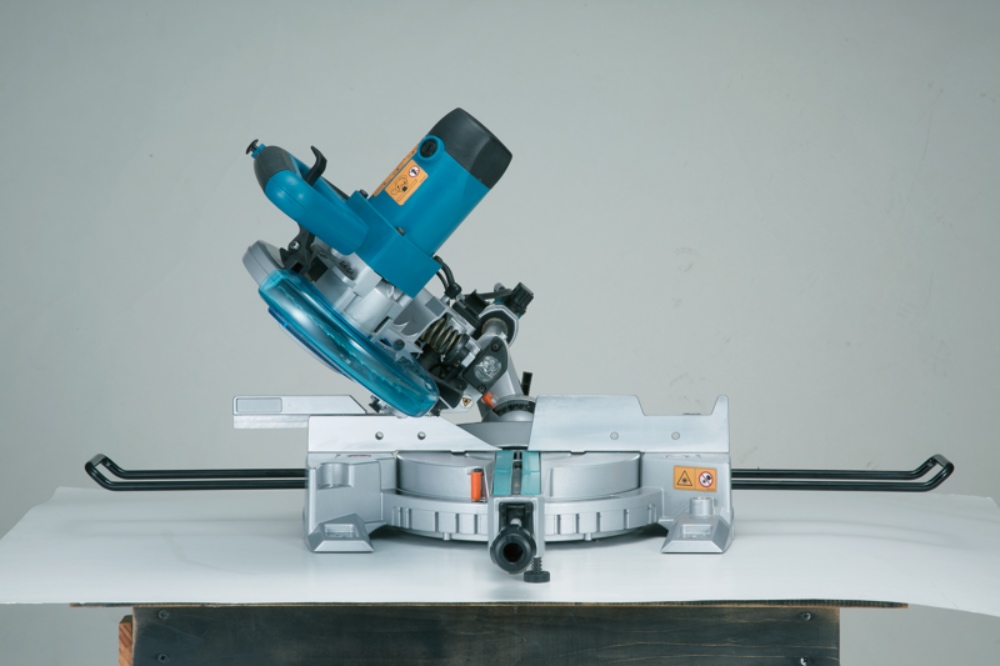

Slide Compound Miter Saw 216 mm (8-1/2") 1,400 W

  

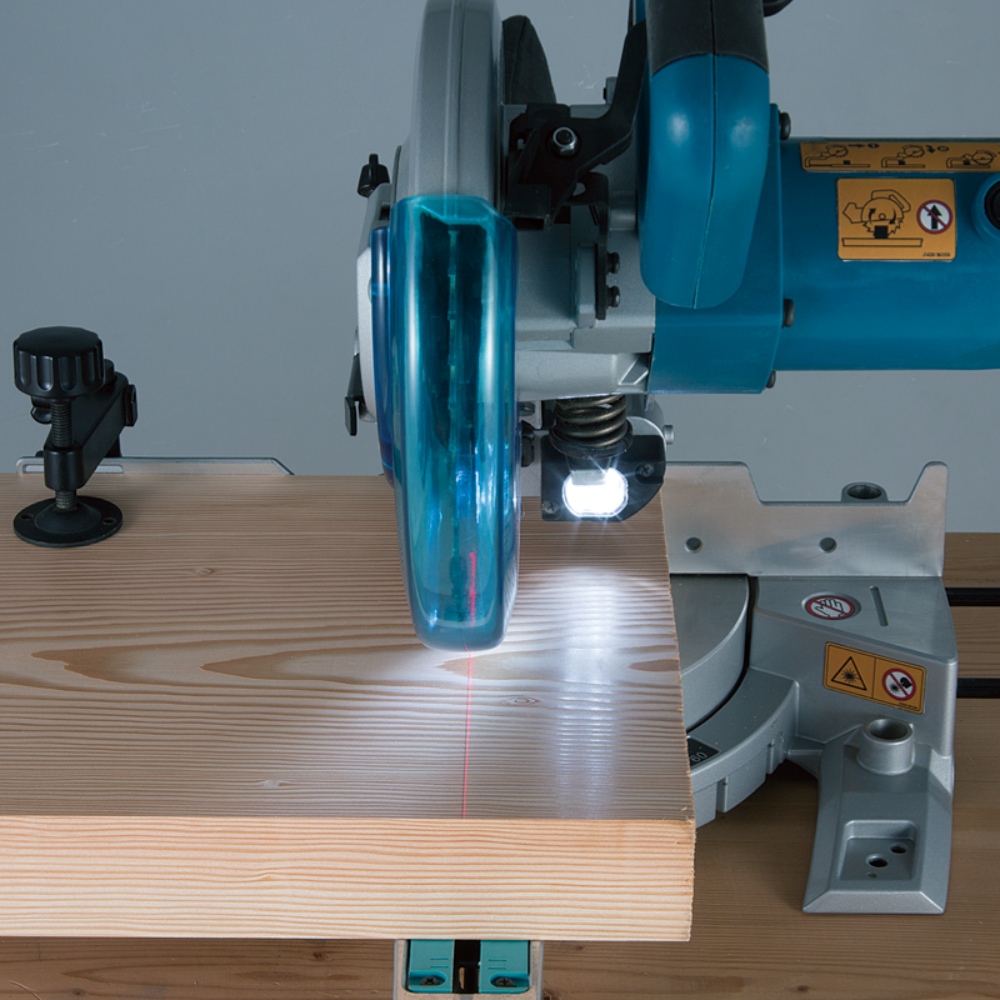

๐ Cuts up to 305 mm (12”) at 90° and 215 mm (8-1/2”) at 45° ๐ High dust extraction rate - Connects directly to Makita vacuum cleaner for a cleaner work area ๐ Powerful 1,400 W direct drive motor requires less maintenance and delivers 5,000 RPM ๐ Miters 0°- 50° left and 0°- 60° right, with positive stops at 0°, 15°, 22.5°, 31.6°, 45° and 50° (left and right) plus 60° (right) ๐ Dual rear handle bevel lock is easily accessible and adjusts 0°- 48° (left) and 0°- 5° (right) with positive stops at 0° and 45° (left) ๐ Linear ball bearing system engineered to deliver "dead-on" accurate cuts ๐ Compact and lightweight for job site portability ๐ Built-in LED light illuminates the line of cut for increased accuracy ๐ Factory calibrated class II laser enables accurate alignment of blade and cutting line ๐ Soft start feature for smooth start-ups ๐ Large precision machined aluminum base supports material for more efficient cutting ๐ Electric brake for maximum productivity and increased operator safety (for some countries) ๐ See-through blade guard system for greater visibility of the line of cut ๐ Includes holders (extension wings) for supporting long work pieces

Standard Equipments : Carbide-tipped saw blade, Dust bag, Triangular rule, Vertical vise, Socket wrench, Hex wrench, Holder


Technical specifications

Continuous Rating Input 1,400 W
Wheel Diameter 216 mm
Bevel angle 48 / 5° L 48 ,5° R
Miter Anger 50 / 60° L 50 , 60° R
Max Cutting Capacity 65 x 305 mm
Max Cutting Capacity 45° 65 x 215 mm
No Load Speed 5,000 minˉ¹
Dimensions (L x W x H) 755 x 450 x 488 mm
Net weight 14.1 kg
Carbon Brush JM23500117
Double Insulation
Brake
Soft Start
Bevel Cutting L45 R5
Laser Marker
Dust Collection
Built-in-Job Light
