LC1230

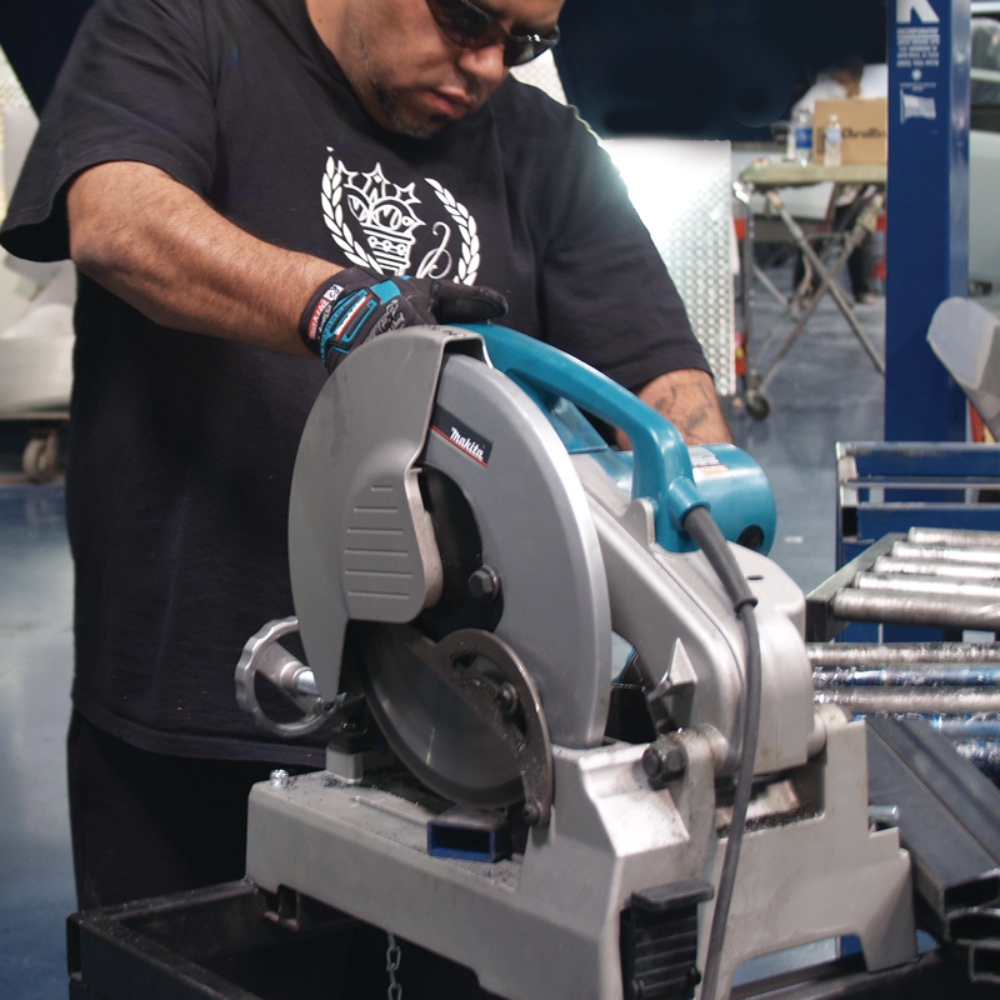

Metal Cutting Saw

LC1230
Metal Cutting Saw

Metal Cutting Saw 305 mm (12") 1,750 W

  

๐ For Cutting in Pipe, Angle Iron, Conduit and More ๐ Carbide-tipped blade lasts 50x longer than abrasive wheels; cuts clean, accurate and virtually burr-free ๐ Quick release vise for secure material retention and fast, repeated cut-offs ๐ Lock-off button for user convenience ๐ Quick release support fence adjusts 0-45° for miter cutting ๐ Shaft lock for easy blade changes with just one wrench ๐ Powerful 1,750W motor for the most demanding applications ๐ 4x faster cutting in light pipe, angle iron, tubing, conduit and channel than abrasive cut-off saws ๐ D-shape handle for user comfort ๐ Socket wrench stores on base for convenient blade changes ๐ Shavings collection tray for easy waste disposal and a cleaner work environment ๐ Large cast aluminum base for stability ๐ Externally accessible brushes for greater serviceability ๐ Maximum cutting depth of 115 mm (4-1/2") with carbide tipped blade ๐ Double insulated

Standard Equipments : Carbide-tipped saw blade, Socket wrench


Technical specifications

Continuous Rating Input 1,750 W
Blade diameter 305 mm
Wheel Diameter 305 mm
Hole diameter 25.4 mm
Max Cutting Capacity 115 mm
No Load Speed (RPM) 1,300
Dimensions (L x W x H) 516 x 306 x 603 mm
Net weight 19.3 kg
Carbon Brush 203
Double Insulation
