(EN / TH)

KP0800

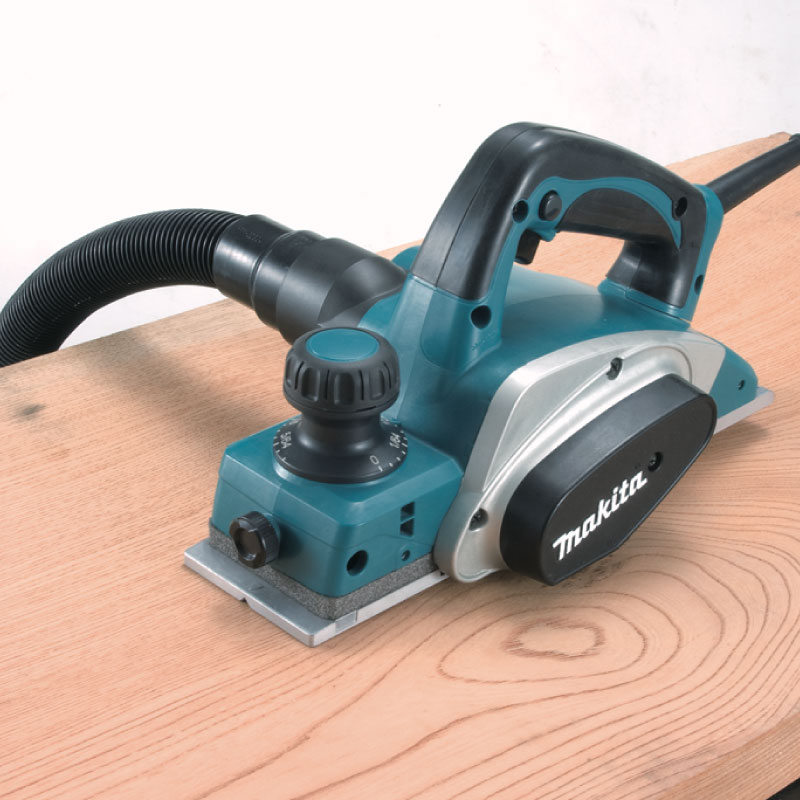

Power Planer

KP0800
Power Planer

Planer 82 mm (3-1/4") 620 W

  

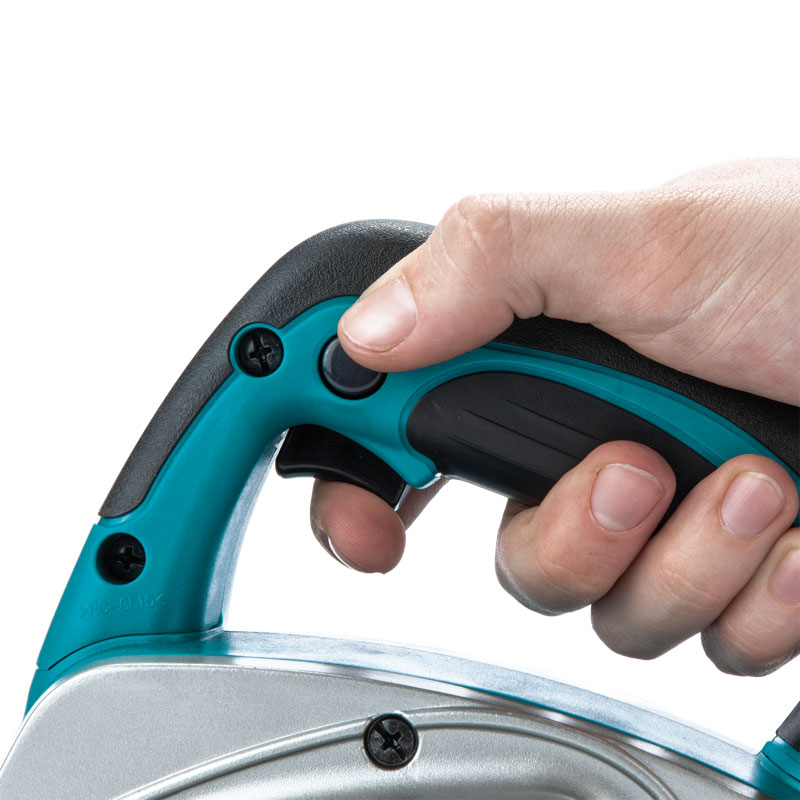

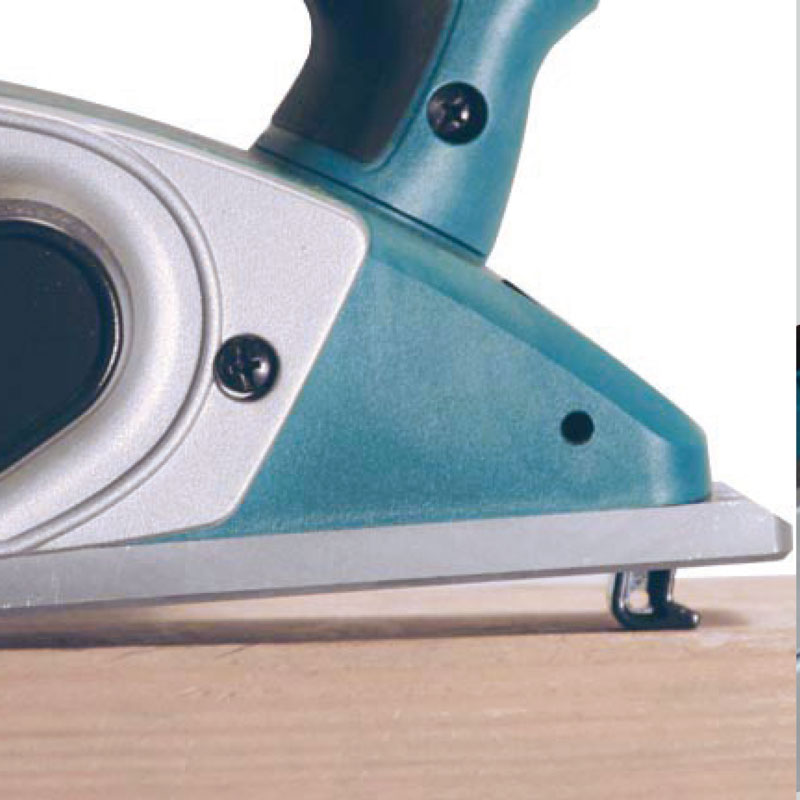

๐ Planes up to 82 mm (3-1/4") wide and 2.5 mm (3/32") deep in a single pass ๐ Two-blade cutter head with 17,000 RPM delivers smooth finish and fast stock removal ๐ Spring-loaded stand elevates the base to protect the blades and workpiece ๐ Easy blade setting system for fast blade installation ๐ Precision machined aluminum base for planing accuracy ๐ Equipped with double edge carbide blades for added performance ๐ Rigid die-cast aluminum housing with all-ball bearing construction for longer tool life ๐ Machined aluminum and balanced planer drum for reduced vibration and added durability ๐ Lock-on button for continuous operation ๐ Click depth adjustment knob with easy-to-read scale with settings from 0 mm (0") to 2.5 mm (3/32") (0.1 mm increments) for precise depth adjustment ๐ Ergonomically centered balance with rubberized front and rear handles for added comfort ๐ High quality poly-v belt provides added durability ๐ Can be equipped with large, high speed steel blades (optional accessory) ๐ Double insulated

Standard Equipments : Planer blade, Blade gauge, Guide rule, Socket wrench, Dust nozzle


Technical specifications

Continuous Rating Input 620 W
Planing Width 82 mm
Planing Depth 2.5 mm
Shiplapping 9 mm
No Load Speed 17,000 minˉ¹
Dimensions (L x W x H) 285 x 158 x 158 mm
Net weight 2.8 kg
Carbon Brush 411
Double Insulation
Dust Collection
