2012NB
Planer

2012NB
Planer

Planer 304 mm (12") 1,650 W

  

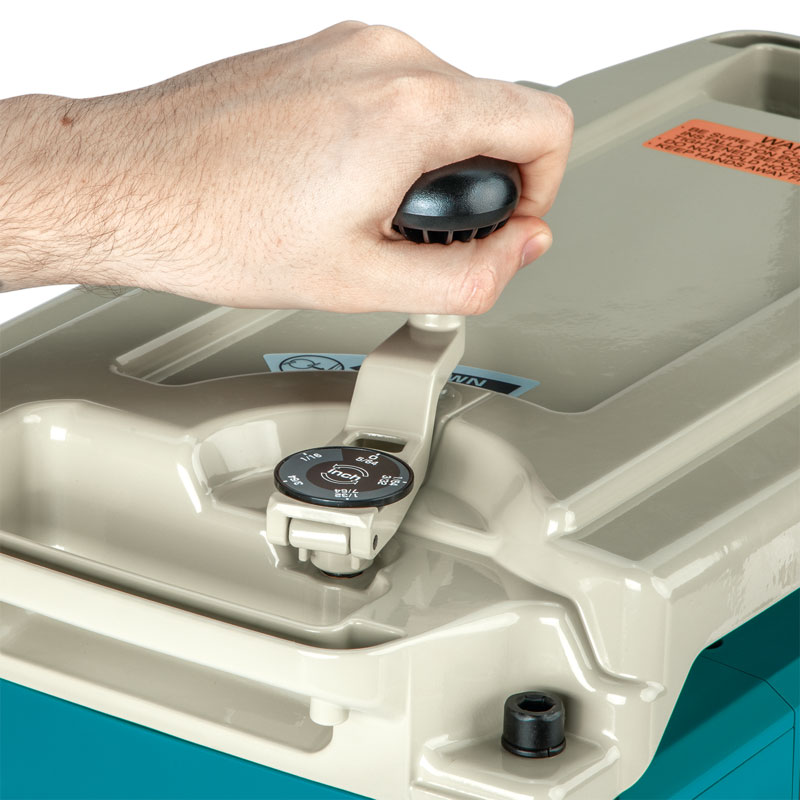

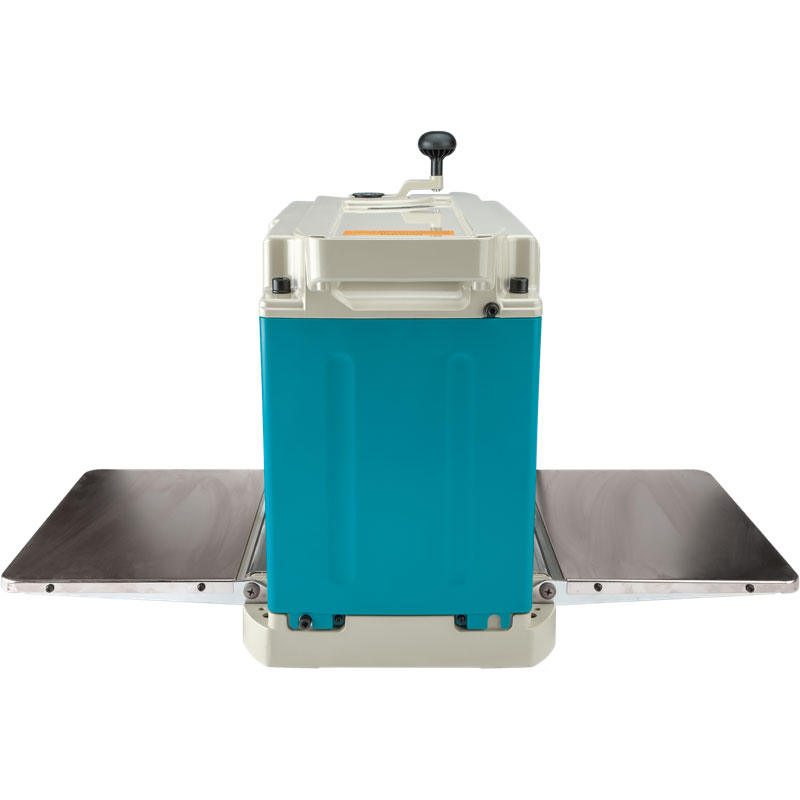

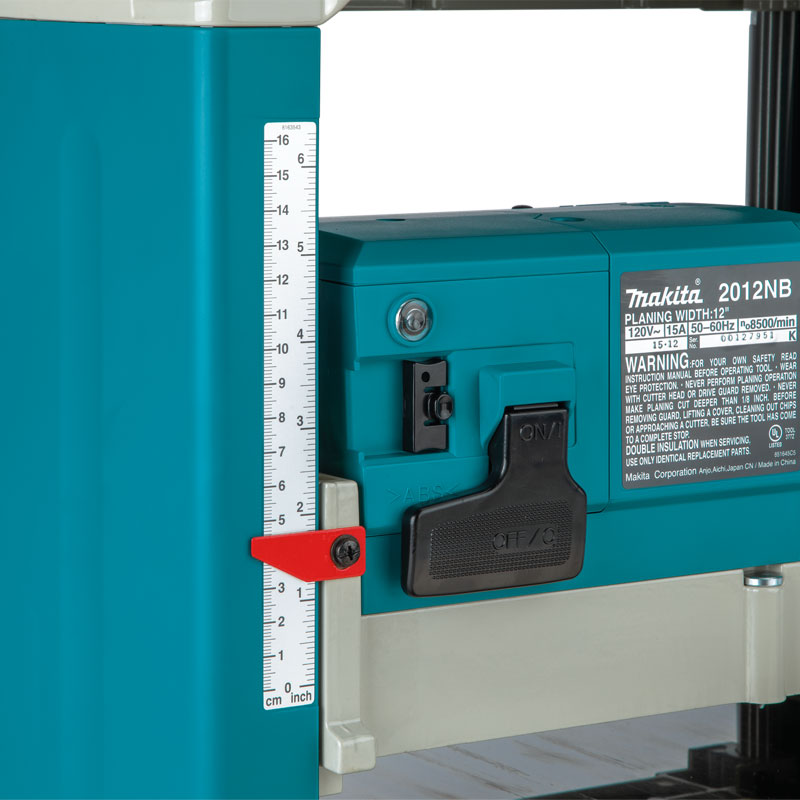

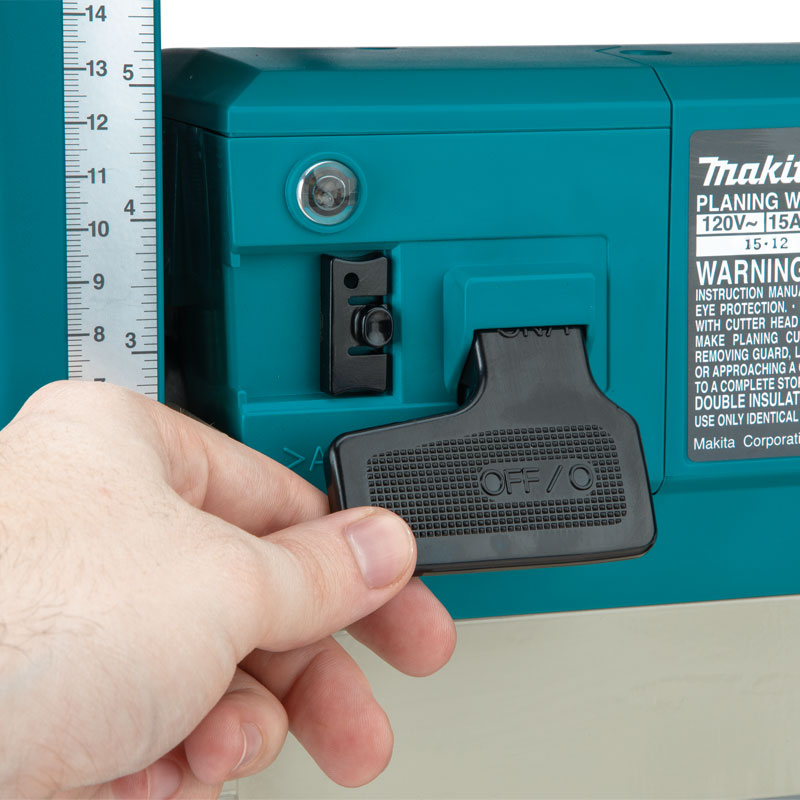

๐ Automated Head Clamp Eliminates Snipe ๐ Compact with less weight for easy transporting to the jobsite ๐ Engineered for faster, easier blade changes ๐ Low noise (83dB) for operator comfort ๐ 4-post design and diagonal cross supports for stability ๐ Large table extensions to support the workpiece ๐ Fully adjustable depth stop for repeat cuts ๐ Powerful 1,650W motor for improved performance ๐ L.E.D. light indicates that the planer is plugged into the power source ๐ Large and easy-to-operate on/off paddle switch ๐ Double edge planer blades ๐ Easily adjustable cutting depth for precision planing ๐ Detachable tool box for storage of the standard equipment ๐ Optional dust hood enables dust collection system to be connected to planer ๐ Double insulated

Standard Equipments : Socket wrench, Hex wrench, Magnetic holder


Technical specifications

Continuous Rating Input 1,650 W
Planing Width 304 mm
Max cutting depth 0-150 : 3 / 150-240 1.5 mm
Feed rate/min. 8.5 m
Table size (L x W) 771 x 304 mm
No Load Speed 8,500 minˉ¹
Dimensions (L x W x H) 483 x 771 x 401 mm
Net weight 27.1 - 27.6 kg
Carbon Brush 153
Double Insulation
