SK105D
Rechargeable Red Cross Line Laser
SK105D
Rechargeable Red Cross Line Laser
12V max Rechargeable Red Cross Line Laser
๐ Up to 40 hours of continuous illumination in high visibility mode with BL1041B ๐ Line visibility range up to 25 m / 80 m (with Receiver) ๐ Pendulum lock enables slope incline applications for increased versatility; Offers added protection of laser diode during transport and storage ๐ Handy and accurate self-leveling crossline laser (crossline/horizontal/vertical) ๐ Brightness selection: 2 Modes (Bright mode / Eco mode) ๐ Accuracy +/- 3 mm @ 10 m ๐ Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions (IP54 rated for body) ๐ Self-leveling is correctable up to 4° of slope allowing operation on uneven surfaces ๐ Recessed laser windows are highly protected from fracture damage in slot positions for increased durability ๐ Horizontal aligning: Convenient way to transfer reference points from one wall to another ๐ Vertical aligning: The simple way to ensure that walls, floor, tiles, joints precisely meet one another ๐ Allows for attachment to a tripod
Standard Equipments : Soft bag, Adapter, Target plate
Technical specifications
Measuring range | 25 m |
---|---|
Measuring range w/ detector | 80 m |
Leveling accuracy | +/- 3 mm / 10 m |
Self-leveling range | 4 |

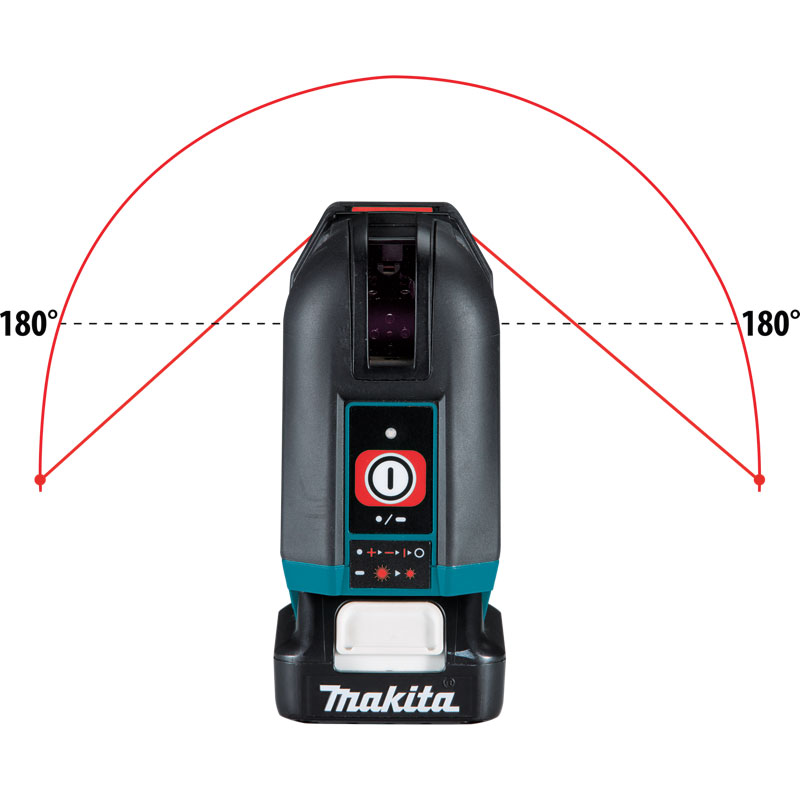

Laser fan angle Horizontal | 180° |

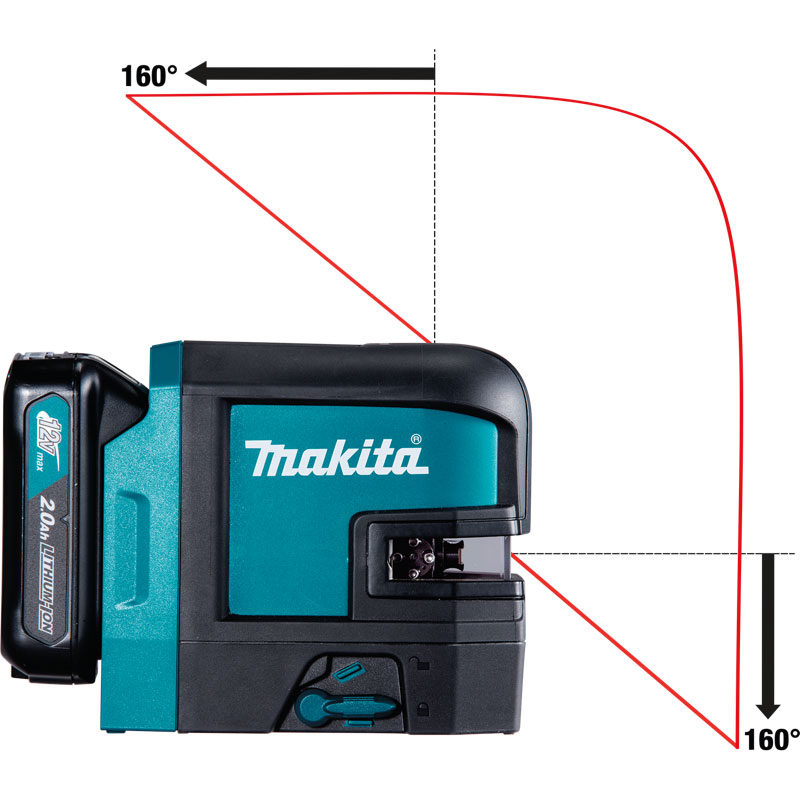

Laser fan angle Vertical | 160° |

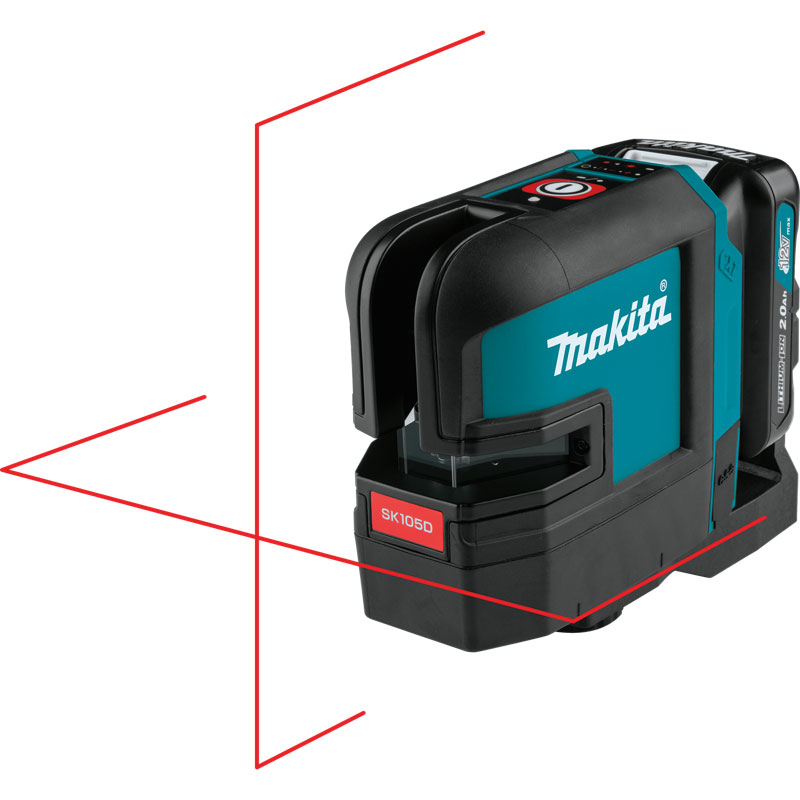

Number of laser lines | 2 (1V1H) |
Laser type | laser class 2: 635 nm |
Operating time (approx.) | 15 - 40 hours |
Dimensions (L x W x H) | 138 x 64 x 102 mm |
Net weight | 0.67 - 0.84 kg |
